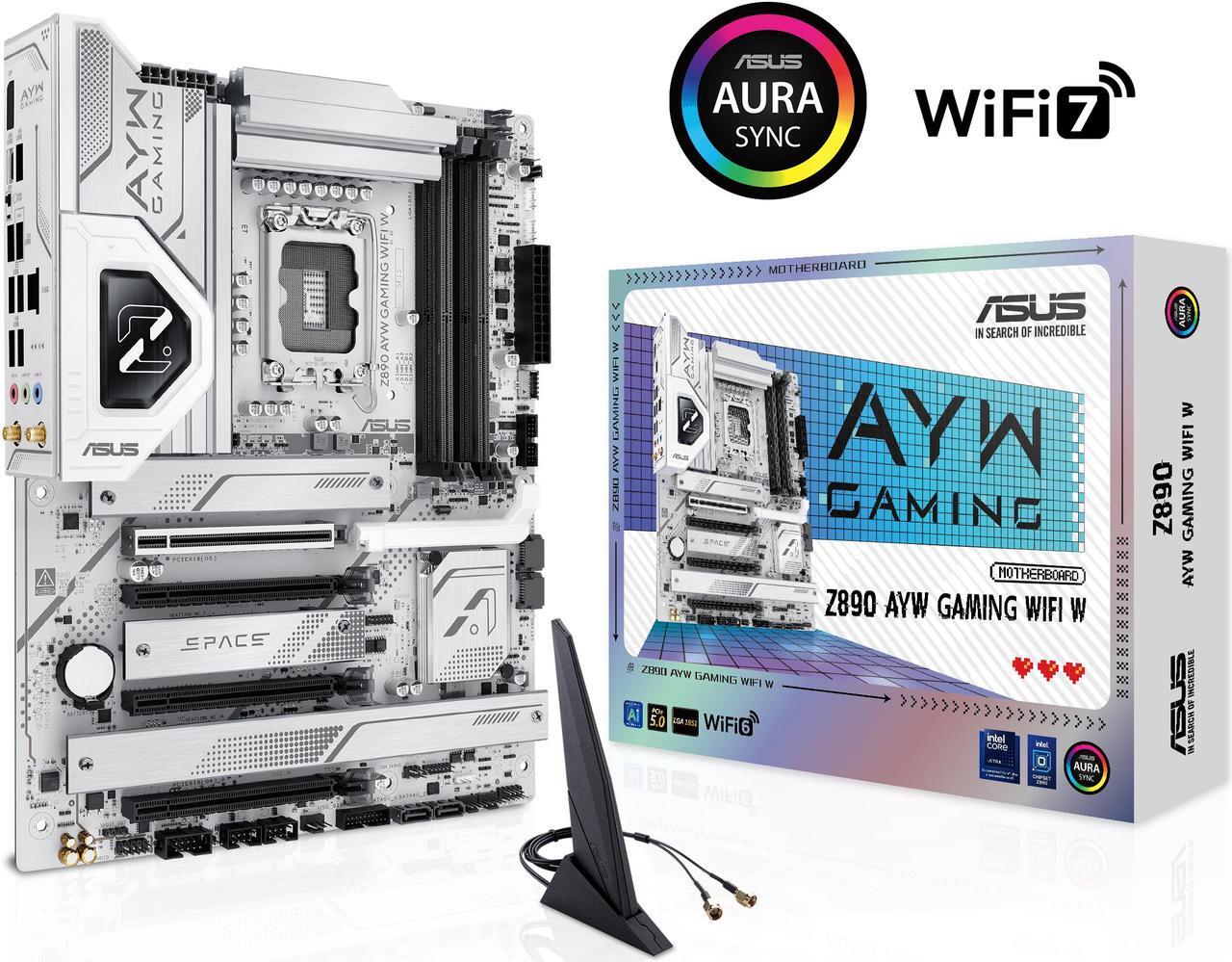

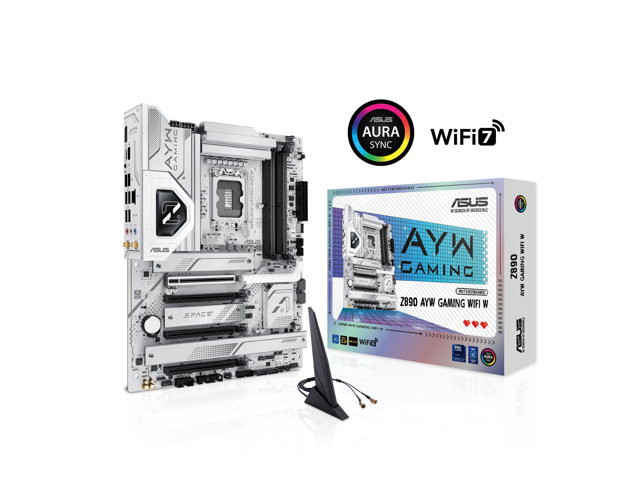

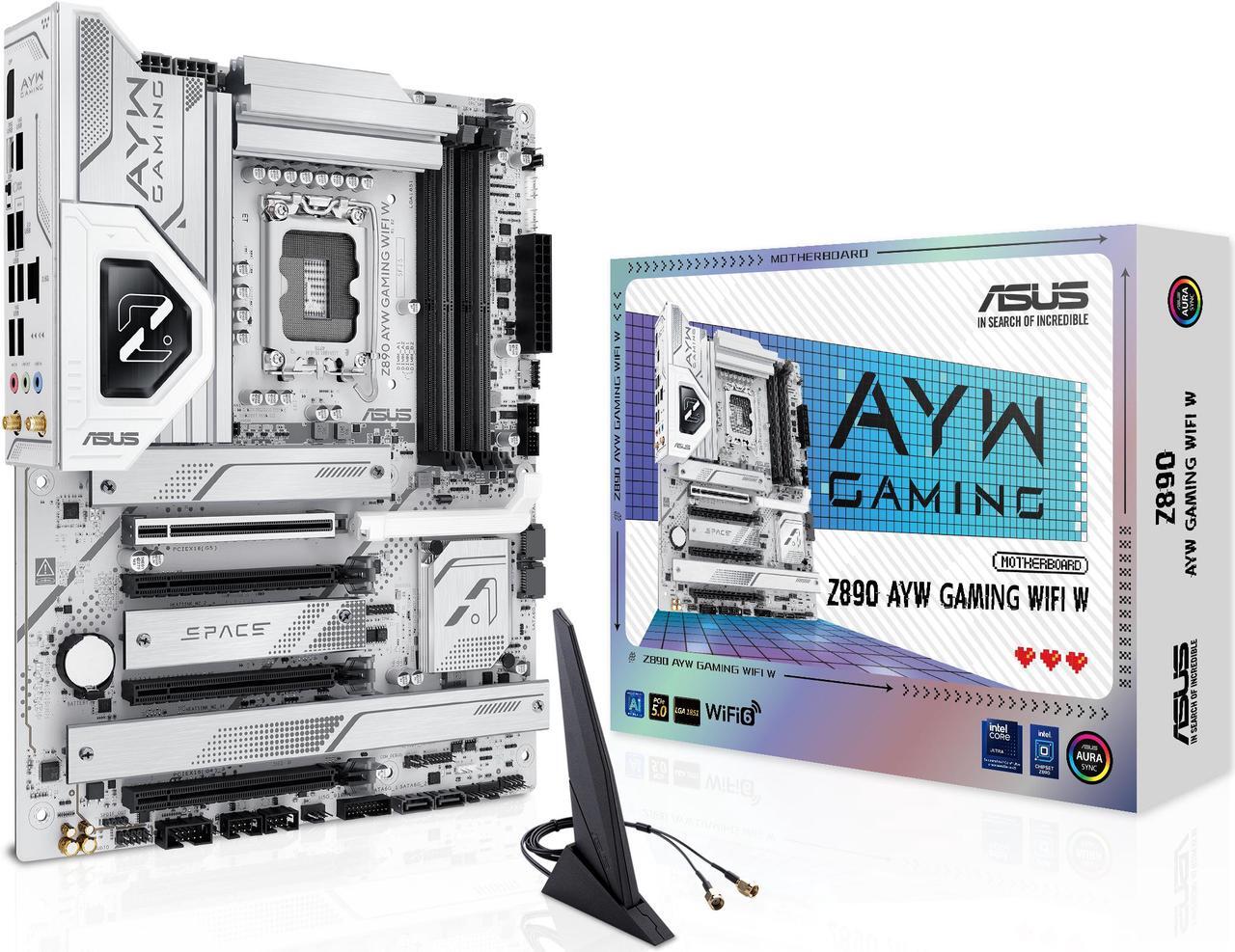

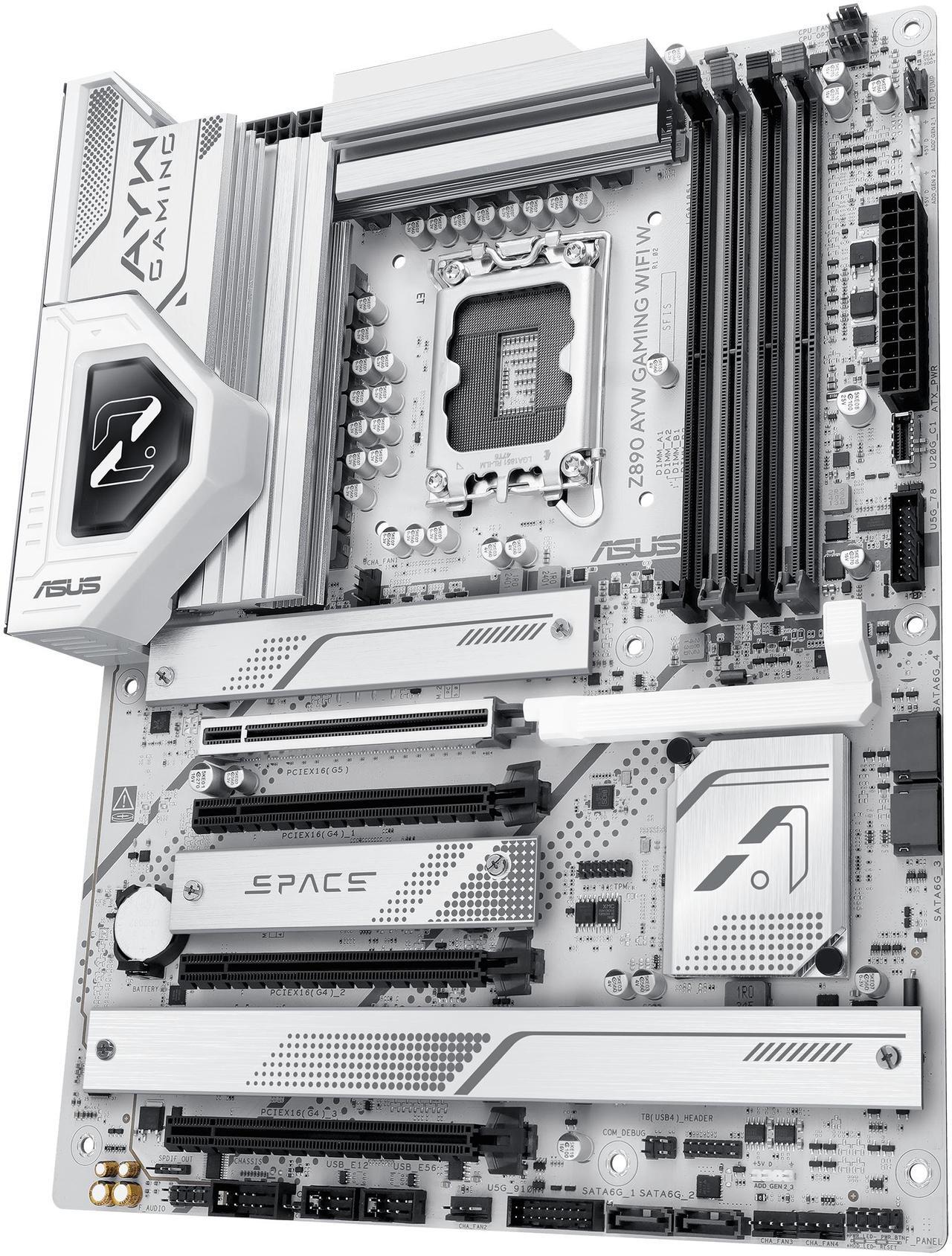

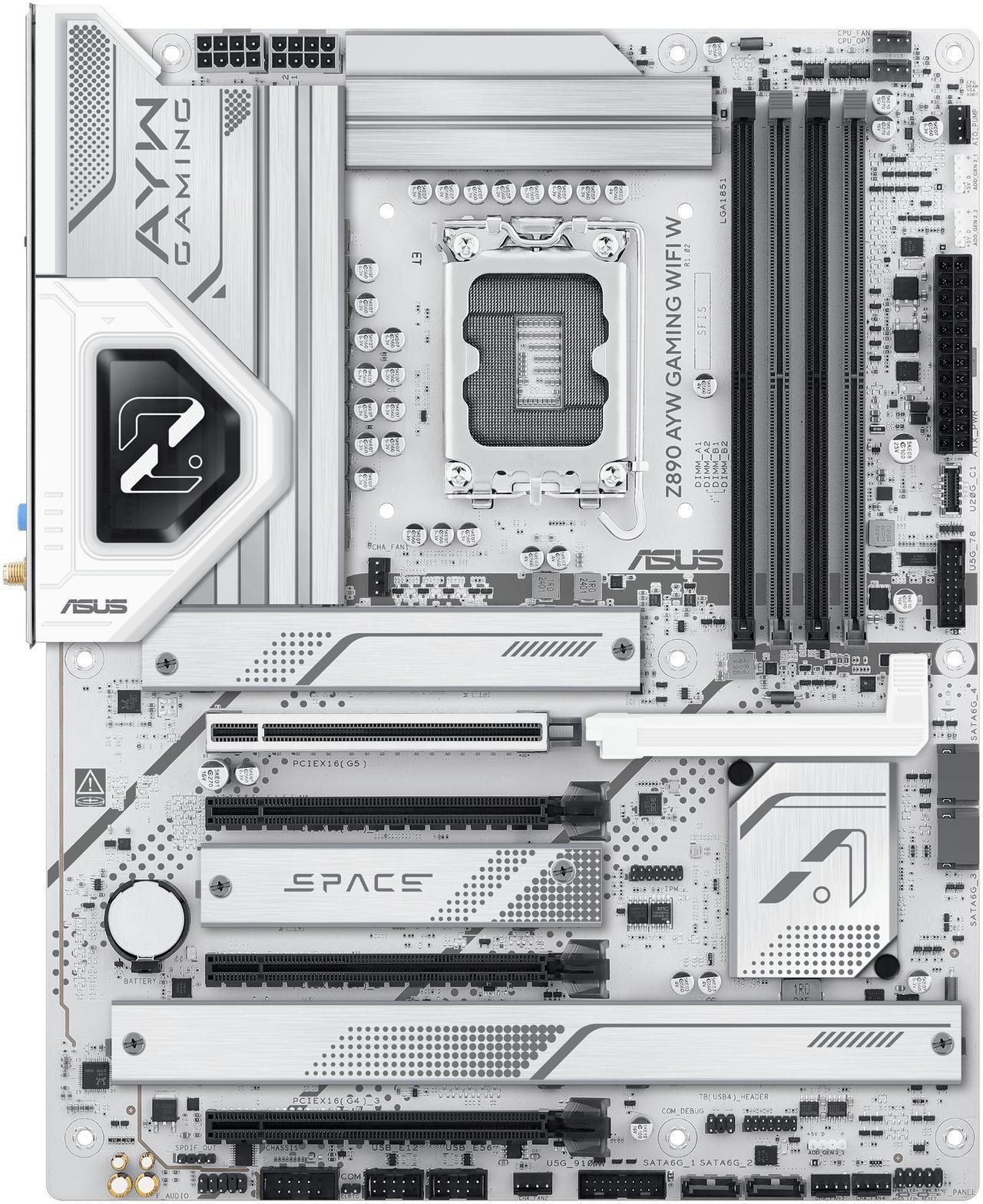

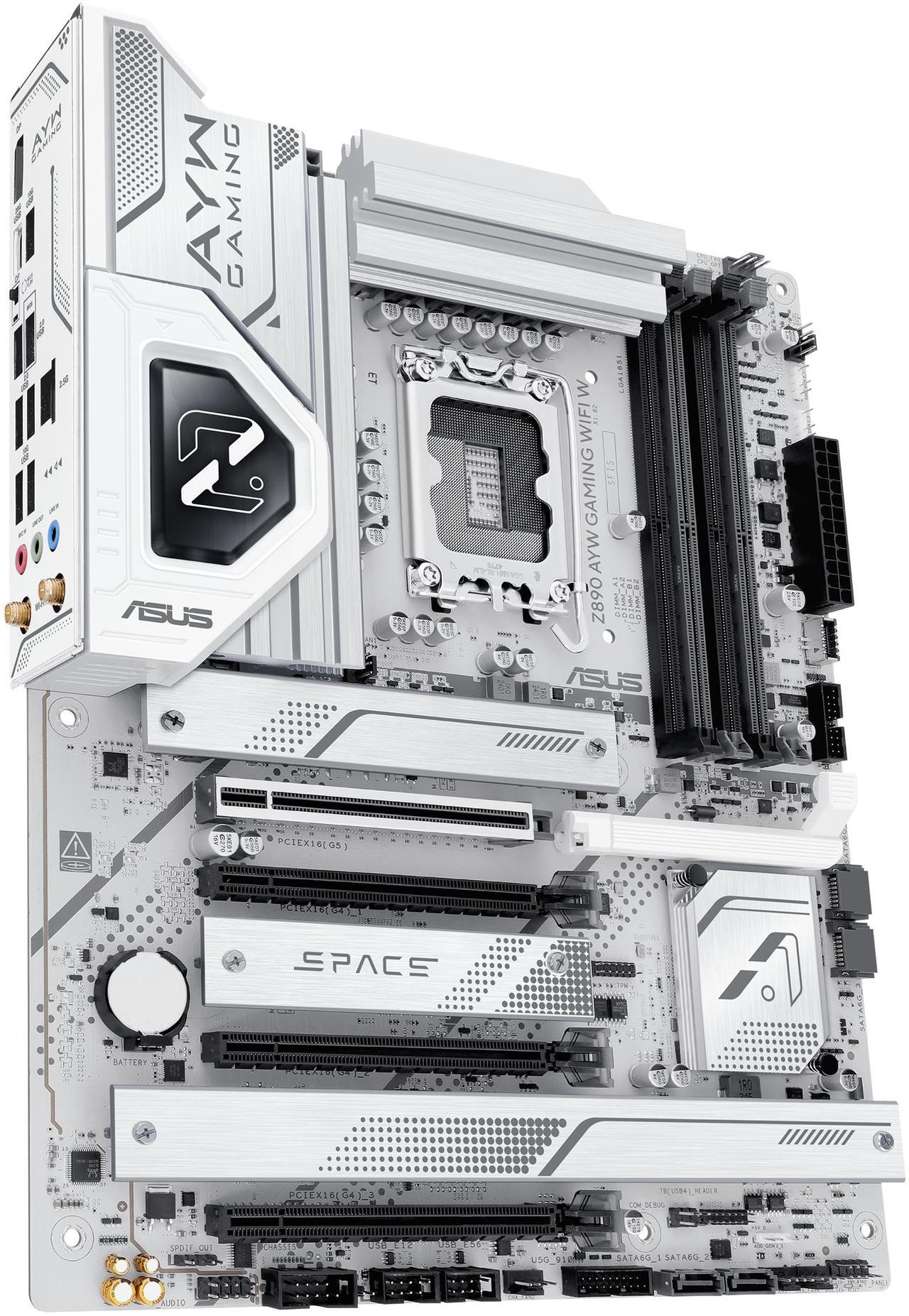

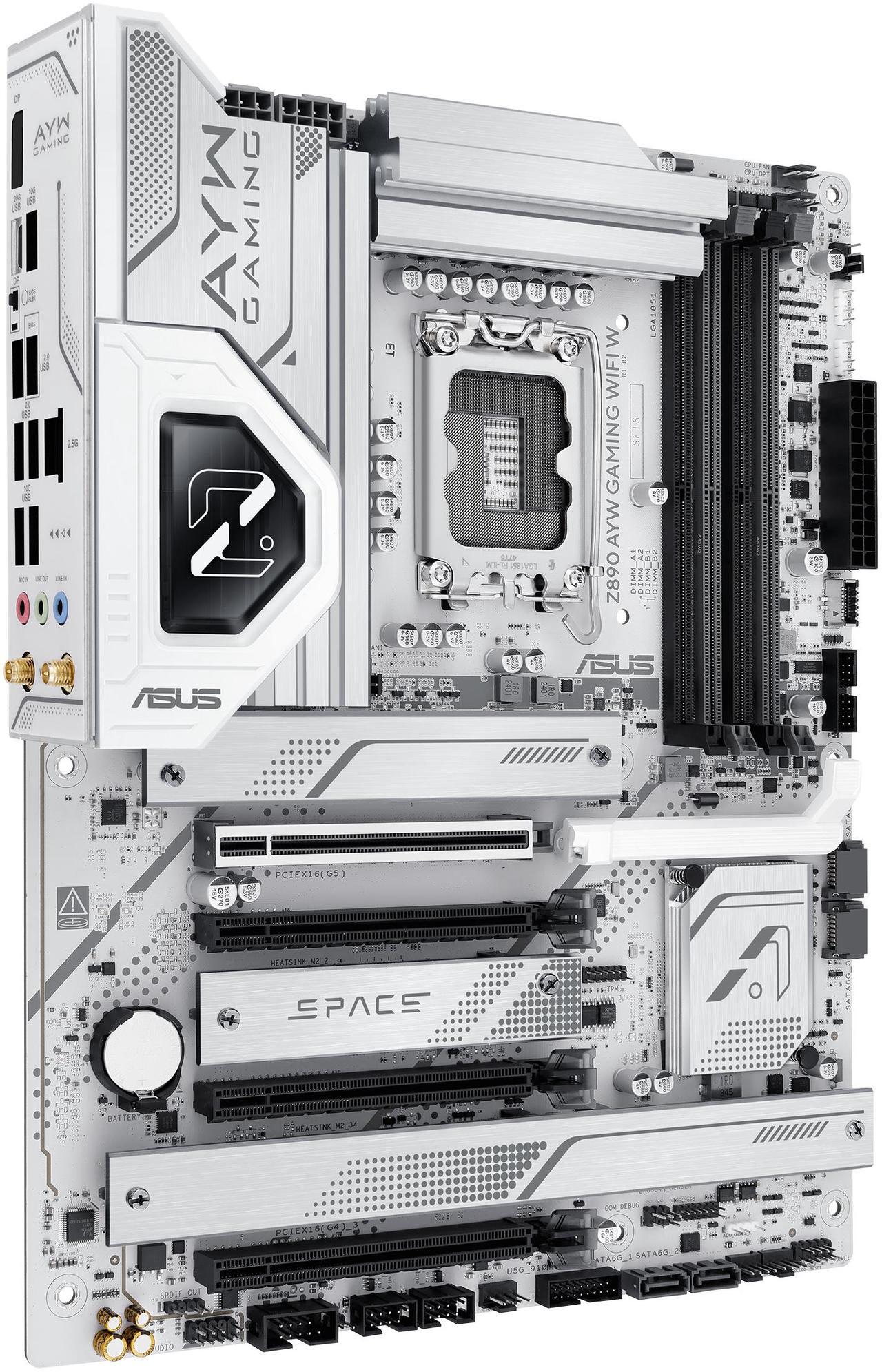

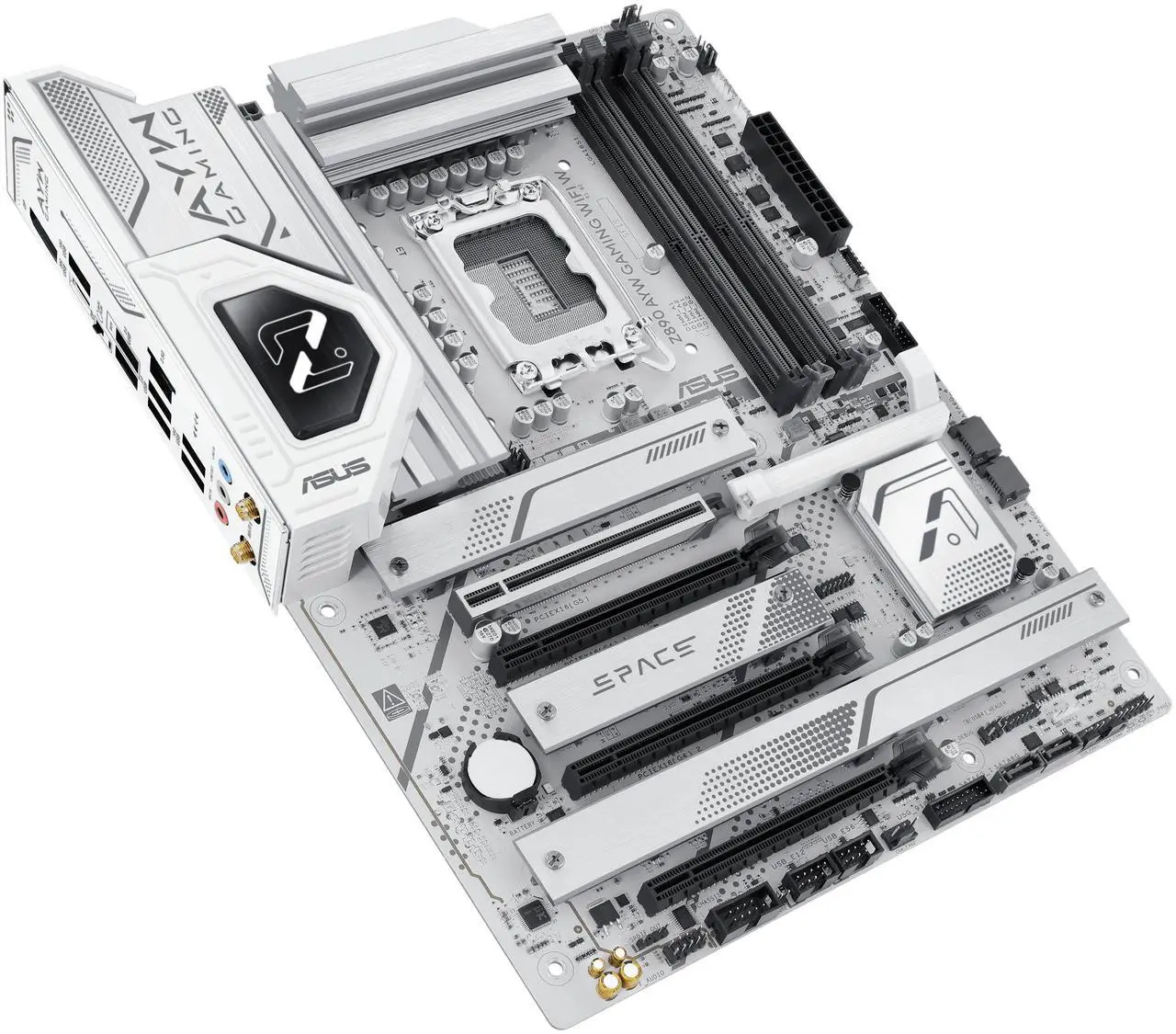

ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN
Robust Power Solution: 12+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory, Wi-Fi 6, PCIe 5.0, rear USB 20Gbps Type-C, front panel USB 20Gbps Type-C with up to 30W PD/PPS Fast-charge and USB Wattage Watcher, Thunderbolt (USB4) header support
Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with cooling solutions
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Dashboard, Q-LED, BIOS FlashBack button, BIOS FlashBack LED and pre-mounted I/O shield
Support Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Onboard Audio
Audio Channels
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth v5.3
Rear Panel Ports

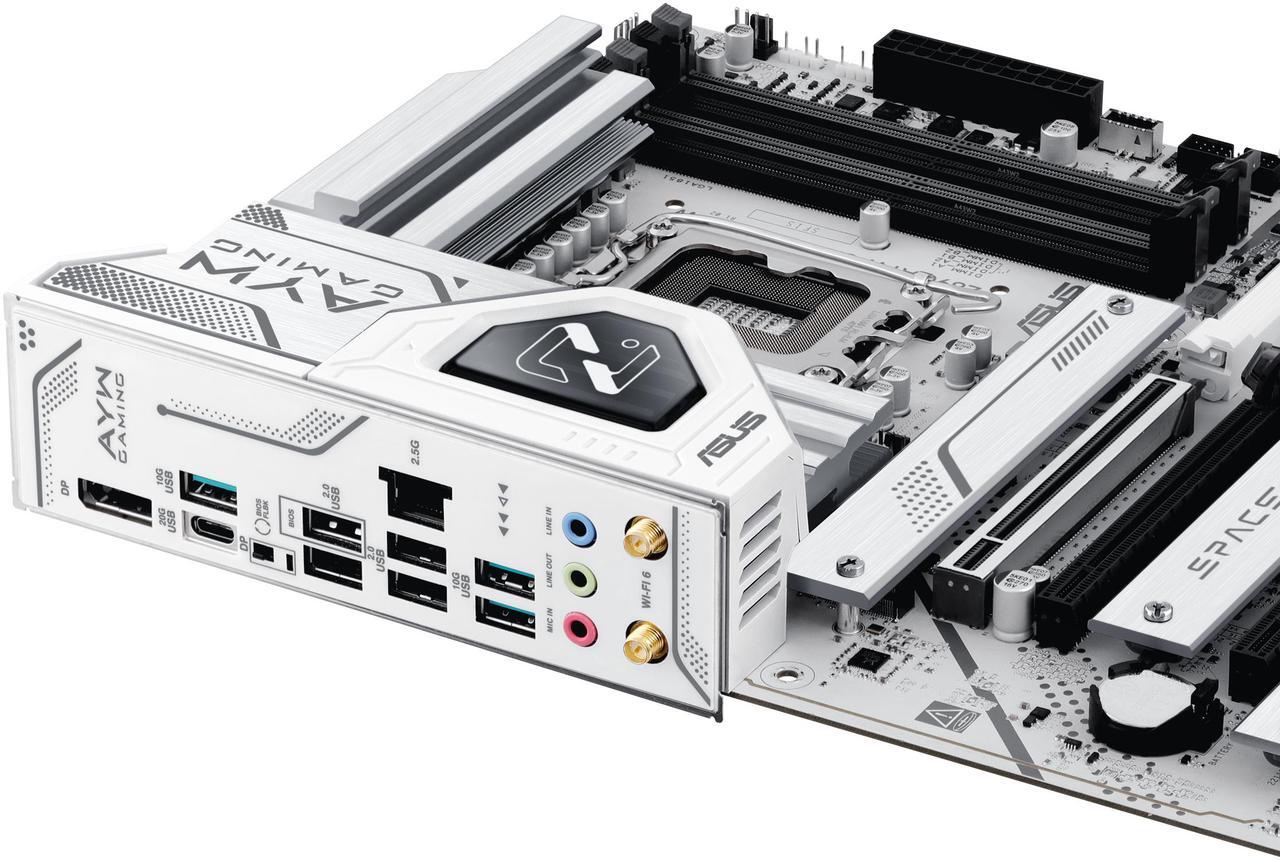

Back I/O Ports

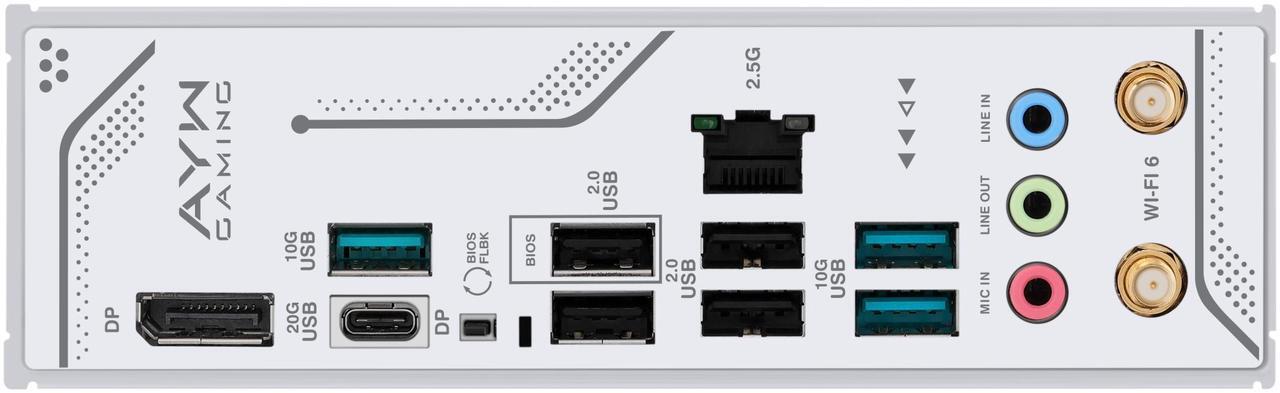

1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) Header
Software Feature
BIOS Feature
256(128+128) Mb Flash ROM, UEFI AMI BIOS
Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Windows 11
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors
Features
Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 and PPS
Packaging

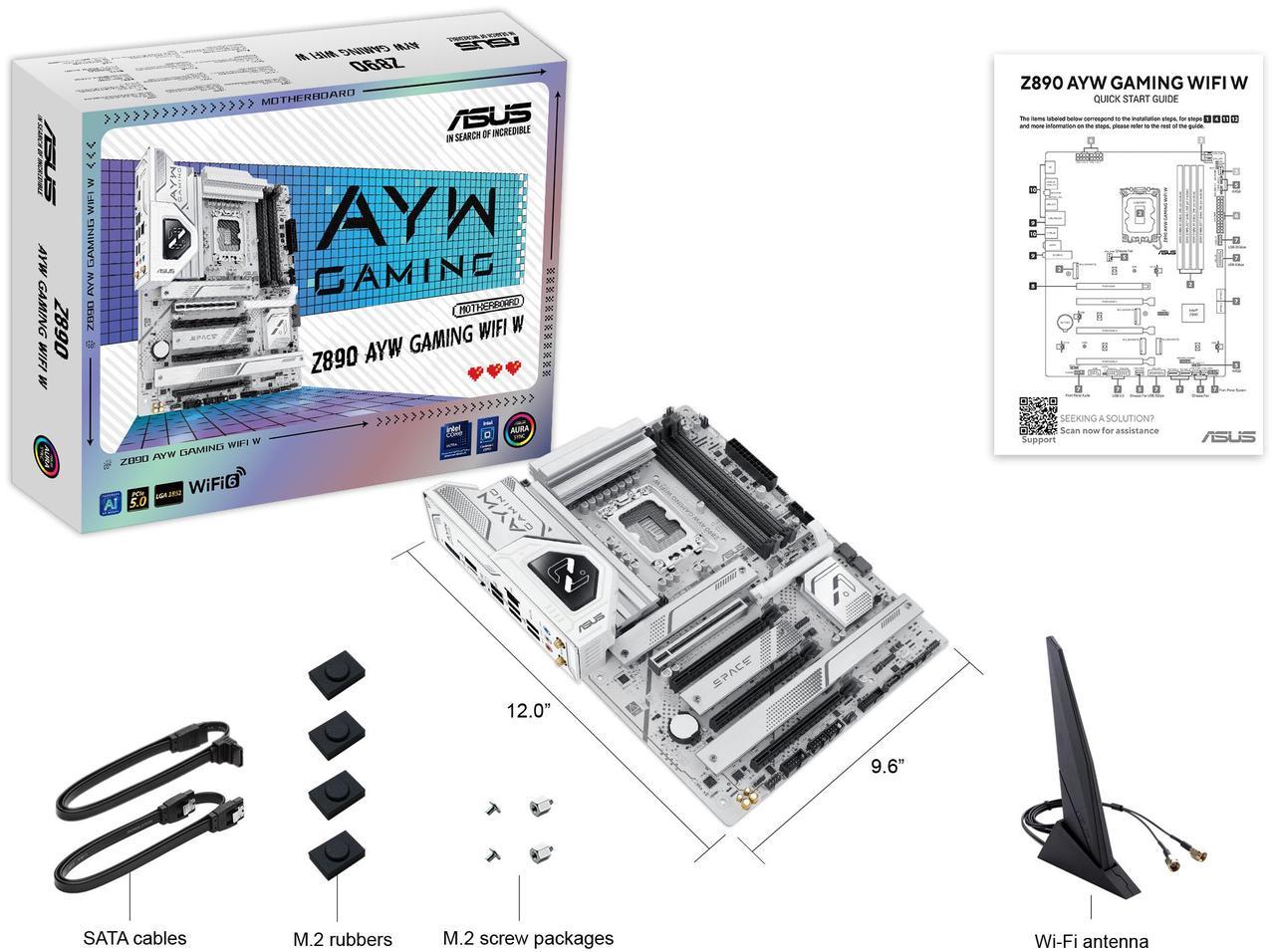

Package Contents

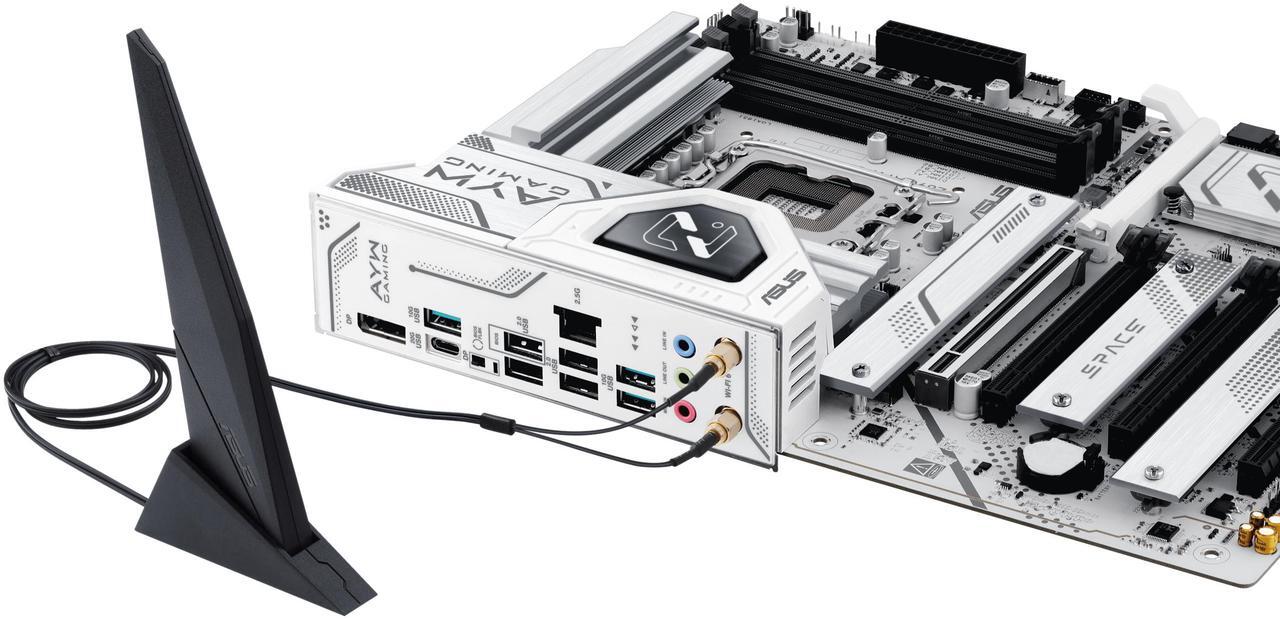

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Additional Information
Date First Available
April 03, 2025
