Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI application
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, equipped with all M.2 heatsinks
Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port, front USB 10Gbps Type-C connector, Thunderbolt (USB4) header support
Comprehensive Cooling: Enlarged VRM heatsink, three M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
DIY Friendly Design: PCIe Slot Q-Release, new M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack and Pre-mounted I/O shield
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
Combo Up Savings Up To $300+
The more you add, the more you'll save!
+
+
Overview
Specs
Reviews

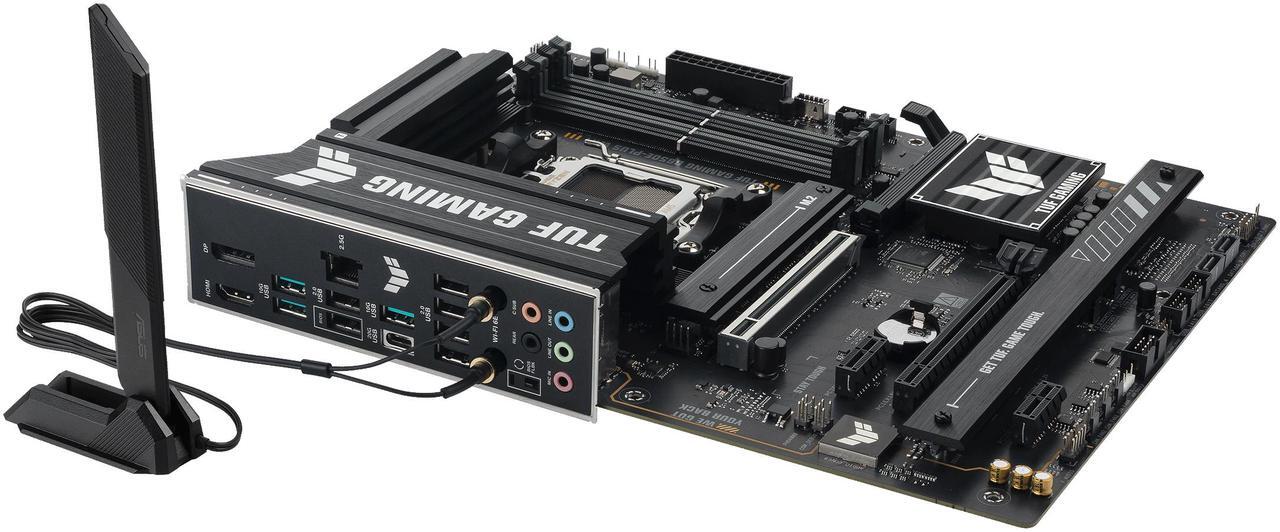

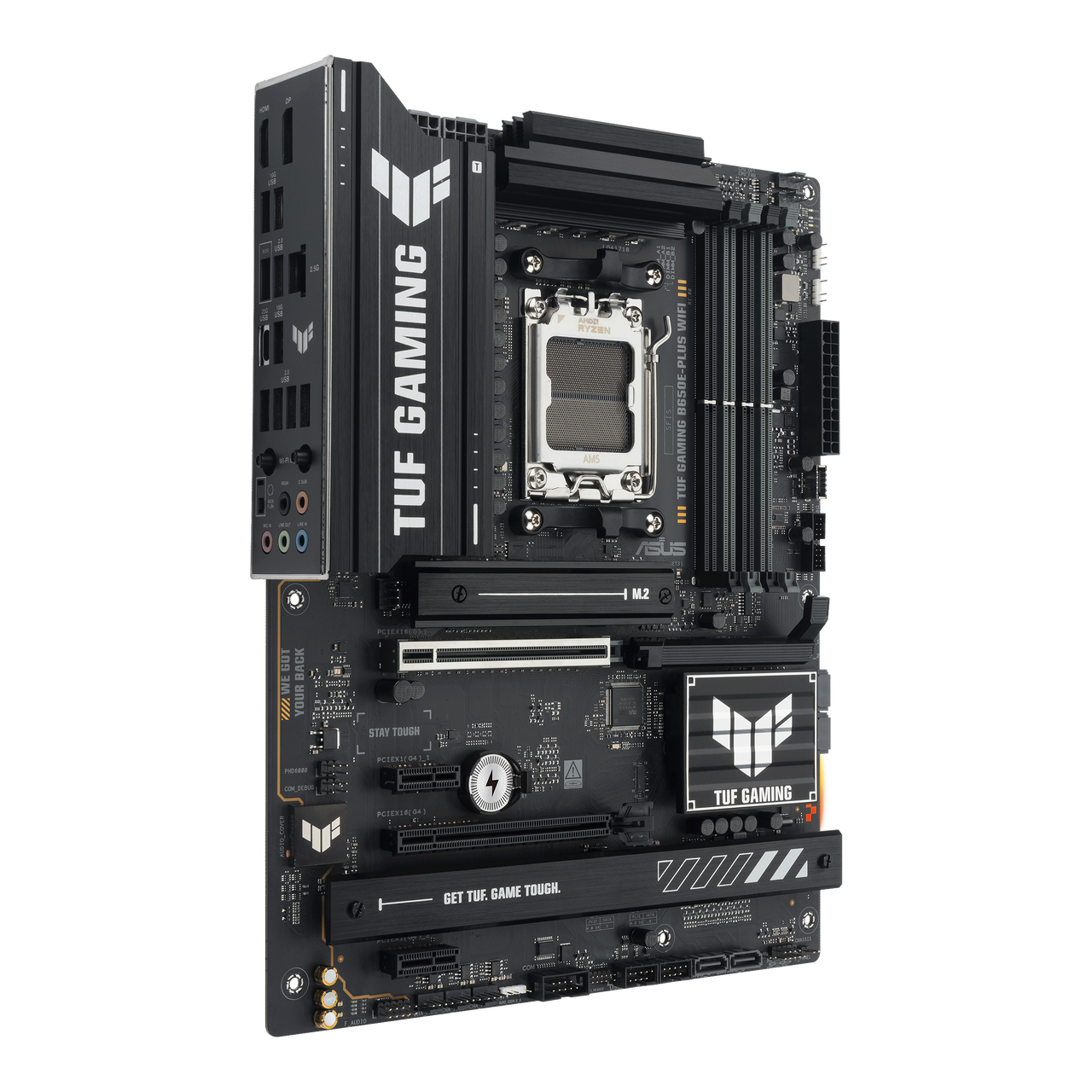

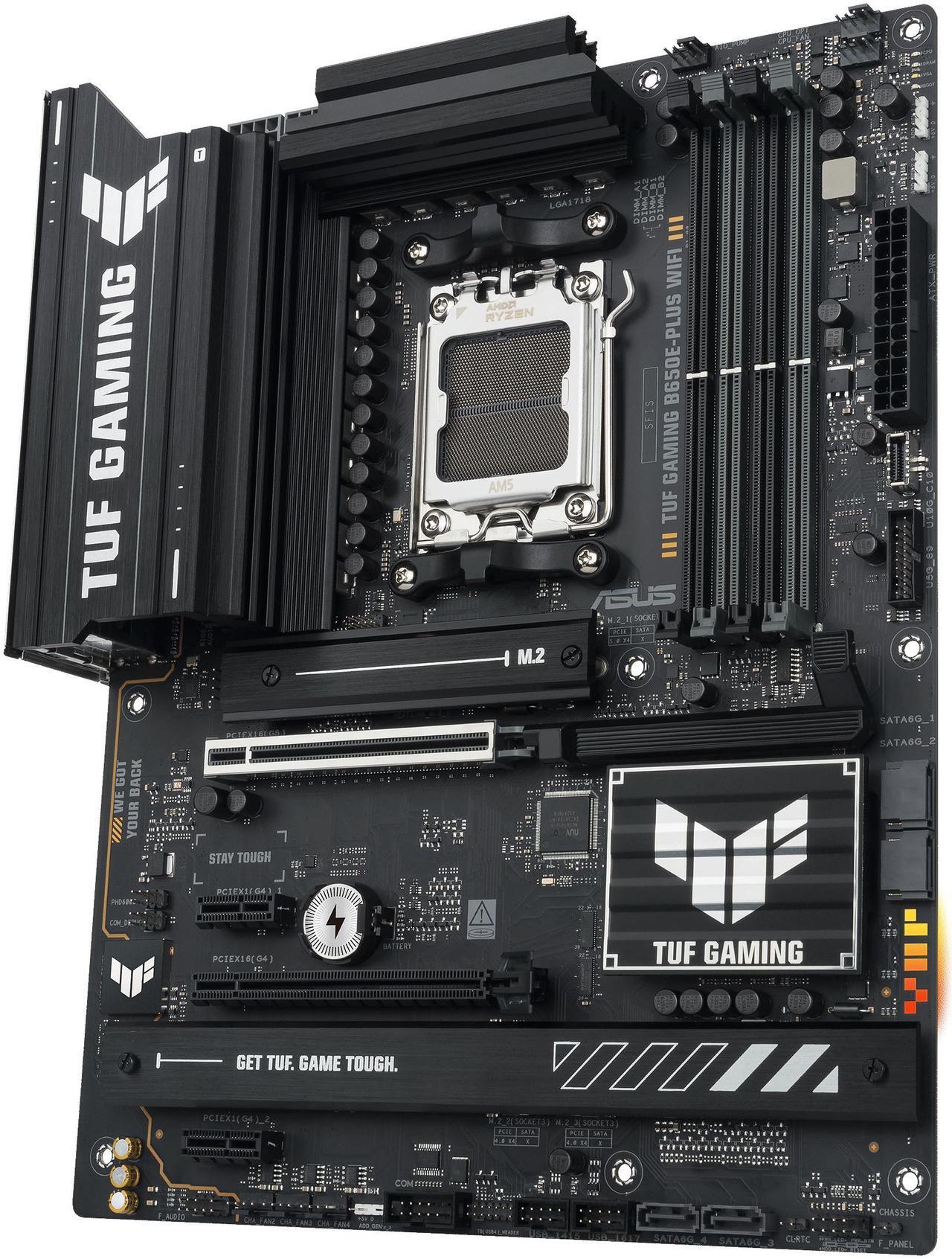

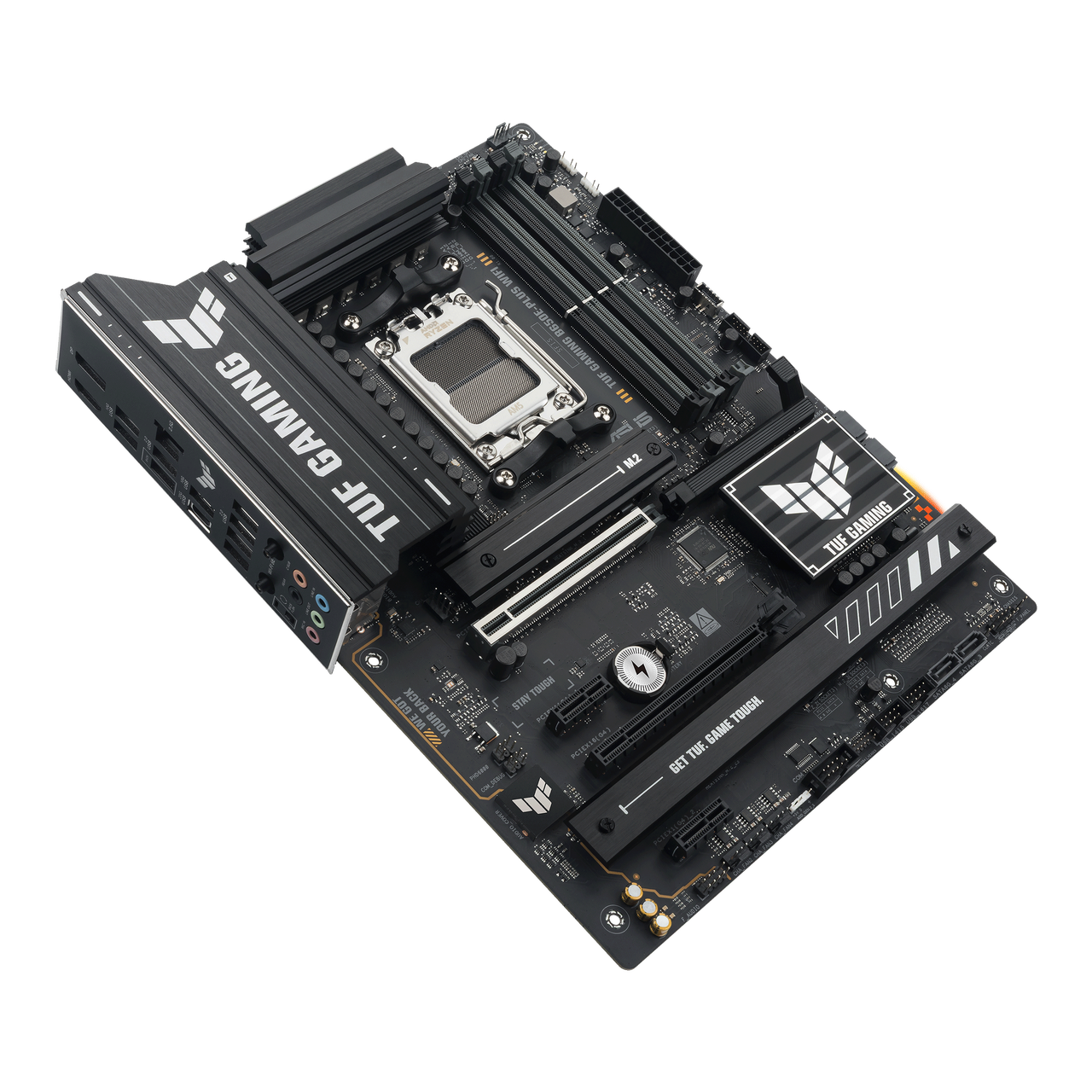

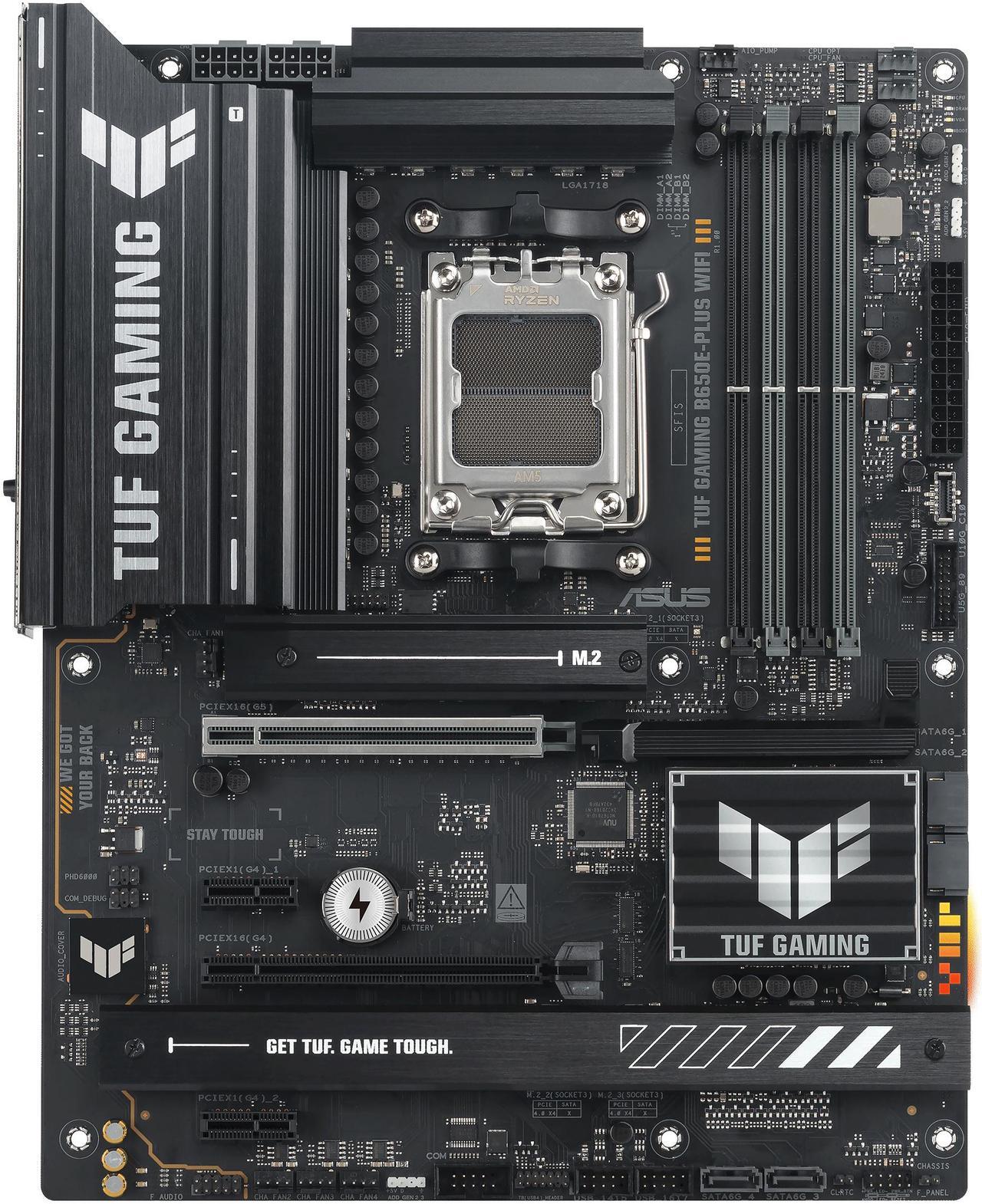

Learn more about the ASUS TUF GAMING B650E-PLUS WIFI
Model
Brand
ASUS
Model
TUF GAMING B650E-PLUS WIFI
Part Number
90MB1M20-MVAAY0
Supported CPU
CPU Socket Type
AM5
CPU Type
Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset
AMD B650
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Supports up to DDR5 8000+MT/s (OC)
Maximum Memory Supported
256GB
Channel Supported
Dual Channel
ECC Supported
Yes
Buffer Supported
Un-buffered
Memory Feature
Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Expansion Slots
PCI Express 5.0 x16
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x16
AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** *** The M.2_3 shares bandwidth with PCIEX16(G4). The PCIEX16(G4) will be disabled when M.2_3 runs.
PCI Express x1
2 x PCIe 4.0 x1 slots
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
SATA RAID
Ryzen 9000 series processors: RAID 0/1/5/10 Ryzen 8000 series processors: RAID 0/1 Ryzen 7000 series processors: RAID 0/1/10
Onboard Audio
Audio Channels
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Onboard LAN
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth 5.3

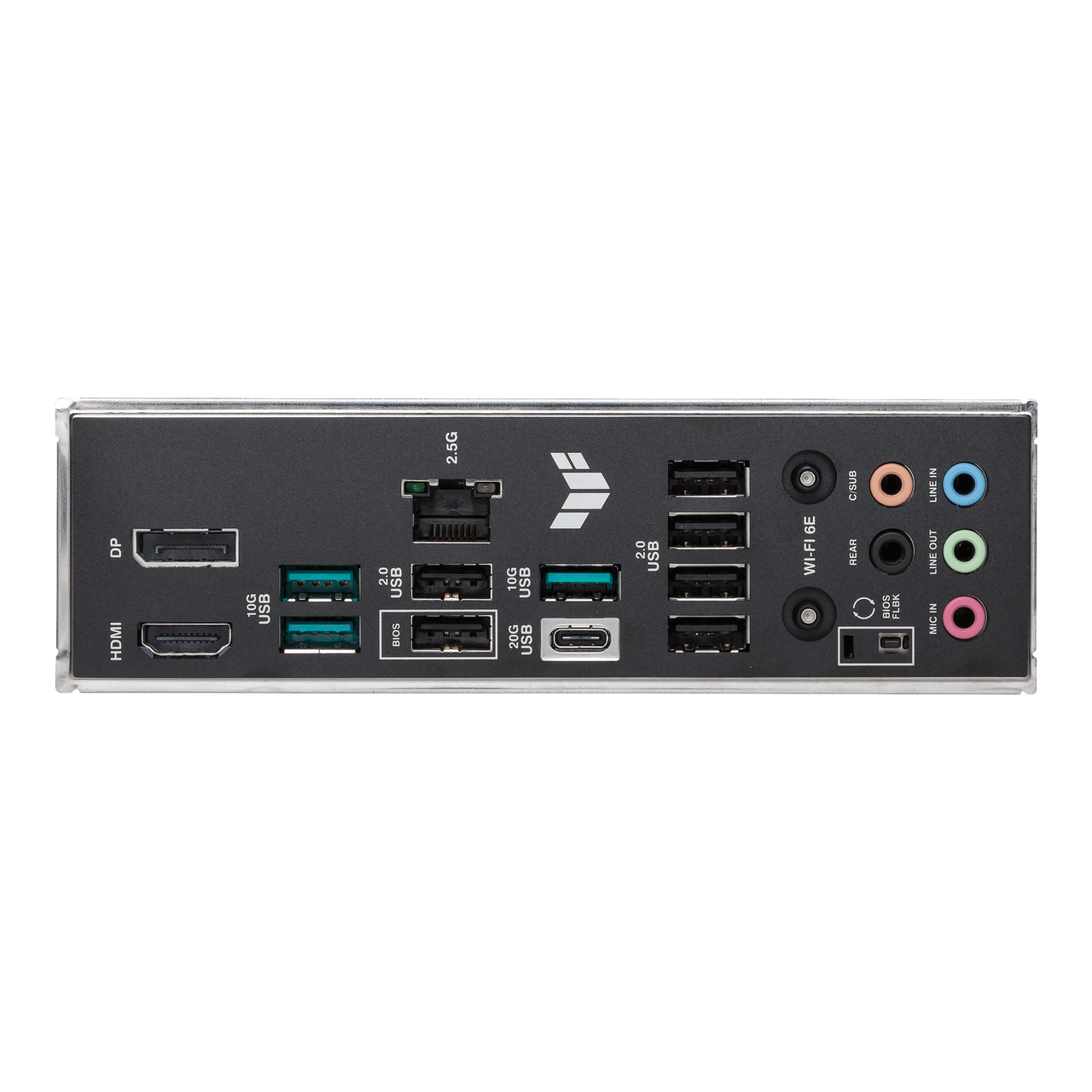

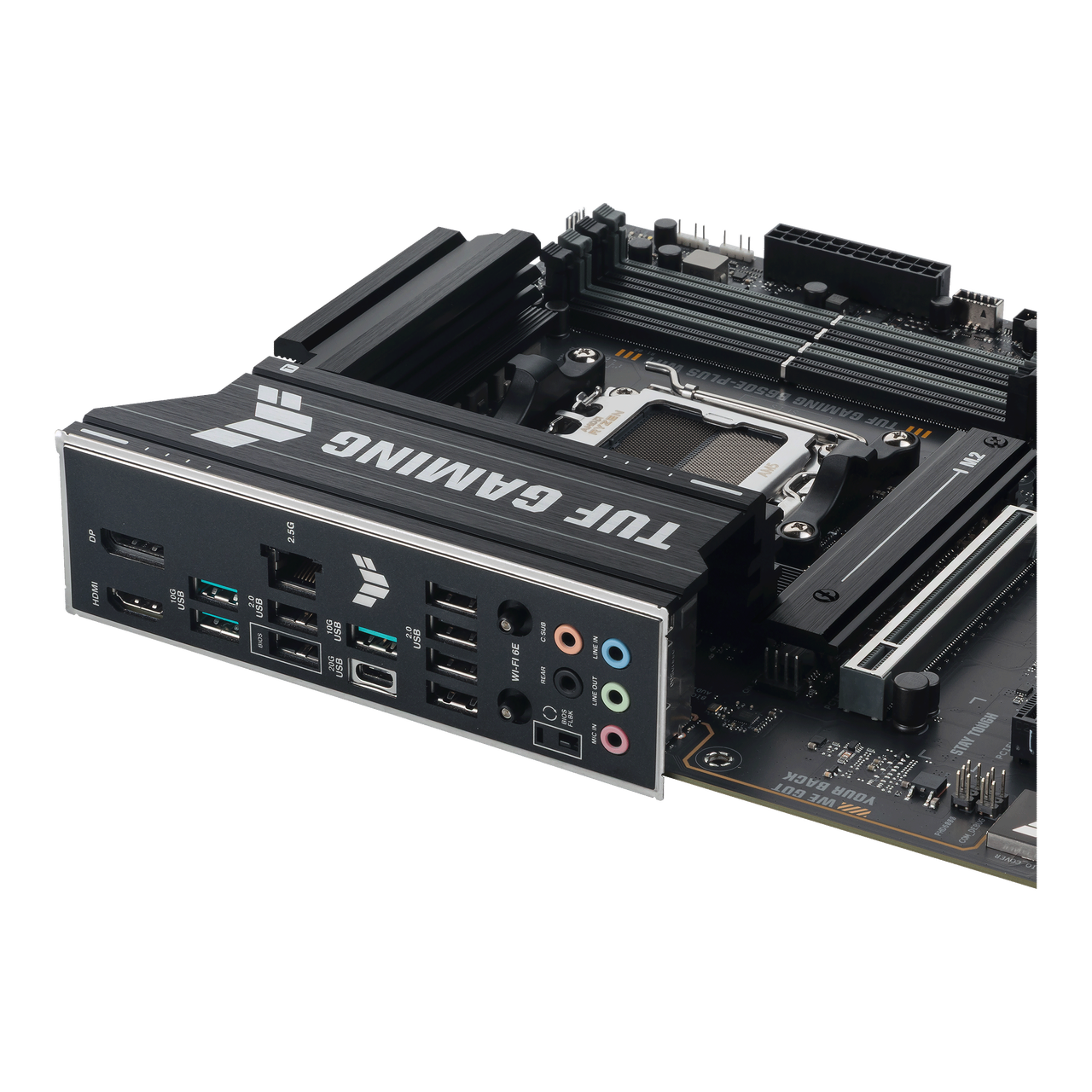

Rear Panel Ports
Back I/O Ports
1 x Antenna Bracket / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2x2 Type-C / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks / 6 x USB 2.0/1.1
Internal I/O Connectors
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors
Software Feature
BIOS Feature
256 Mb Flash ROM, UEFI AMI BIOS
Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS DriverHub TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Features
Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers
Packaging

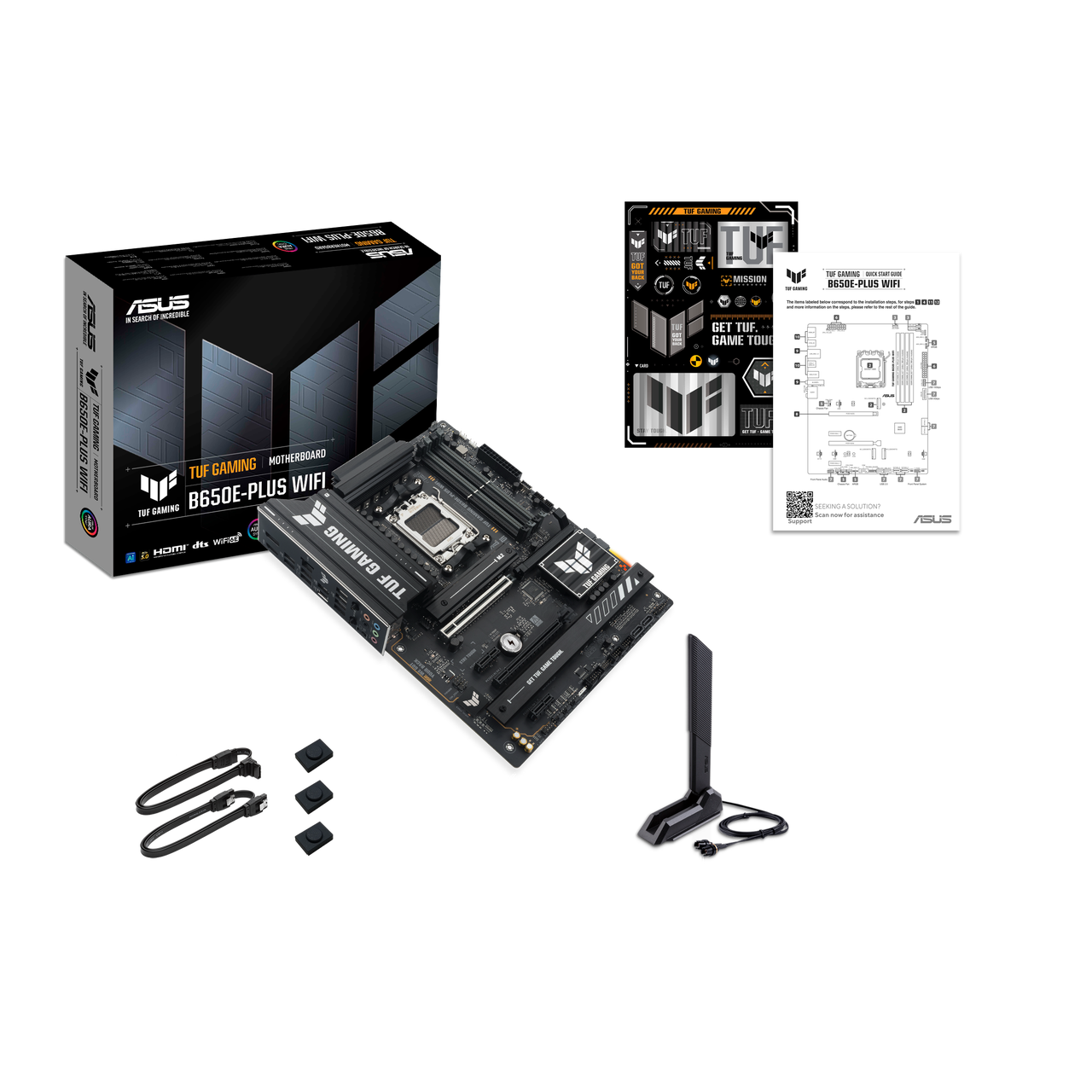

Package Contents
Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages
Documentation 1 x Quick start guide
Additional Information
Date First Available
April 28, 2025
