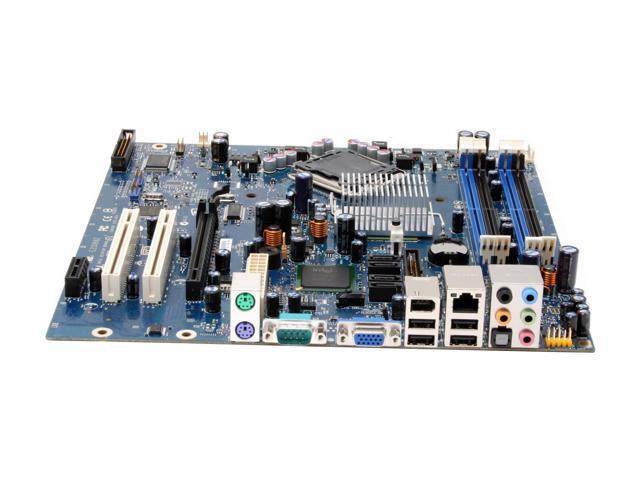

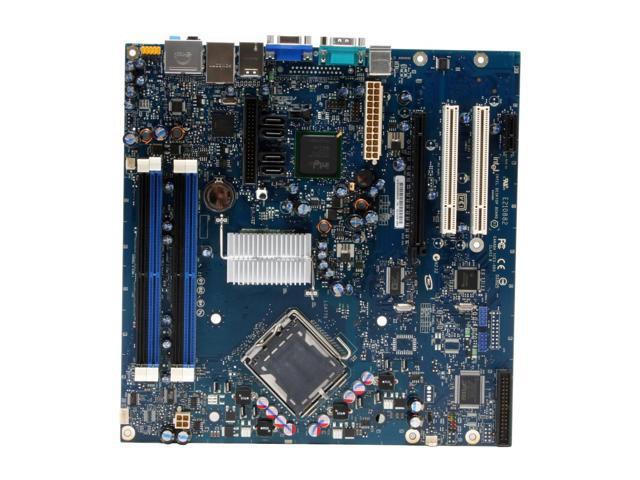

Intel BOXD945GBOLKR LGA 775 Intel 945G Micro BTX Intel Motherboard

OPEN BOX Product Type
  • Intel 945G
  • Pentium D / Pentium 4 HT / Celeron D
  • DDR2 667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Intel BOXD945GBOLKR

Model
Brand Intel
Model BOXD945GBOLKR
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium D / Pentium 4 HT / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 945G
South Bridge Intel ICH7 DH
Onboard Video
Onboard Video Chipset Intel GMA 950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5 Matrix RAID
Onboard Audio
Audio Chipset SigmaTel STAC9220 / Dolby Digital Live certification
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Onboard 1394 2 x 1394a connectors support 2 port
Physical Spec
Form Factor Micro BTX
Dimensions (W x L) 10.5" x 10.4"
Power Pin 24 Pin
Additional Information
First Listed on Newegg June 06, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: This item is Final Sale
  • Return for replacement within: This item is Final Sale
  • This item is covered by Newegg.com's Final Sale Return Policy. Read full return policy for details.
