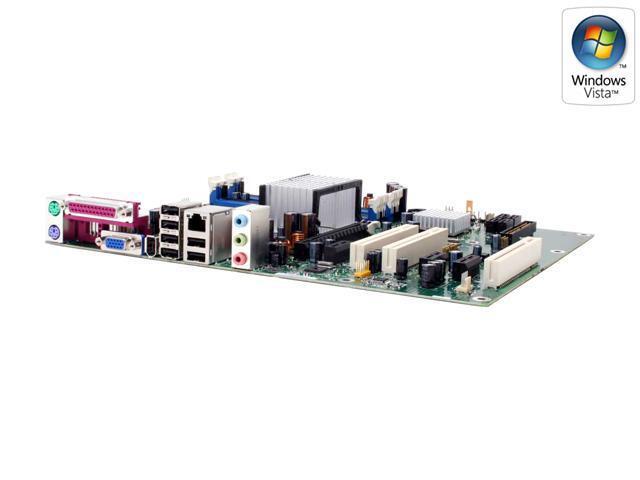

Brand | Intel |
---|---|
Model | BOXDG965RYCK |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Duo / Pentium D / Celeron D |
FSB | 1066/800 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | Intel G965 Express |
---|---|
South Bridge | Intel ICH8 |
Onboard Video Chipset | Intel GMA X3000 |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 800 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI Express x16 |
---|---|
PCI Express x1 | 3 x PCI Express x1 |
PCI Slots | 3 x PCI Slots |
PATA | 1 x ATA100 2 Dev. Max |
---|---|
SATA 3Gb/s | 4 x SATA 3Gb/s |
Audio Chipset | SigmaTel STAC9227 |
---|---|
Audio Channels | 6 Channels |
LAN Chipset | Intel 82566DC |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
LPT | 1 |
Video Ports | D-Sub |
USB 1.1/2.0 | 6 x USB 2.0 |
IEEE 1394 | 1 x IEEE 1394a |
Audio Ports | 3 Ports |
Onboard USB | 4 x USB 2.0 |
---|---|
Onboard 1394 | 1 x 1394a |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 11.6 " x 9.6" |
Power Pin | 24 Pin |
Features | Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets. |
---|
Package Contents | BOXDG965RYCK Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable |
---|
Windows Vista | Certified for Windows Vista |
---|
Date First Available | August 22, 2006 |
---|
Pros: Used this board today to build a system for a friend. Install when super smoothly besides a bad harddrive, and drivers installed without a single hitch. I just downloaded all of the packages available off intel's site for this board, instead of the included CD.
Cons: None
Overall Review: Even though this board has integrated video, it works perfectly with a PCI-Express video card. I used a 7900GS in this sytem, and with the e6300 cpu, scored a 4100 on 3dmark06. Perfect afordable system for my friend.
