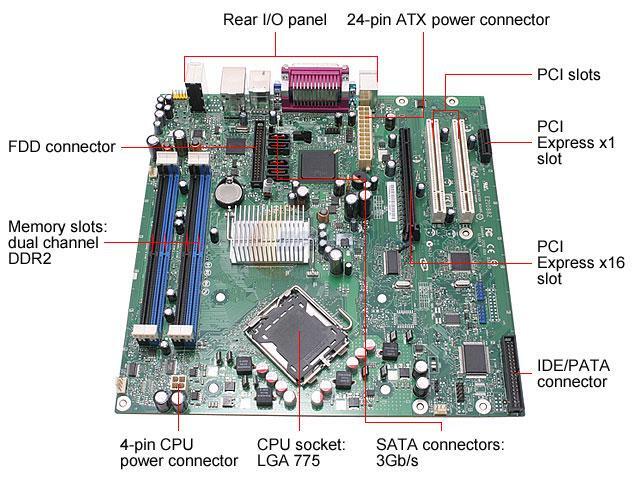

Intel BOXD945GCZLKR LGA 775 Intel 945G Micro BTX Intel Motherboard

OUT OF STOCK.
  • Intel 945G
  • Pentium D / Pentium 4 HT / Celeron D
  • DDR2 667
Specs
Reviews

Learn more about the Intel BOXD945GCZLKR

Model
Brand Intel
Model BOXD945GCZLKR
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium D / Pentium 4 HT / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 945G
South Bridge Intel ICH7R
Onboard Video
Onboard Video Chipset Intel GMA 950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 4 x SATA 3Gb/s
SATA RAID 0/1/0+1/5 Matrix RAID
Onboard Audio
Audio Chipset SigmaTel STAC9220
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Onboard 1394 2 x 1394a connectors support 2 ports
Physical Spec
Form Factor Micro BTX
Dimensions (W x L) 10.4" x 10.5"
Power Pin 24 Pin
Packaging

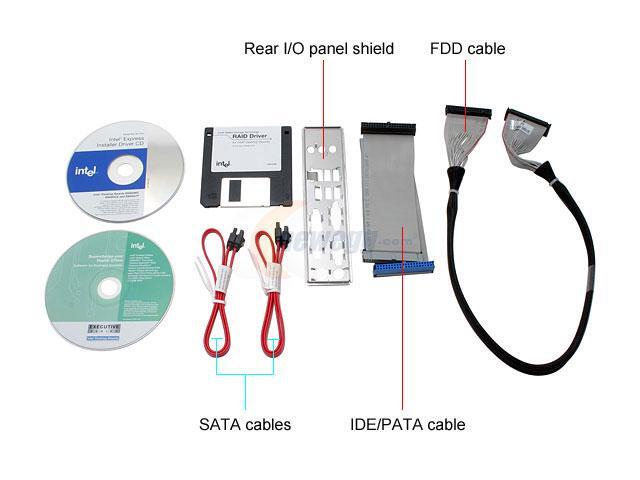

Package Contents BOXD945GCZLKR
2 x Driver Disk
Floppy Drive Diskette
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available July 08, 2005
