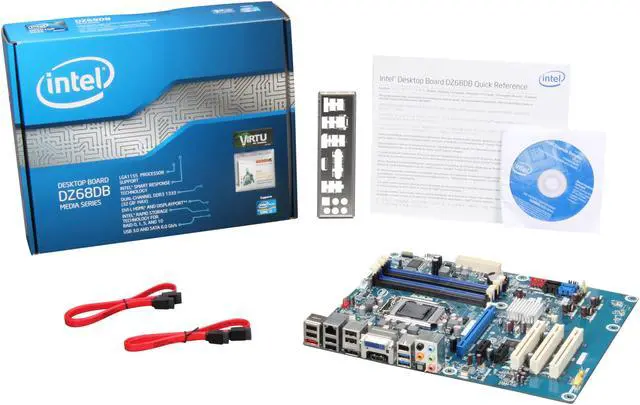

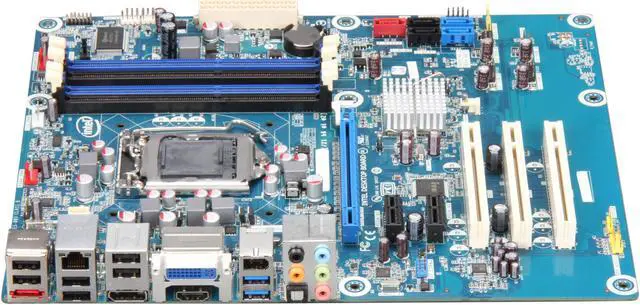

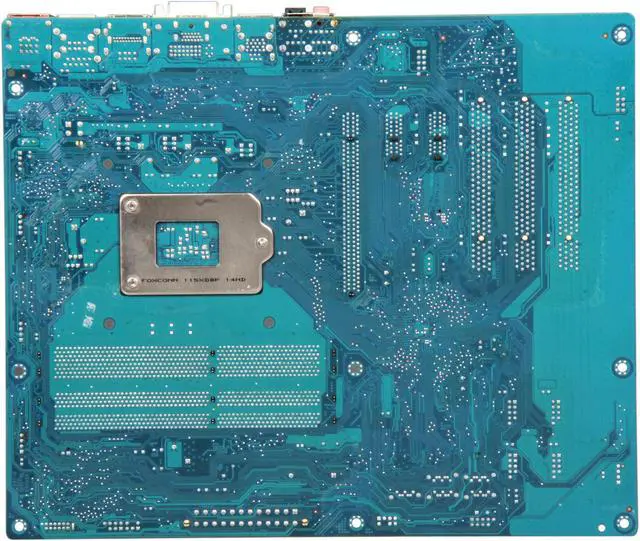

Intel BOXDZ68DB LGA 1155 Intel Z68 HDMI USB 3.0 ATX Intel Motherboard
- Intel Z68
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)
- DDR3 1333/1066
Specs
Reviews (49)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXDZ68DB
| Brand | Intel |
|---|---|
| Model | BOXDZ68DB |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155) |
| Chipset | Intel Z68 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 10 Channels (7.1 + 2) |
| LAN Chipset | Intel 82579V |
|---|---|
| Max LAN Speed | 1Gbps |
| Video Ports | DVI |
|---|---|
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Other Connectors | Back panel connectors Processor core power connector (2 x 2) Rear chassis fan header Processor fan header Front chassis fan header Chassis intrusion header Low Pin Count (LPC) Debug header Consumer IR receiver (input) header Consumer IR emitter (output) header Main power connector (2 x 12) Alternate front panel power LED header Front panel header Front panel audio header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | The Intel Desktop Board DZ68DB is an Intel Z68 Express Chipset-based desktop product in ATX form factor. Intel Smart Response Technology supported by the Intel Z68 Express Chipset combines the performance benefits of a solid-state drive with the storage capacity of a traditional HDD in a single drive volume. The Intel Desktop Board DZ68DB also supports Intel HD Graphics with the LucidLogix Virtu GPU Virtualization software which combines best-in-class media processing features of the 2nd generation Intel Core processor family with the 3D gaming performance of graphics add-in cards. Other premium features include SATA 6 Gb/s, SuperSpeed USB 3.0 ports for highest speed connections to USB peripherals, and Intel High Definition Audio (Intel HD Audio) with 7.1 surround audio with multi-streaming capability. |
|---|
| First Listed on Newegg | June 08, 2011 |
|---|
