what power supply is compatible?

If you are going to use onboard Video Card 500 Watt is ok.

How long is the warranty for this item? Do I do RMA with Intel directly?

Hello, Thank you for contacting us in regards to your question. The specifications of the item will be updated shortly. We thank you for bringing this to our attention. Thank you, Newegg Support

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of Intel DH61AG Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

Alt view image 2 of 5 - Intel DH61AG Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

Alt view image 3 of 5 - Intel DH61AG Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

Alt view image 4 of 5 - Intel DH61AG Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

Alt view image 5 of 5 - Intel DH61AG Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

Shop All Intel Products

Intel DH61AG Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

(4) Write a Review

Intel H61
Core i7 / i5 / i3 (LGA1155),up to 65W TDP
DDR3 1333/1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (4)

Any questions? Our AI beta will help you find out quickly.

Try me now

The Intel Desktop Board DH61AG powered by the 2nd generation Intel Core processors in the LGA1155 package offers Intel HD Graphics with best-in-class media processing features in an innovative low z-height, Thin Mini-ITX form factor. Fully compatible with low height components such as SO-DIMMs and Full and half length PCI Express mini-cards, the DH61AG also supports premium features such as SuperSpeed USB3, eSATA, and Hi Current/Fast charging USB 2.0 ports. Full display output support with HDMI and DVI-I is complemented by flexible eDP or LVDS flat panel display support. Combination of low height components, premium features, and an external power supply make the DH61AG the perfect solution for high performance AIO systems, Tiny FF systems, and Home Theatre PC systems.

Model
Brand	Intel
Model	DH61AG

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 (LGA1155),up to 65W TDP
Supported CPU Technologies	Hyper-Threading Technology Turbo Boost Technology

Chipsets
Chipset	Intel H61

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x204pin SO-DIMM
Memory Standard	DDR3 1333/1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x4	1 x PCI Express x4
Mini Card Slots	1 x PCIe Mini Card Slot (Half Length) 1 x PCIe Mini Card Slot (Full Length)

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x eSATA 3GB/S / 1 x HDMI / 2 x USB 2.0/1.1 / 2 x USB 3.0
Video Ports	DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
eSATA	1 x eSATA 3Gb/s

Internal I/O Connectors
Onboard USB	8 x USB 2.0
Other Connectors	Front Panel Connectors Reset,HD LED,Power LEDs,Power on/off Front-panel mic/headphone header Other Connectors Consumer IR receive header HTPC header(for DVR usage models)

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Features
Features	The Intel Desktop Board DH61AG powered by the 2nd generation Intel Core processors in the LGA1155 package offers Intel HD Graphics with best-in-class media processing features in an innovative low z-height, thin Mini-ITX form factor. Fully compatible with low height components such as SO-DIMMs and full- and half-length PCI Express mini-cards, the DH61AG also supports premium features such as SuperSpeed USB 3, eSATA, and Hi Current/fast charging USB 2.0 ports. Full display output support with HDMI* and DVI-I is complemented by flexible eDP or LVDS flat panel display support. Combination of low height components, premium features, and an external power supply make the DH61AG the perfect solution for high performance AIO systems, tiny FF systems, and home theater PC systems.

Packaging

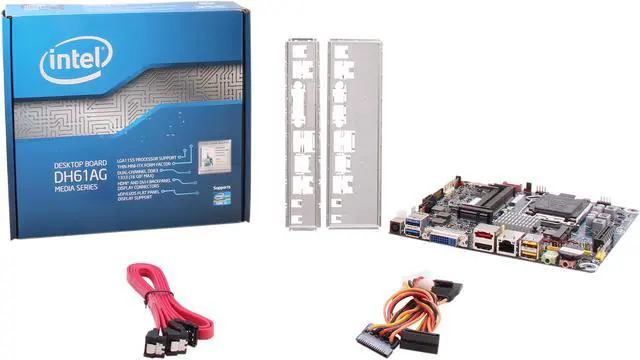

Package Contents	DH61AG Desktop Motherboard 1 x Back panel DC Jack Cover 2 x Cable, Serial ATA, Latching, L-Shaped 1 x Cable, SATA to Power & Data for Slimline Drives (Y-cable) 1 x DVD, Express Installer 1 x Configuration Label 1 x I/O shield - Full Height 1 x I/O shield - Half Height 1 x Quick Reference Guide Software CD
