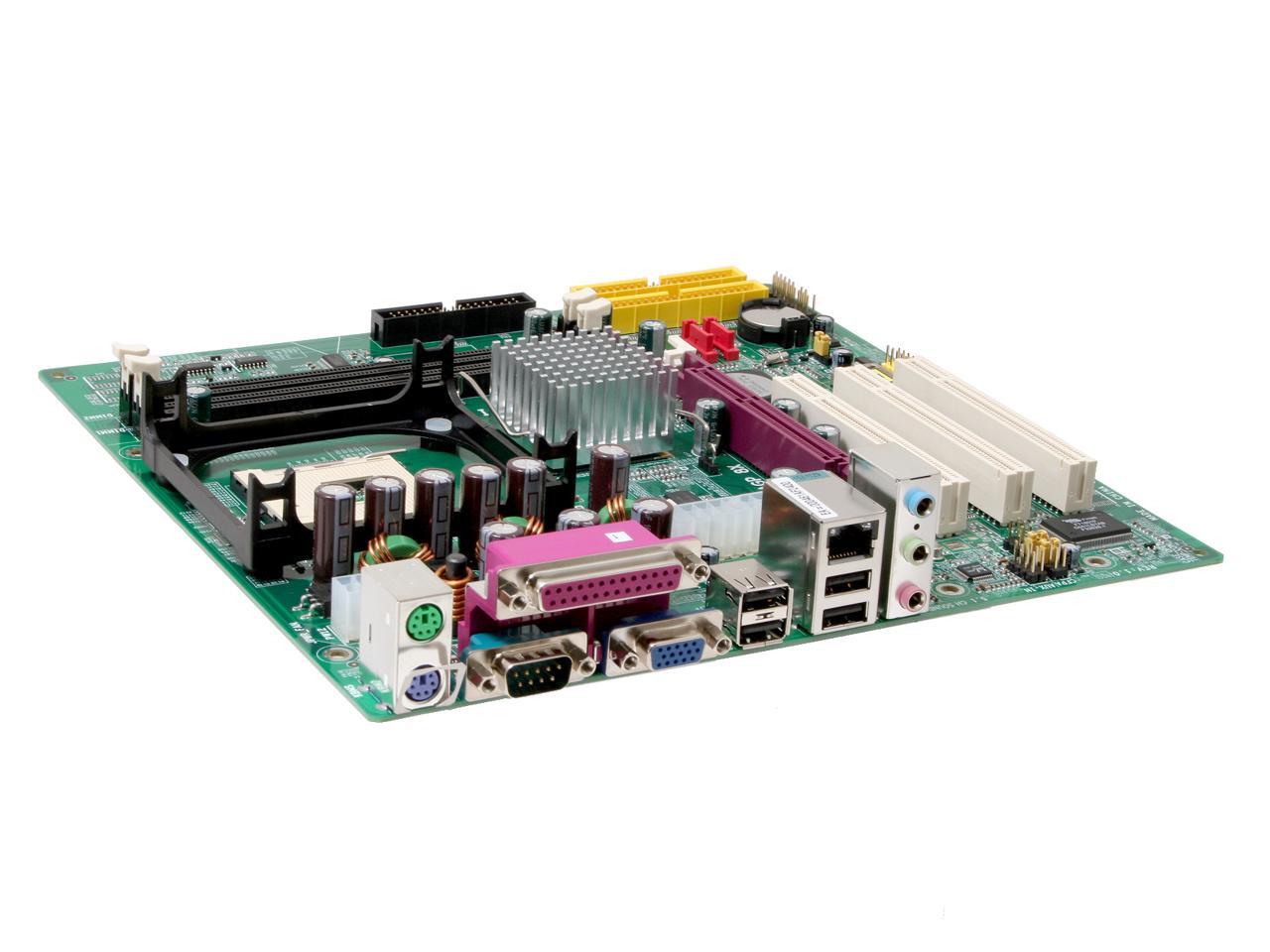

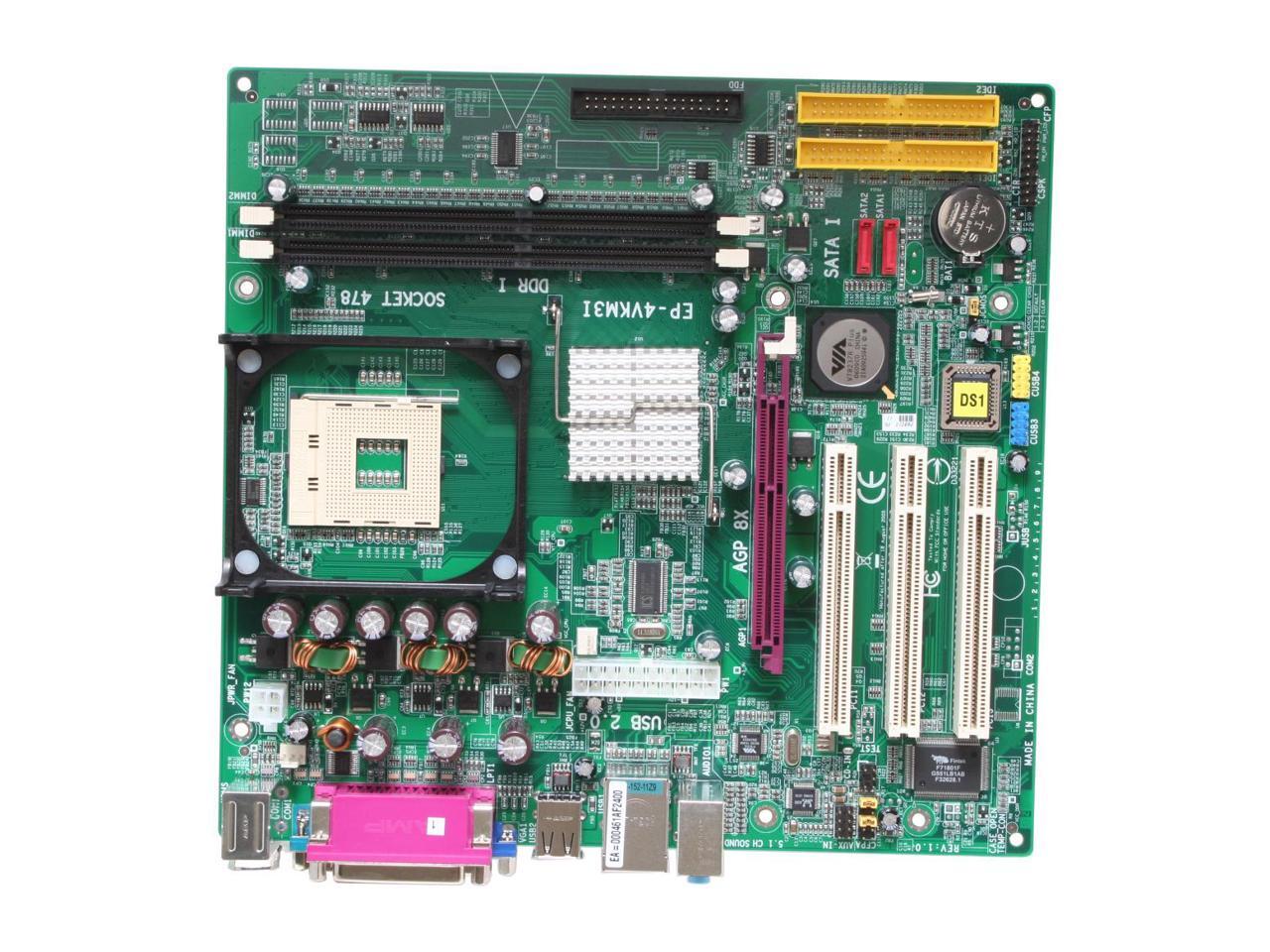

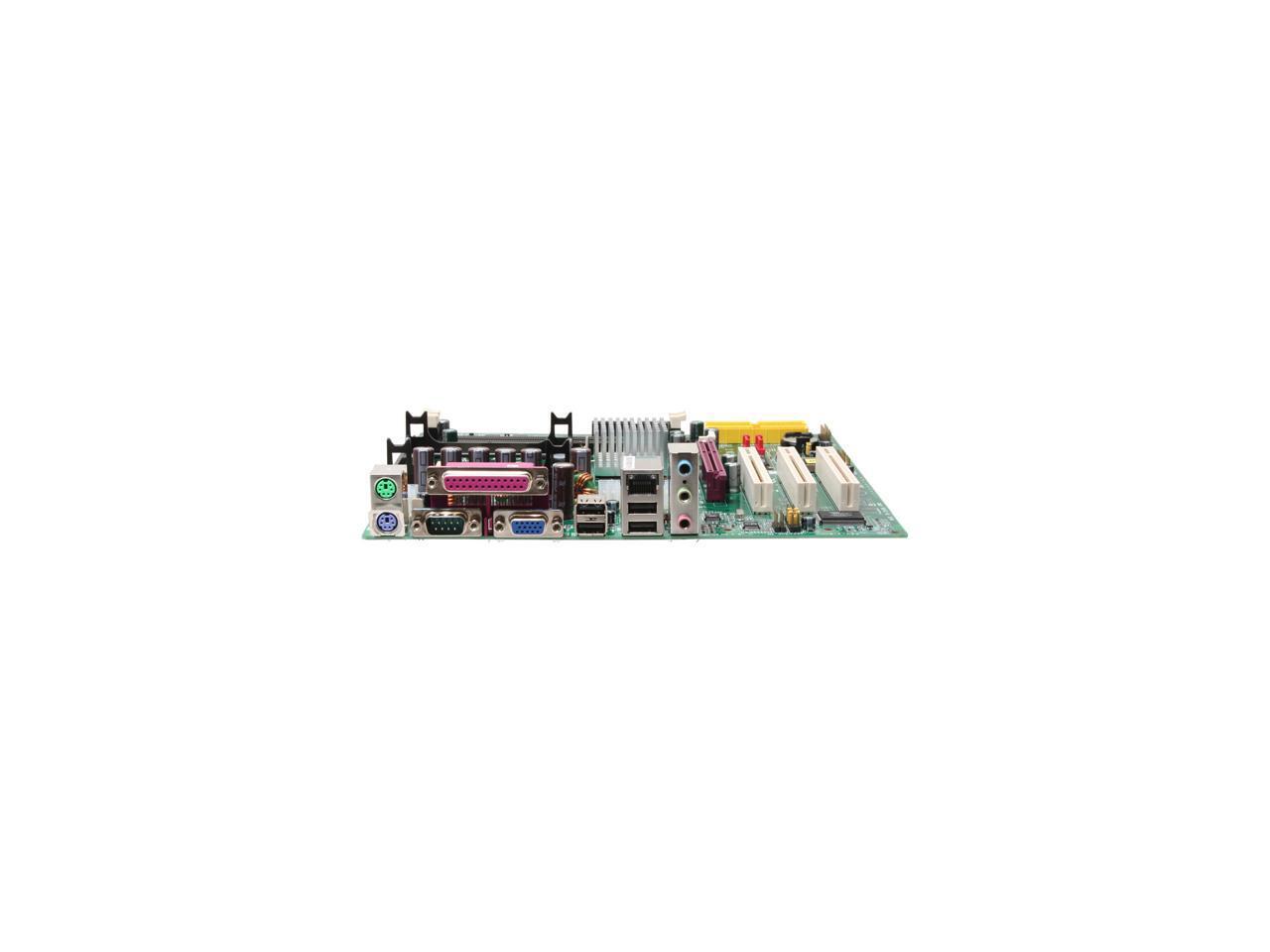

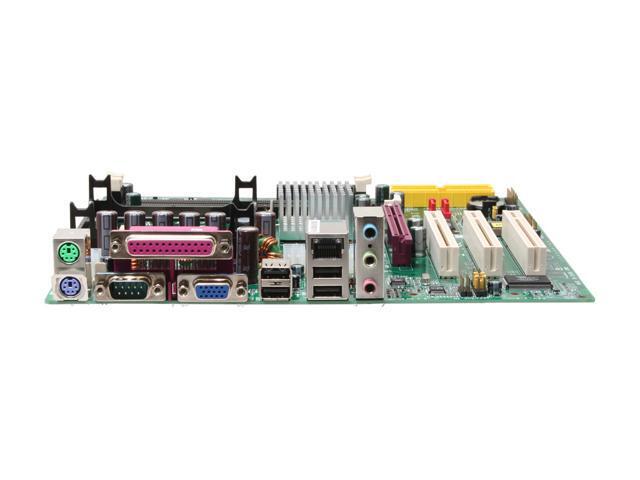

EPoX EP-4VKM3I 478 VIA P4M800CE Micro ATX Intel Motherboard
OUT OF STOCK.
- VIA P4M800CE
- Pentium 4 Prescott / Celeron D
- DDR 400
LOADING...
Specs
Reviews
Learn more about the EPoX EP-4VKM3I
| Brand | EPoX |
|---|---|
| Model | EP-4VKM3I |
| CPU Socket Type | 478 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA P4M800CE |
|---|---|
| South Bridge | VIA VT8237R |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Number of Memory Slots | 2×184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA 1.5 Gb/s | 2 x SATA 1.5 Gb/s |
| SATA RAID | 0/1 |
| Audio Chipset | Realtek ALC650 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | VIA VT6103L |
|---|---|
| Max LAN Speed | 10/100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.0" |
| Power Pin | 20 Pin |

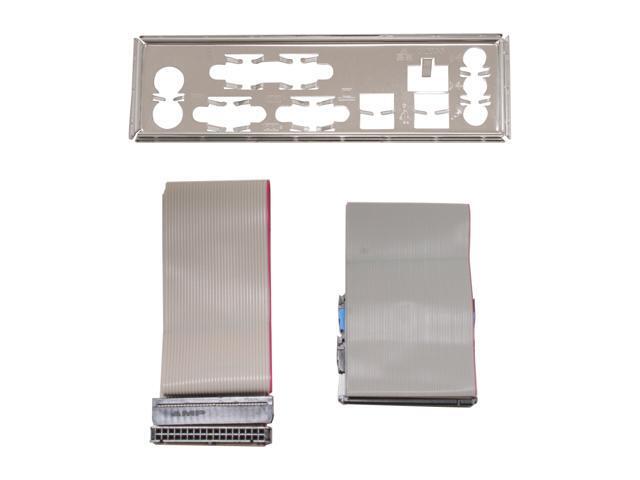

| Package Contents | EP-4VKM3I User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable |
|---|
| Date First Available | July 28, 2006 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-714-680-0898
- Support Website
- View other products from EPoX
LOADING...
LOADING...




















Pros: Got a Pentium 4 system with a fried motherboard? Buy this for a cheap replacement and you'll be all set. Integrated audio, video, and ethernet, AGP 8X, USB 2.0, all the standard stuff for a very reasonable price. As a bonus, the BIOS has loads of obscure options for adjusting clock speeds and tweaking all sorts of things.
Cons: No Firewire. If you need/want that, you'll have to waste a PCI slot on it. Then again, this is true of almost every motherboard in this price range.
Overall Review: The included CD contains all the required drivers, so you don't need to go searching around on the internet for them.
