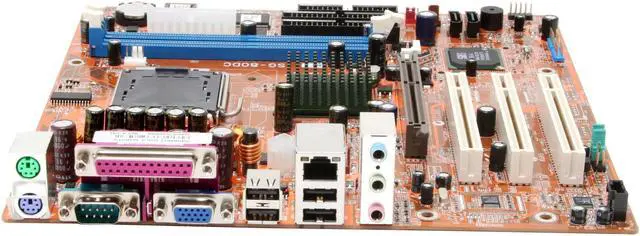

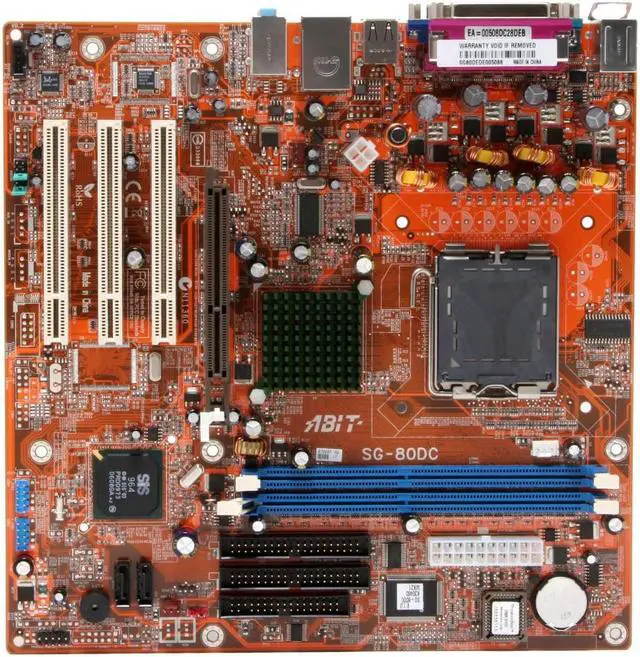

ABIT SG-80DC LGA 775 SiS 661FX Micro ATX Intel Motherboard

OUT OF STOCK.
  • SiS 661FX
  • Pentium D / Pentium 4 HT / Celeron D
  • DDR 400
Specs
Reviews

Learn more about the Universal abit USA SG-80DC

Model
Brand ABIT
Model SG-80DC
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium D / Pentium 4 HT / Celeron D
FSB 800/533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset SiS 661FX
South Bridge SiS 964
Onboard Video
Onboard Video Chipset SiS Mirage Graphics
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
SATA RAID 0/1
Onboard Audio
Audio Chipset AC97 Codec
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 10/100Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 20 Pin
Features
Features 100% lead-free process and RoHS Compliancy
Packaging

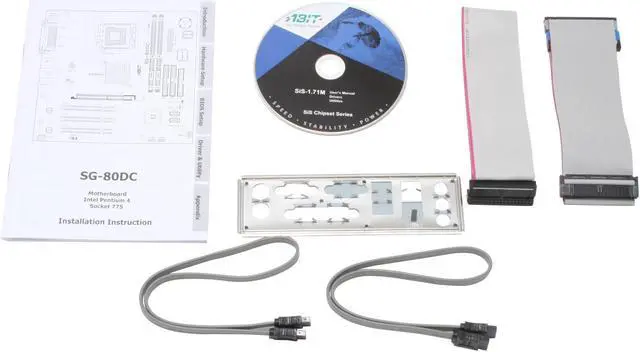

Package Contents SG-80DC
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Additional Information
Date First Available July 18, 2006
