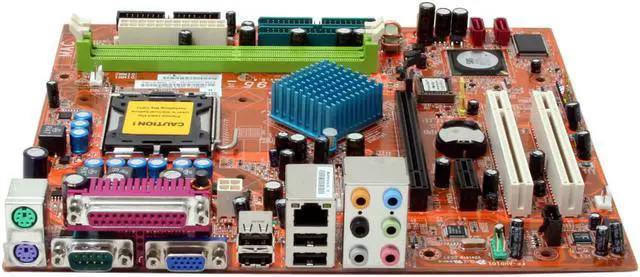

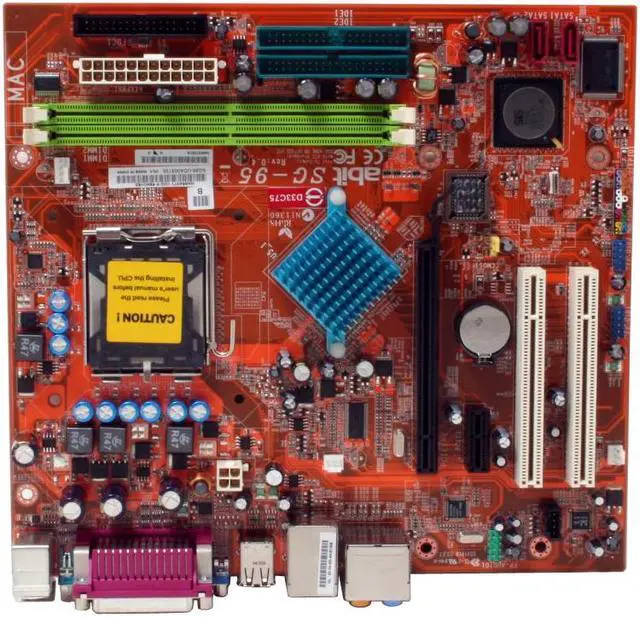

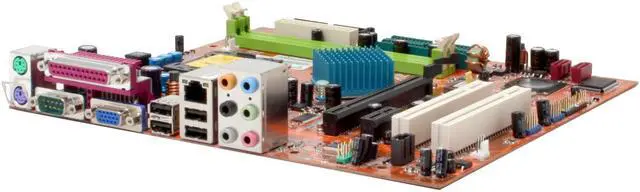

Main image of ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Alt view image 2 of 7 - ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Alt view image 3 of 7 - ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Alt view image 4 of 7 - ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Alt view image 5 of 7 - ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Alt view image 6 of 7 - ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Alt view image 7 of 7 - ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Shop All Universal abit USA Products

ABIT SG-95 LGA 775 SiS 662 Micro ATX Intel Motherboard

Name: ABIT SG-95 LGA 775 Micro ATX Intel Motherboard
Brand: Universal abit USA
SKU: N82E16813127012
Rating: 4 (7 reviews)

(7) Write a Review

SiS 662
Pentium® D & Pentium® 4 & Celeron® & Celeron® D
DDR2 667

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (7)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Universal abit USA SG-95

Model
Brand	ABIT
Model	SG-95

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Pentium® D & Pentium® 4 & Celeron® & Celeron® D
FSB	800MHz
Supported CPU Technologies	Hyper-Threading / EM64T / EIST Technology

Chipsets
Chipset	SiS 662
South Bridge	SiS 966L

Onboard Video
Onboard Video Chipset	SiS Mirage1 Graphics

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR2 667
Maximum Memory Supported	2GB

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	2 x ATA100 4 Dev. Max
SATA RAID	RAID 0/1/JBOD

Onboard Audio
Audio Chipset	Realtek ALC883
Audio Channels	8 Channels

Onboard LAN
Max LAN Speed	100Mbps

Rear Panel Ports
Back I/O Ports	2 x PS/2 / 4 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.8"
Power Pin	24 Pin

Features
Features	RoHS Compliancy Note: Duo to SiS 662 chipset specification, SG-95 can only support CPU of FSB 800MHz

Packaging

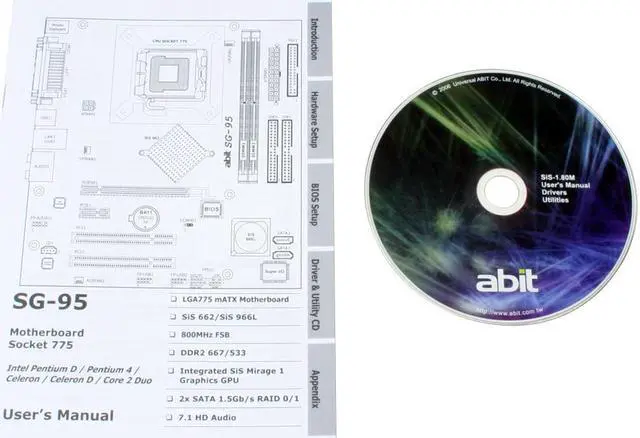

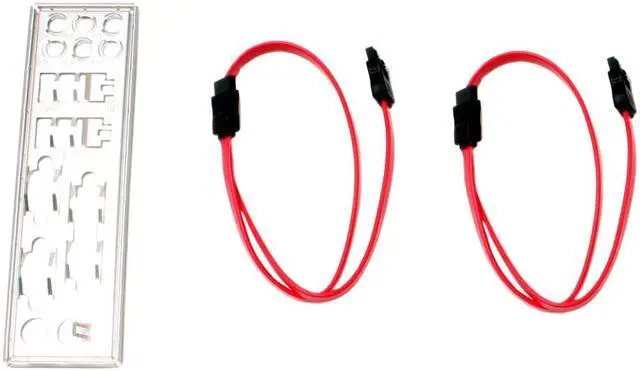

Package Contents	SG-95 User Manual Driver Disk Rear I/O Panel Shield SATA Cable

Additional Information
First Listed on Newegg	October 02, 2006
