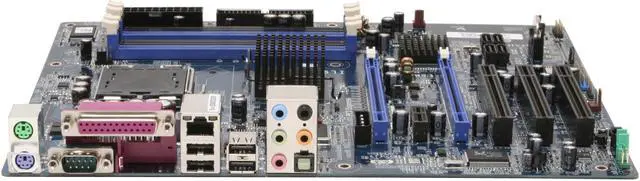

ABIT IL9 Pro LGA 775 Intel 945P ATX Intel Motherboard

Name: ABIT IL9 Pro LGA 775 ATX Intel Motherboard
Brand: Universal abit USA
SKU: N82E16813127015
Rating: 4 (33 reviews)

(33) Write a Review

Intel 945P
Core 2 Duo / Pentium D / Celeron D
DDR2 667

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (33)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Universal abit USA IL9 Pro

Model
Brand	ABIT
Model	IL9 Pro

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Core 2 Duo / Pentium D / Celeron D
FSB	1066Mhz
Supported CPU Technologies	Hyper-Threading Technology

Chipsets
Chipset	Intel 945P
South Bridge	Intel ICH7

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR2 667
Maximum Memory Supported	4GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCI Express x16 1 x PCI Express x16 (PCI-E x4 bandwith)
PCI Express x1	1 x PCI Express x1
PCI Slots	3 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max

Onboard Audio
Audio Chipset	AC97 Codec
Audio Channels	8 Channels

Onboard LAN
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
USB 1.1/2.0	4 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors support 4 ports

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Packaging

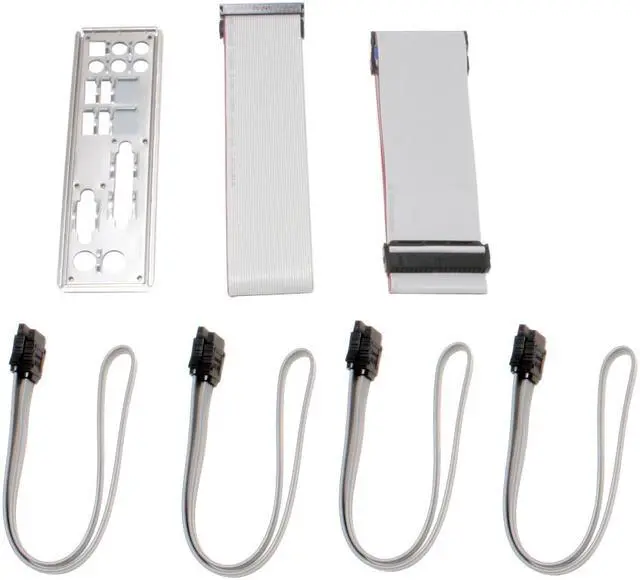

Package Contents	IL9 Pro Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable

Details
Windows Vista	Certified for Windows Vista

Additional Information
First Listed on Newegg	December 01, 2006
