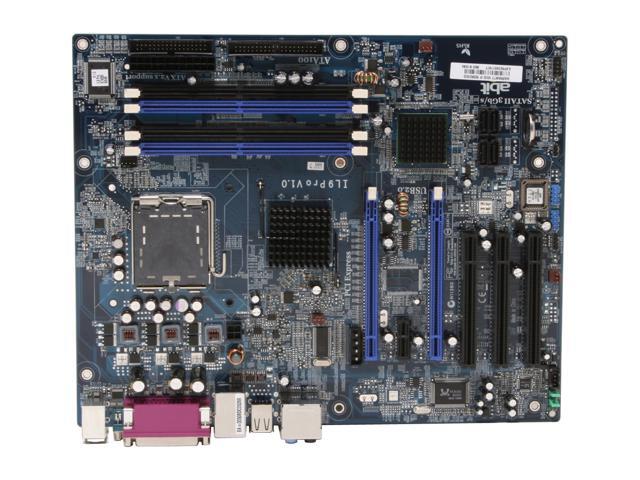

ABIT IL9 Pro LGA 775 Intel 945P ATX Intel Motherboard

OUT OF STOCK.
  • Intel 945P
  • Core 2 Duo / Pentium D / Celeron D
  • DDR2 667
Specs
Reviews

Learn more about the Universal abit USA IL9 Pro

Model
Brand ABIT
Model IL9 Pro
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Pentium D / Celeron D
FSB 1066Mhz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 945P
South Bridge Intel ICH7
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
1 x PCI Express x16 (PCI-E x4 bandwith)
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 4 x SATA 3Gb/s
Onboard Audio
Audio Chipset AC97 Codec
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents IL9 Pro
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available December 01, 2006
