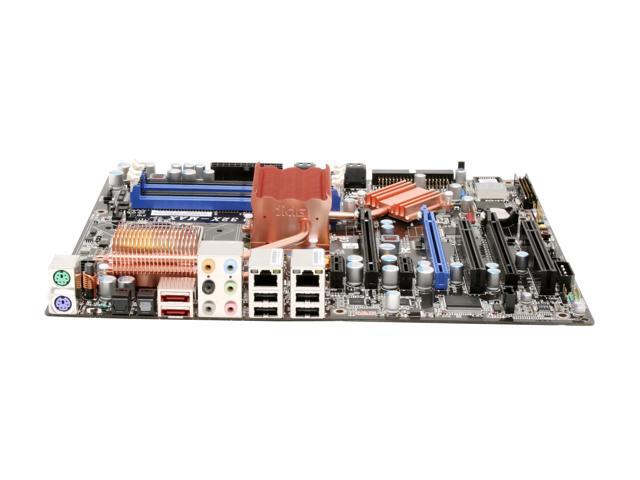

ABIT IN9 32X-MAX LGA 775 Nvidia nForce 680i SLI / NF590 SLI ATX Intel Motherboard

(165) Write a Review
  • Nvidia nForce 680i SLI / NF590 SLI
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (165)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Universal abit USA IN9 32X-MAX

Model
Brand ABIT
Model IN9 32X-MAX
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Nvidia nForce 680i SLI / NF590 SLI
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI-Express x16,
1 x PCI-PCI-Express x16 (x8 bandwidth for x4, x8 and x16 devices)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID NV RAID 0/1/0+1/5 JBOD
Additional RAID Controller Sil 3132
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 4 x USB 2.0
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
S/PDIF In 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Packaging

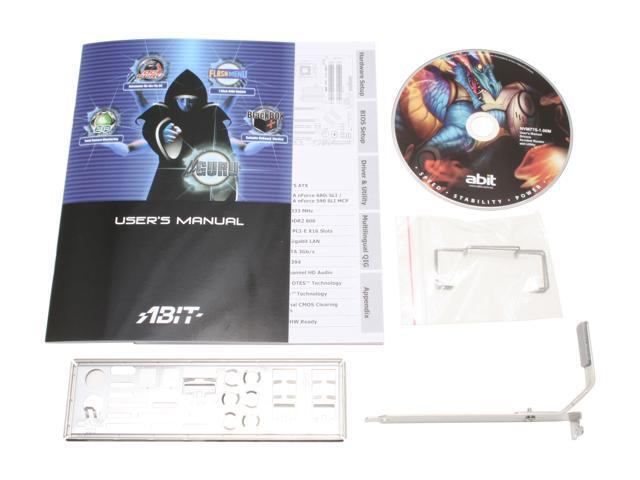

Package Contents IN9 32X-MAX
Driver Disk
2 x User Manual
Rear I/O Panel Shield

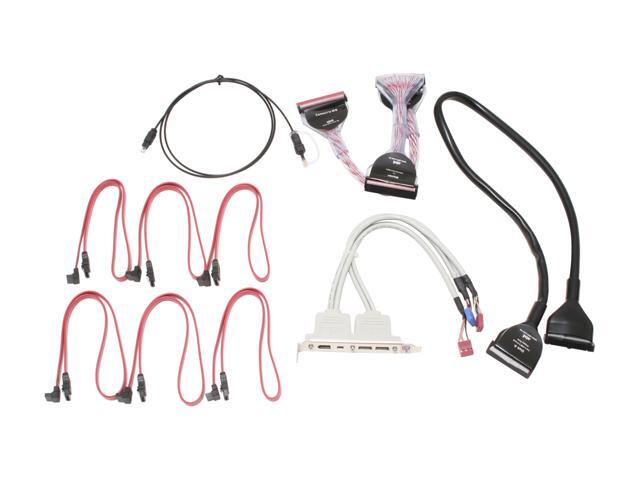

IDE/PATA Cable
FDD Cable
6 x SATA Cable
2 x SLI Bridge
SLI Retention Bracket
S/PDIF Cable
IEEE 1394 and USB Bracket

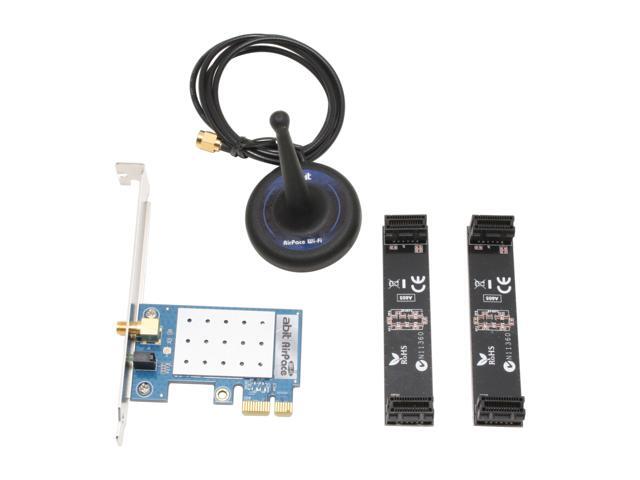

ABIT Airpace Wi-Fi Kit
Additional Information
First Listed on Newegg January 24, 2007
