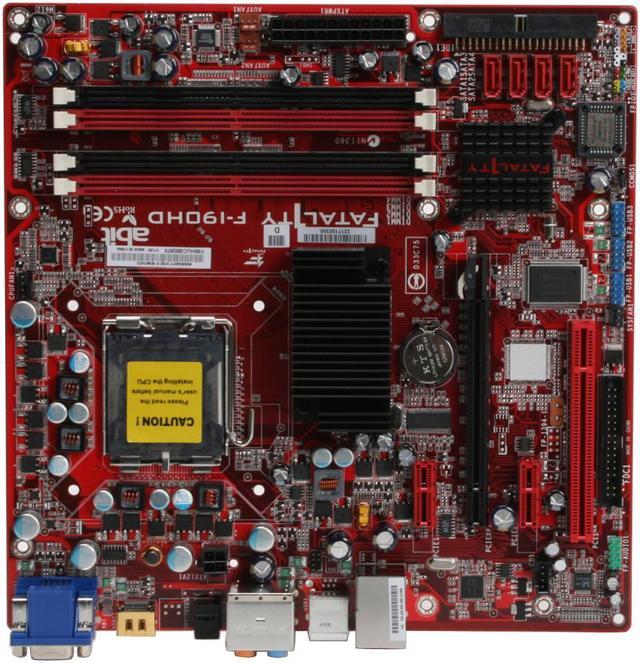

ABIT Fatal1ty F-I90HD LGA 775 ATI Radeon Xpress 1250 HDMI Micro ATX Intel Motherboard

  • ATI Radeon Xpress 1250
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (57)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Universal abit USA Fatal1ty F-I90HD

Model
Brand ABIT
Model Fatal1ty F-I90HD
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset ATI Radeon Xpress 1250
Onboard Video
Onboard Video Chipset ATI Radeon Xpress 1250
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps

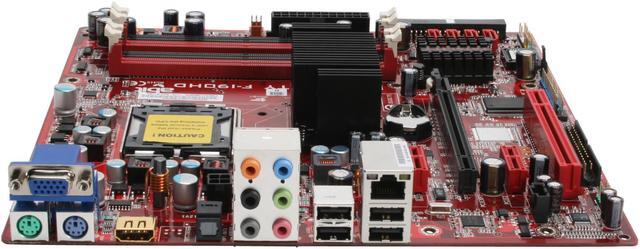

Rear Panel Ports
Back I/O Ports 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents Fatal1ty F-I90HD
Driver Disk
User Manual

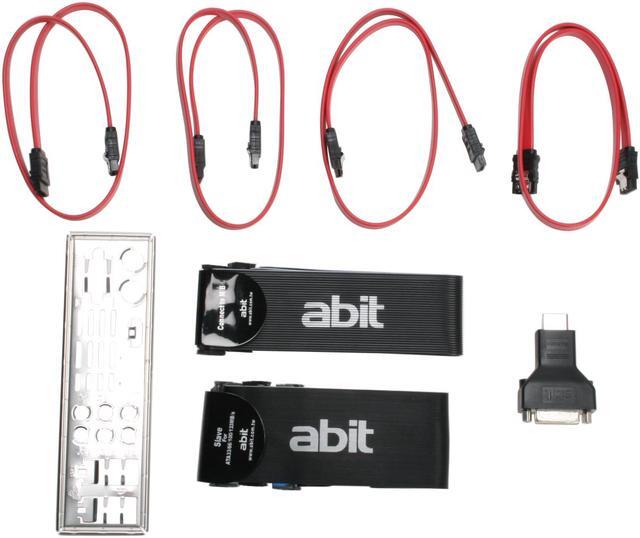

Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cables
Cable
Additional Information
Date First Available April 04, 2007
