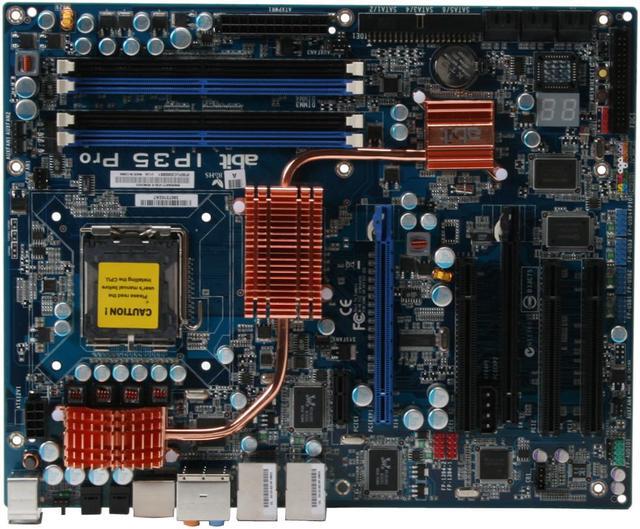

ABIT IP35 Pro LGA 775 Intel P35 ATX Intel Motherboard
OUT OF STOCK.
- Intel P35
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews
Learn more about the Universal abit USA IP35 Pro
Brand | ABIT |
---|---|
Model | IP35 Pro |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
FSB | 1333/1066 MHz |
Chipset | Intel P35 |
---|---|
South Bridge | Intel ICH9R |
Onboard Video Chipset | None |
---|
Number of Memory Slots | 4×240pin |
---|---|
Memory Standard | DDR2 800 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI-E X16, 1 x PCI-E X16 (x4 bandwidth) |
---|---|
PCI Express x1 | 1 x PCI Express x1 |
PCI Slots | 3 x PCI Slots |
PATA | 1 x ATA100 2 Dev. Max |
---|---|
SATA 3Gb/s | 6 x SATA 3Gb/s |
SATA RAID | 6 x SATA 3Gb/s offer by Intel ICH9R support Intel Matrix Storage Tech(AHCI & RAID0/1/5/10) 2 x eSATA 3Gb/s through JMicron JMB363 support 0,1JBOD RAID function |
Additional RAID Controller | JMicron JMB363 |
Audio Chipset | Realtek ALC888 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Realtek 8110SC |
---|---|
Second LAN Chipset | Realtek 8110SC |
Max LAN Speed | Dual 10/100/1000Mbps |
PS/2 | 2 |
---|---|
USB 1.1/2.0 | 4 x USB 2.0 |
eSATA | 2 x eSATA 3Gb/s |
S/PDIF Out | 1 x Optical |
S/PDIF In | 1 x Optical |
Audio Ports | 6 Ports |
Onboard USB | 6 x USB 2.0 |
---|---|
Onboard 1394 | 2 x 1394a |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |

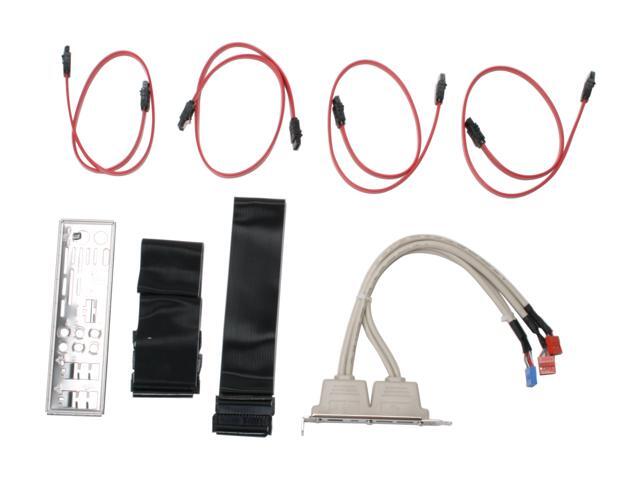

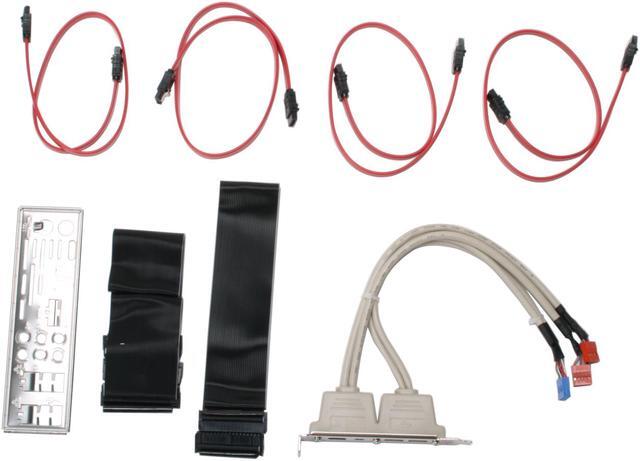

Package Contents | IP35 Pro Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable IEEE 1394 & USB Bracket |
---|
Windows Vista | Certified for Windows Vista |
---|
Date First Available | June 04, 2007 |
---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-213-2613
- Support Website
- View other products from Universal abit USA
LOADING...
LOADING...
Pros: Booted right up with no issues at all. LCD on MB very helpful in troubleshooting issues if after tweaking BIOS it doesn't POST. CMOS reset switch on the back input panel very useful as well. Handles my overclock with ease. Comes with all the cables you need so don't worry if you buy OEM drives without cables. Came with the latest BIOS version (14) and abit's uguru software on the CD is actually a newer version than on the website (this is a first for me). Plenty of auxiliary fan plugs on the MB - I don't use even half of them.
Cons: The firewire plugs are situated in a place (see pictures) where a large 2 slot video card like the 8800GTX will block 1 or both plugs. I just barely got the firewire plug for the front panel of the P180B into the motherboard. There's no way I can use the 2nd plug. But then I don't own any firewire drives so it's not that big a deal. Just a FYI for everyone else. LAN cards use PCI bus instead of PCI-Express so if you have extreme network demands, you may want to look into how this might affect performance. For overclockers, be careful of vdroop. It seems to be a bit higher than I'd like but thankfully the Q6600 is such an awesome processor. More on vdroop and my settings below.
Overall Review: I'm running: Q6600 OCed to 3.2 GHz (8x400), Crucial Ballistix 2x1GB DDR2 800 4-4-4-12 (BL2KIT12864AA804), EVGA 8800GTX, 2 SATA HD's (WD3200AAKS) and a SATA dvd burner (Samsung SH-S203B). I set vcore to 1.325 and it vdroops down to 1.3 while idling and at load it goes down to around 1.25-1.28, but stays completely stable. I've seen it at 1.24 before too. Note 1.275 is the stock voltage and my Q6600 is OCed 33%! But that's a virtue of the CPU. I've found Newegg's user review system is very consistent in pointing out reliable products. After doing my own research, I decided to go with Abit for my P35 board because of neglible differences between Abit and the other brands. Why? This board consistently gets 5 eggs compared to the others with 4. Another thing - if you're getting blue screens it's very likely something's not getting enough voltage or your BIOS settings are messed up. Try resetting CMOS and make incremental changes to determine where the problem is.
