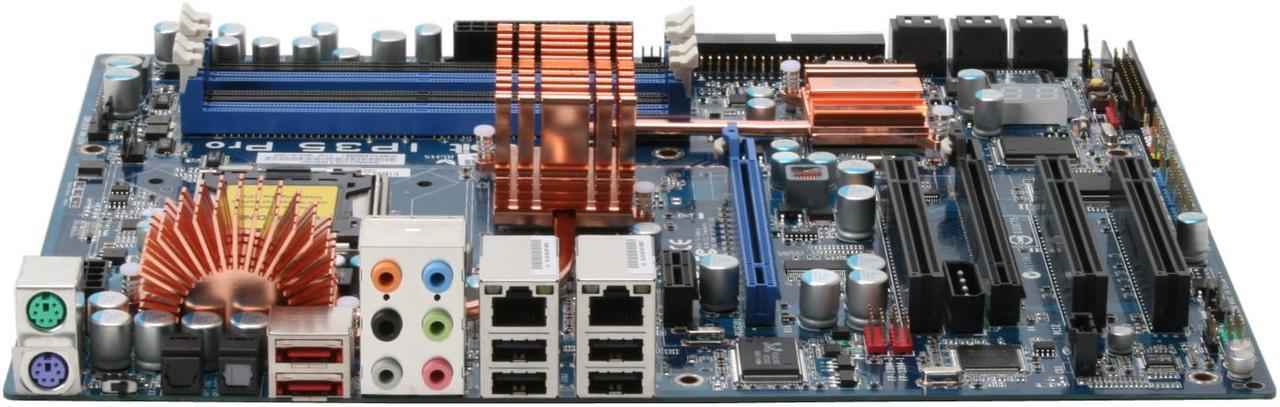

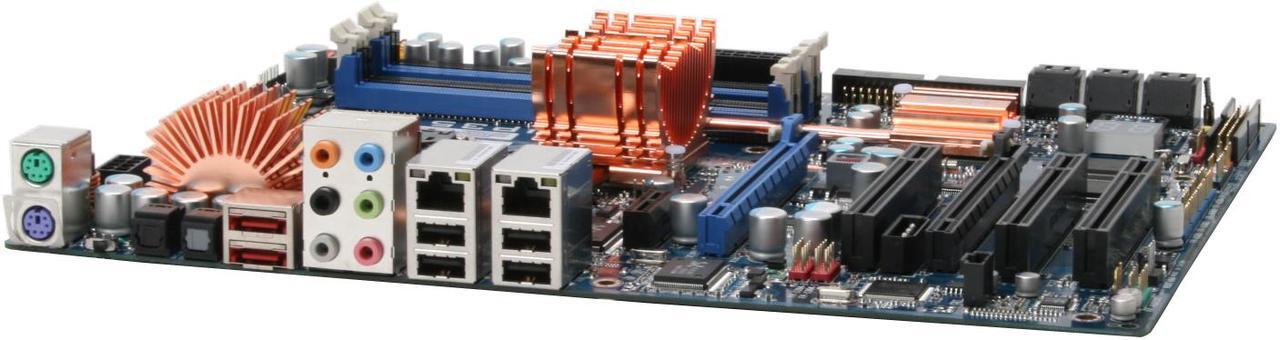

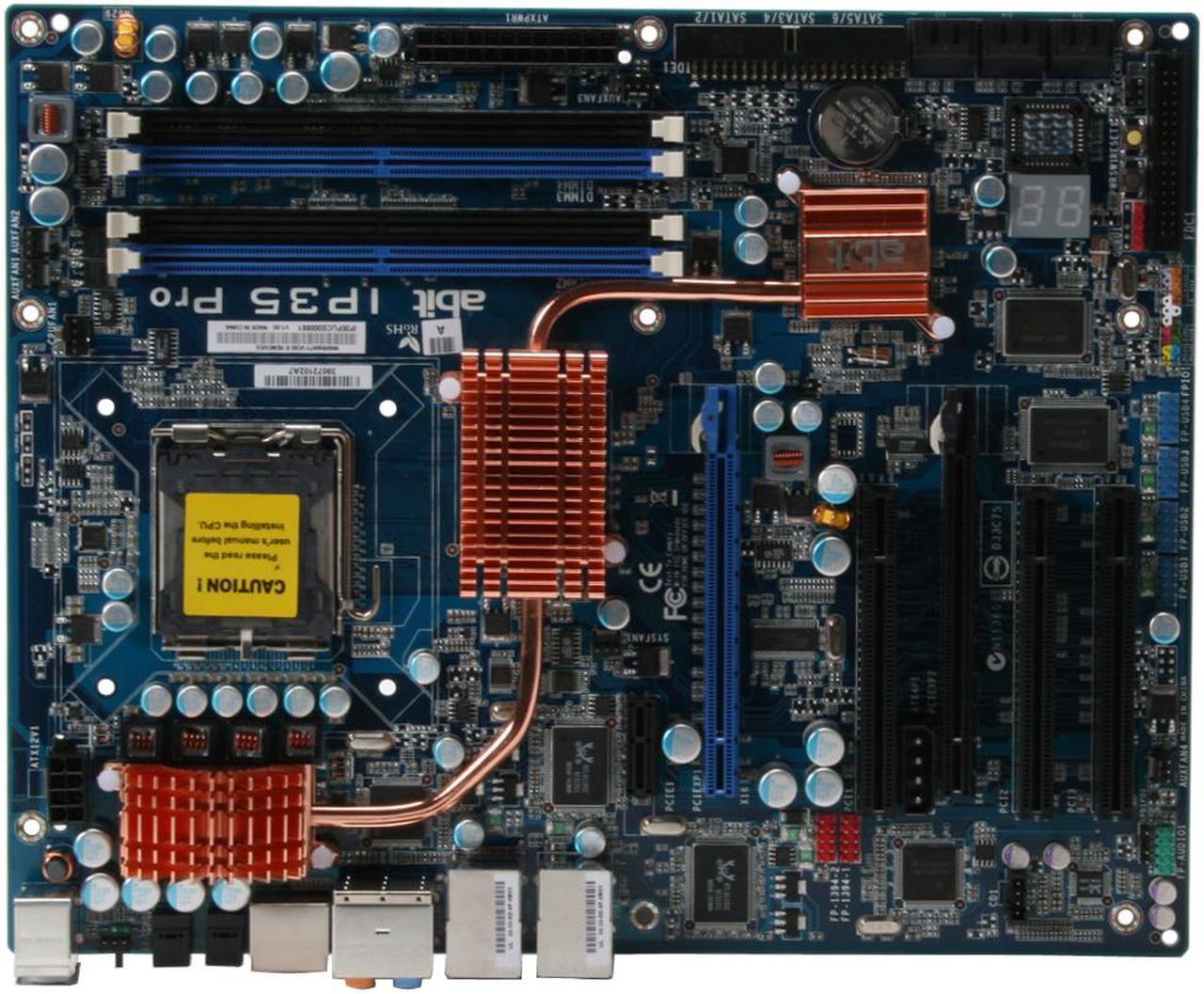

    ABIT IP35 Pro LGA 775 Intel P35 ATX Intel Motherboard

    Used - Very Good Product Type

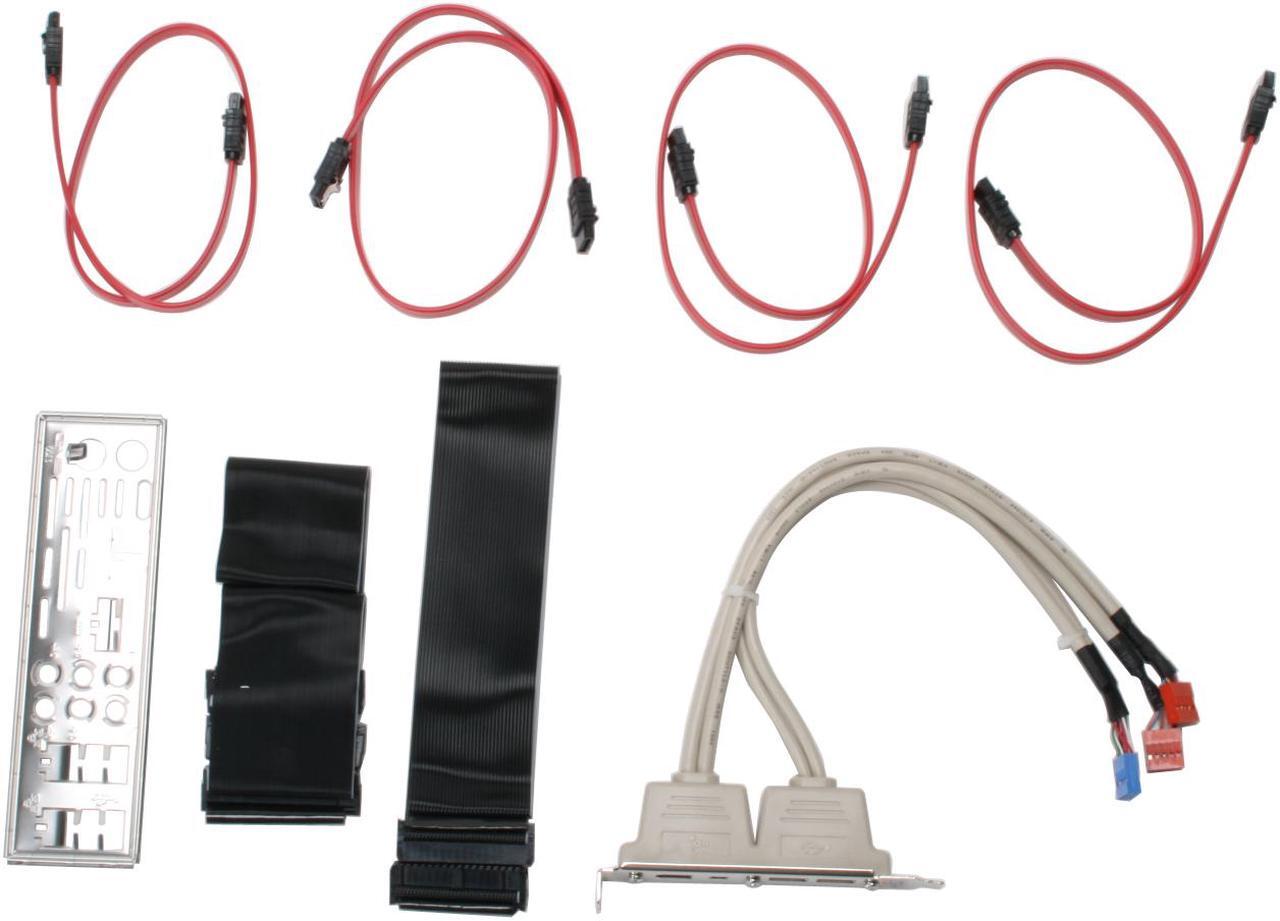

    Comes with motherboard, IO shield only, SATA cable, and thermal paste. No additional accessories.
    • Intel P35
    • Core 2 Duo / Core 2 Extreme / Core 2 Quad
    • DDR2 800
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the Universal abit USA IP35 Pro

    Model
    Brand ABIT
    Model IP35 Pro
    Supported CPU
    CPU Socket Type LGA 775
    CPU Type Core 2 Duo / Core 2 Extreme / Core 2 Quad
    FSB 1333/1066 MHz
    Chipsets
    Chipset Intel P35
    South Bridge Intel ICH9R
    Onboard Video
    Onboard Video Chipset None
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 800
    Maximum Memory Supported 8GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x16 1 x PCI-E X16, 1 x PCI-E X16 (x4 bandwidth)
    PCI Express x1 1 x PCI Express x1
    PCI Slots 3 x PCI Slots
    Storage Devices
    PATA 1 x ATA100 2 Dev. Max
    SATA 3Gb/s 6 x SATA 3Gb/s
    SATA RAID 6 x SATA 3Gb/s offer by Intel ICH9R support Intel Matrix Storage Tech(AHCI & RAID0/1/5/10)
    2 x eSATA 3Gb/s through JMicron JMB363 support 0,1JBOD RAID function
    Additional RAID Controller JMicron JMB363
    Onboard Audio
    Audio Chipset Realtek ALC888
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8110SC
    Second LAN Chipset Realtek 8110SC
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports
    PS/2 2
    USB 1.1/2.0 4 x USB 2.0
    eSATA 2 x eSATA 3Gb/s
    S/PDIF Out 1 x Optical
    S/PDIF In 1 x Optical
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 6 x USB 2.0
    Onboard 1394 2 x 1394a
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Packaging
    Package Contents IP35 Pro
    Driver Disk
    User Manual
    Rear I/O Panel Shield
    IDE/PATA Cable
    FDD Cable
    SATA Cable
    IEEE 1394 & USB Bracket
    Details
    Windows Vista Certified for Windows Vista
    Additional Information
    Date First Available June 10, 2021
