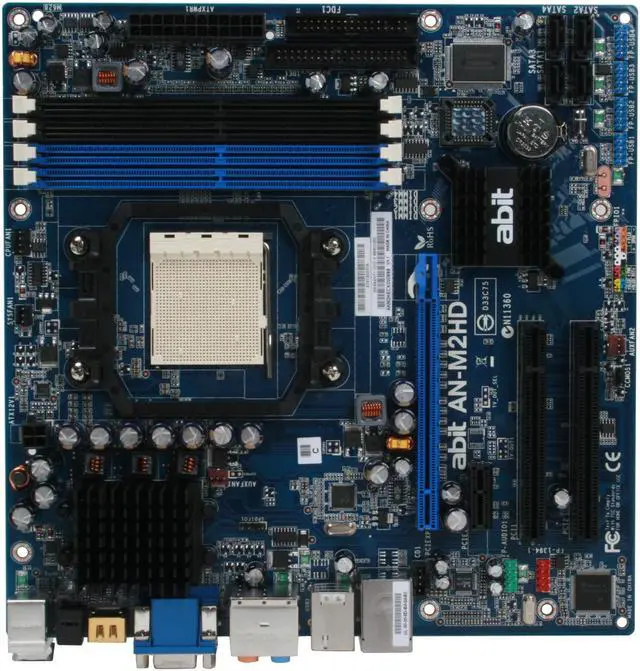

ABIT AN-M2HD (LE) AM2+/AM2 GeForce7050PV/ nForce630a HDMI Micro ATX AMD Motherboard
- GeForce7050PV/ nForce630a
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (24)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Universal abit USA AN-M2HD (LE)
| Brand | ABIT |
|---|---|
| Model | AN-M2HD (LE) |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | GeForce7050PV/ nForce630a |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Onboard Video Chipset | NVIDIA GeForce 7050PV |
|---|
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|

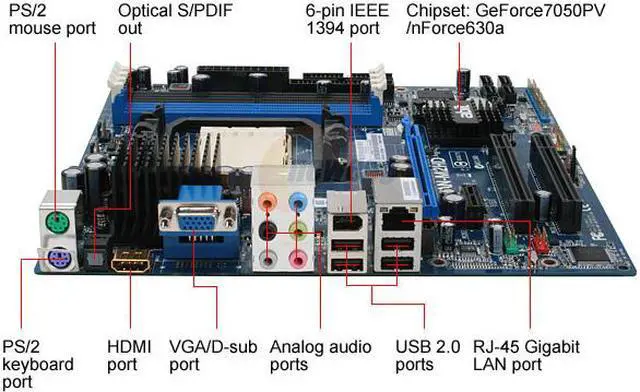

| PS/2 | 2 |
|---|---|
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| First Listed on Newegg | February 21, 2008 |
|---|
