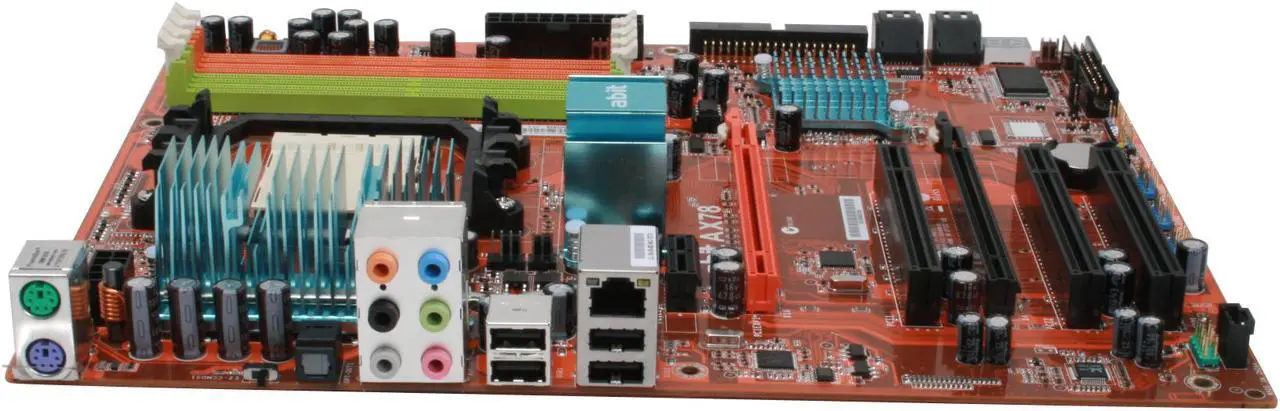

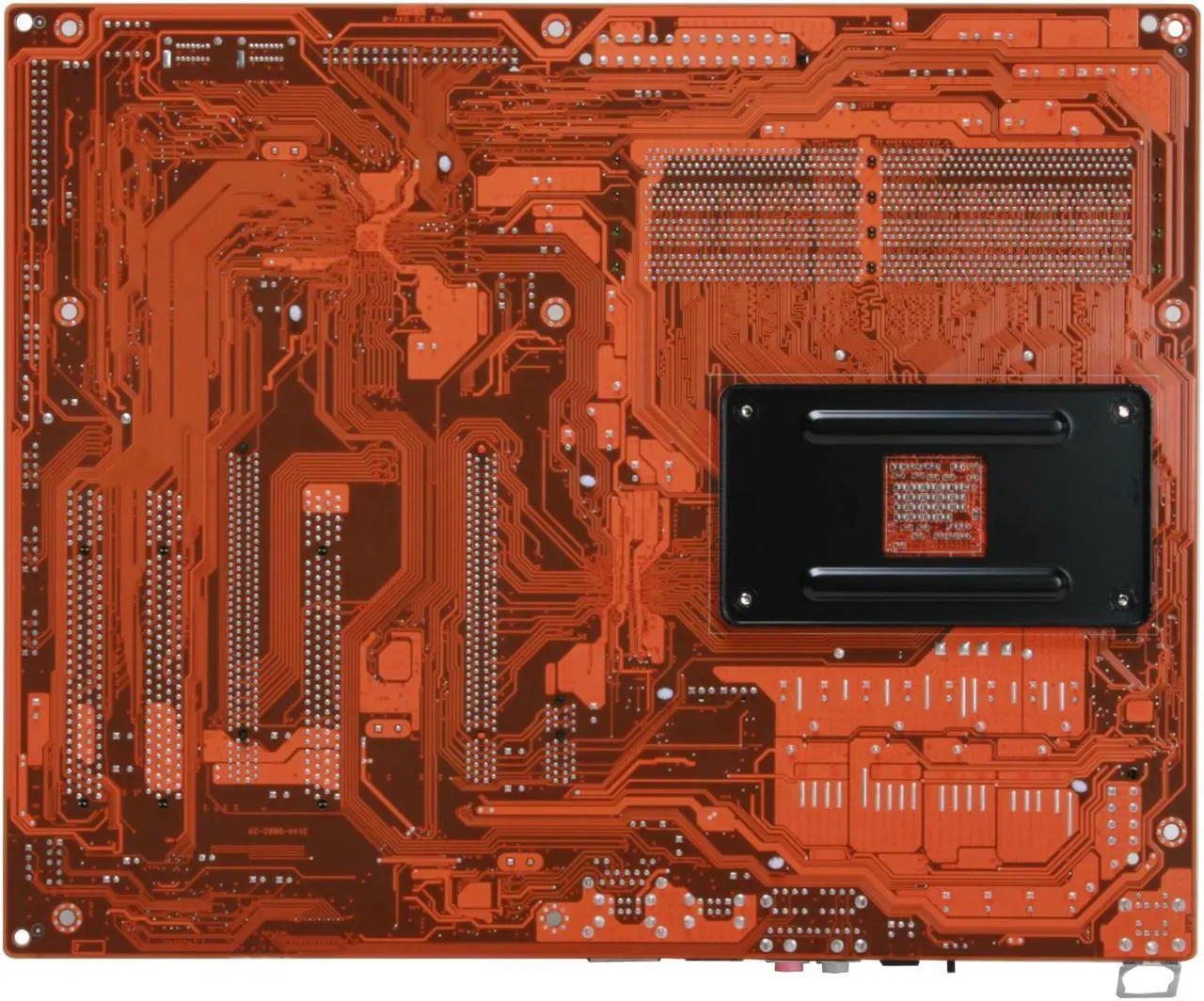

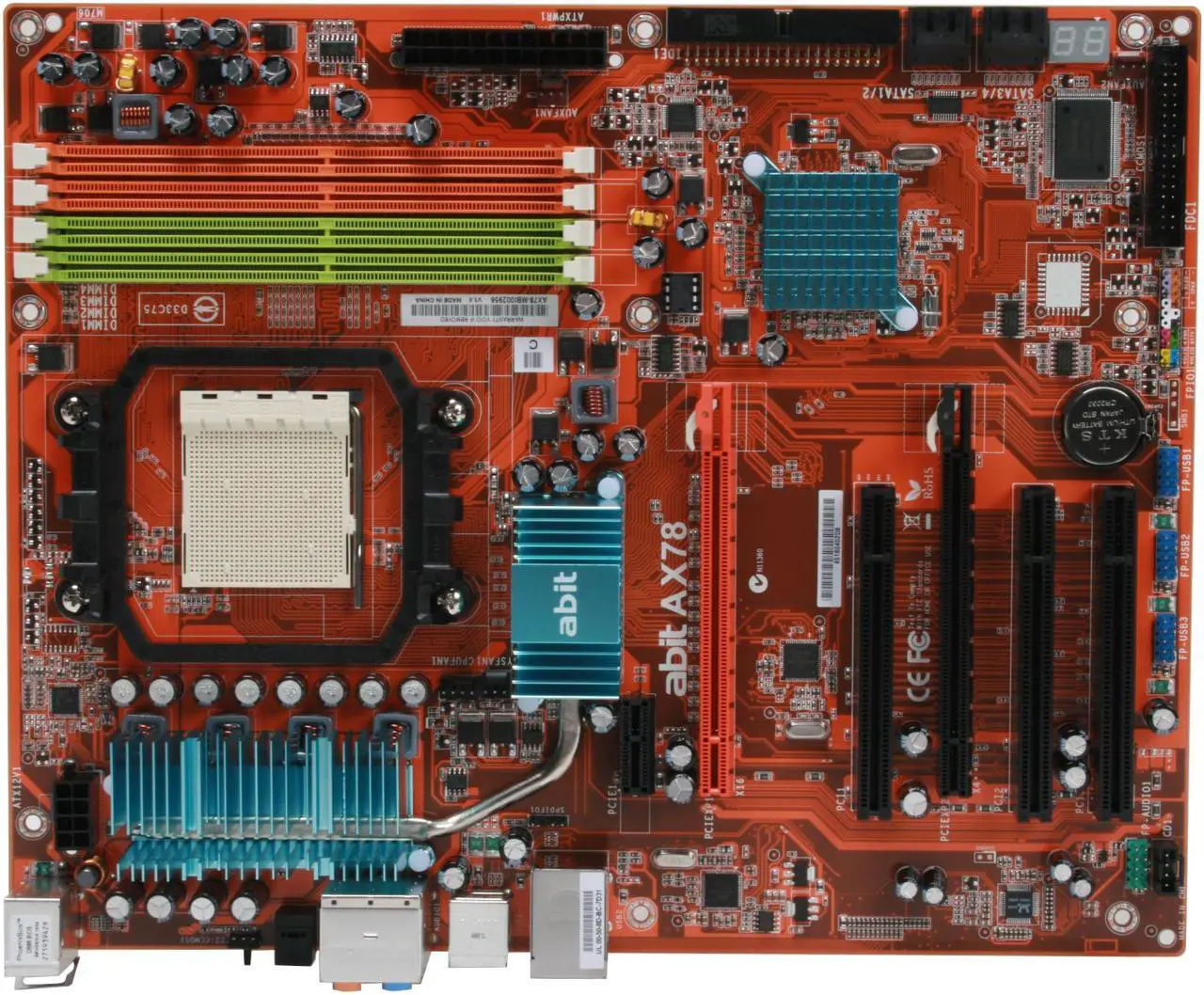

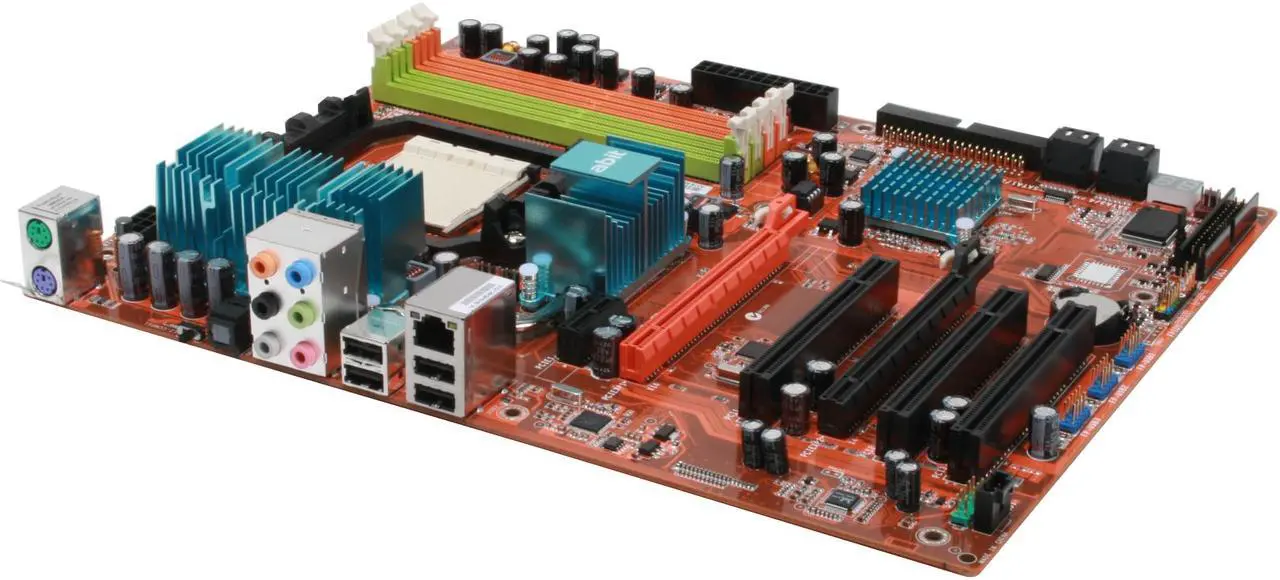

ABIT AX78 AM2+/AM2 AMD 770 ATX AMD Motherboard

  • AMD 770
  • Phenom / Athlon 64 X2 / Athlon 64 / Sempron
  • DDR2 1066* / 800 *DDR2 1066 is supported by CPU AM2+ only
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (44)

Learn more about the Universal abit USA AX78

Model
Brand ABIT
Model AX78
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom / Athlon 64 X2 / Athlon 64 / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 770
South Bridge AMD SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066* / 800
*DDR2 1066 is supported by CPU AM2+ only
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI-E X16 (1x16; 1x4 bandwidth)
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features abit SoftMenu
abit Silent OTES
EZ CCMOS Switch
100% lead-free process and RoHS Compliant
Additional Information
Date First Available February 26, 2008
