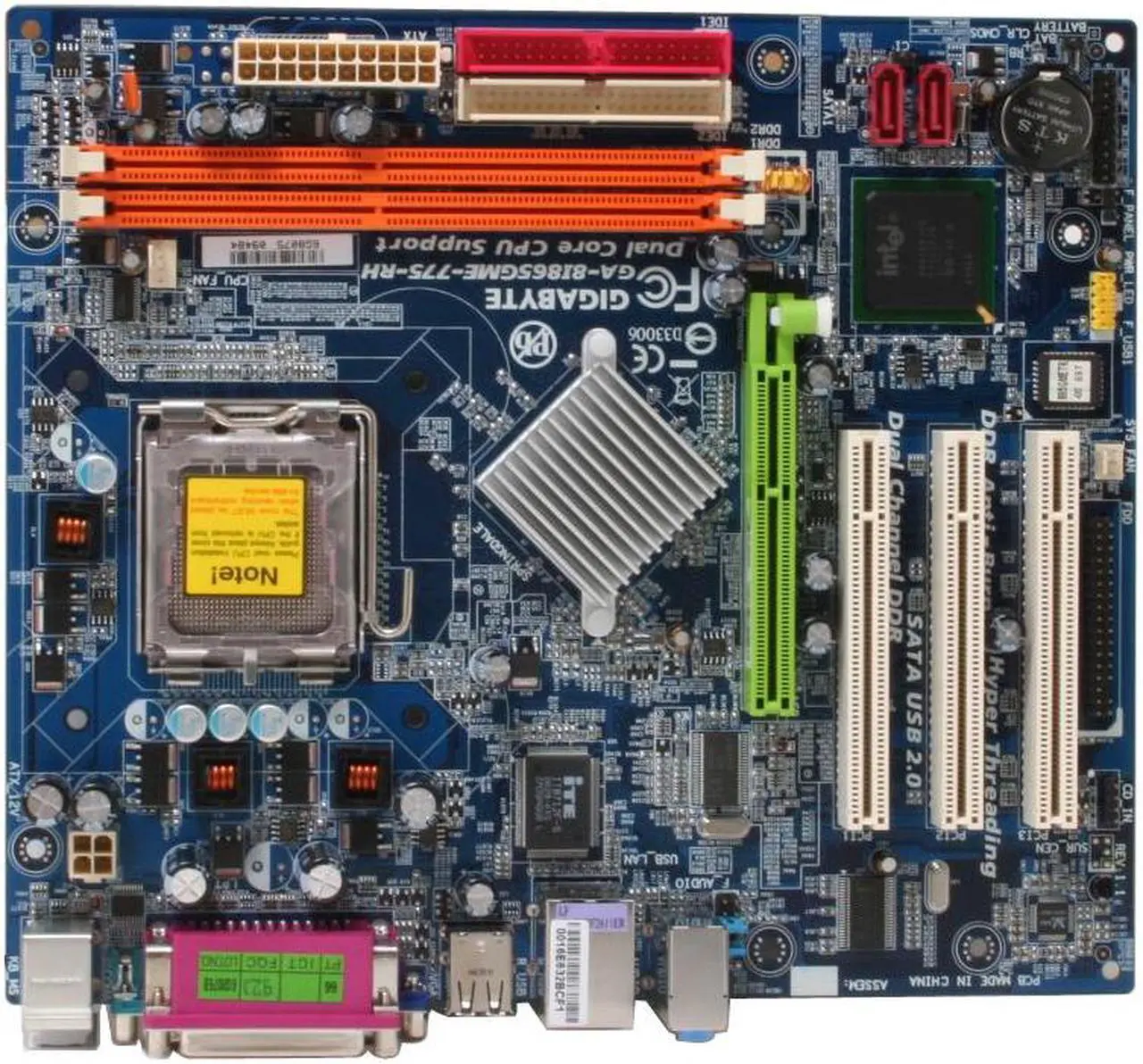

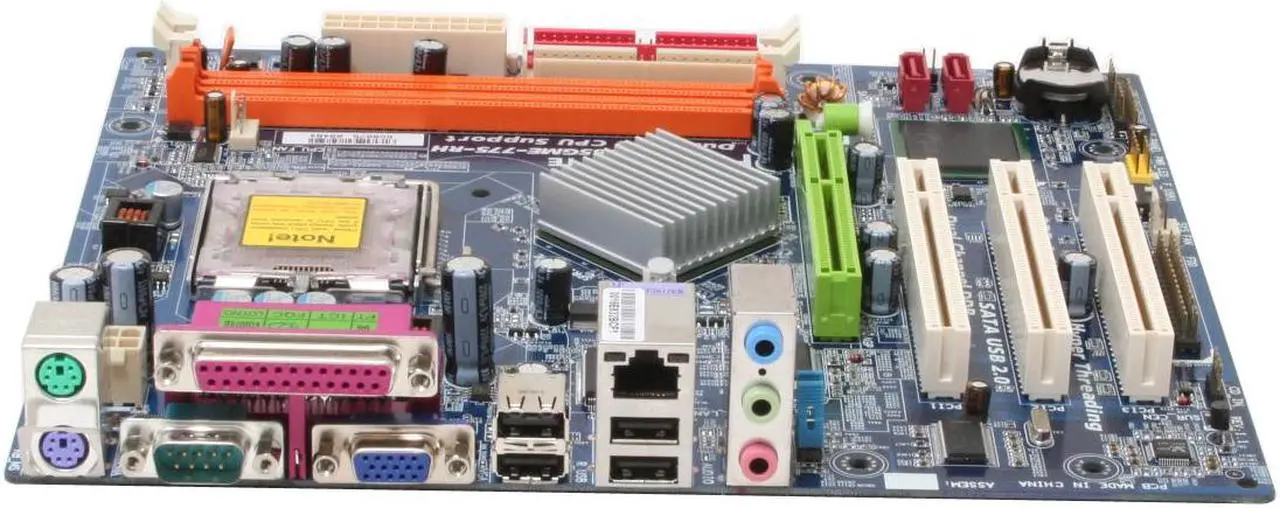

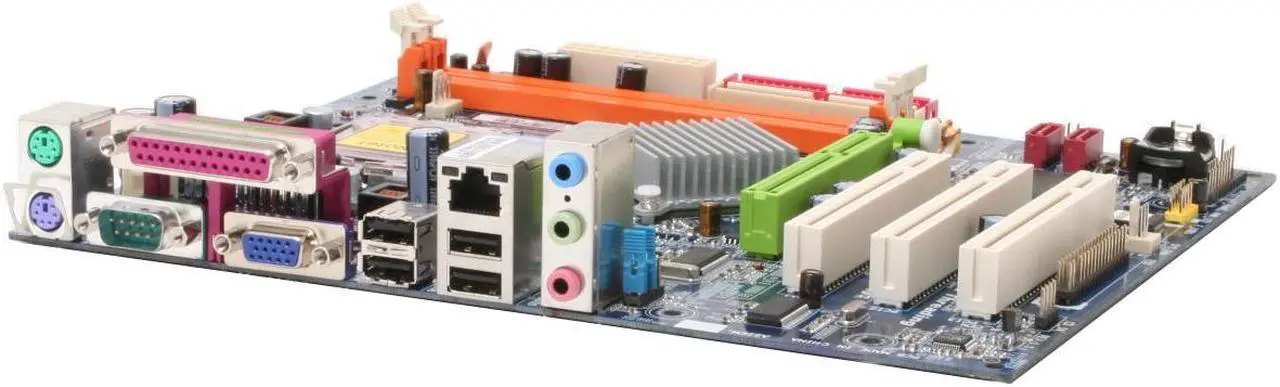

GIGABYTE GA-8I865GME-775-RH LGA 775 Intel 865G Micro ATX Intel Motherboard
- Intel 865G
- Pentium D / Pentium 4 HT / Celeron D
- DDR 400
Specs
Reviews (54)
Learn more about the GIGABYTE GA-8I865GME-775-RH
| Brand | GIGABYTE |
|---|---|
| Model | GA-8I865GME-775-RH |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium D / Pentium 4 HT / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865G |
|---|---|
| South Bridge | Intel ICH5 |
| Onboard Video Chipset | Intel Extreme2 Graphics |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | Realtek ALC653 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | EP82562G |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.4" |
| Power Pin | 20 Pin |

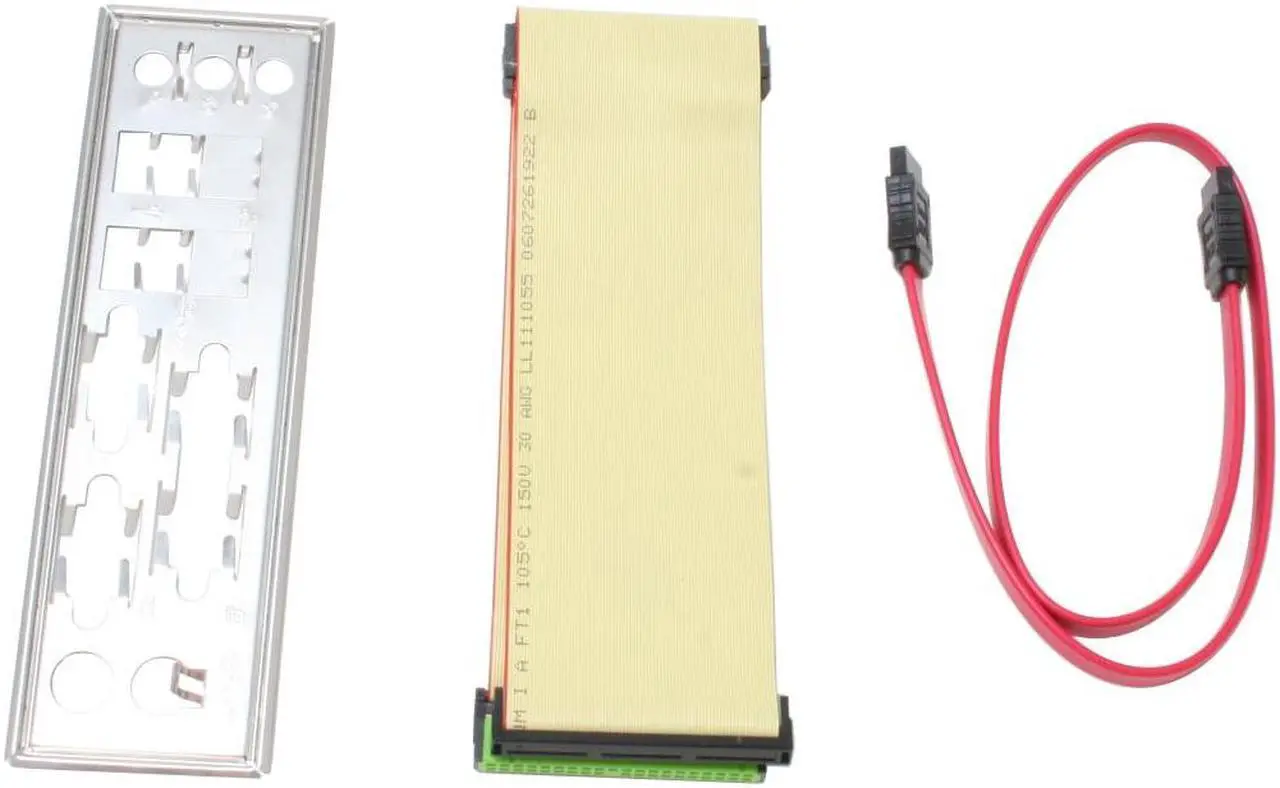

| Package Contents | GA-8I865GME-775-RH User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable SATA Cable |
|---|
| Date First Available | October 18, 2006 |
|---|
