GIGABYTE GA-N650SLI-DS4 LGA 775 NVIDIA nForce 650i SLI ATX Intel Motherboard
- NVIDIA nForce 650i SLI
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews (85)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-N650SLI-DS4
| Brand | GIGABYTE |
|---|---|
| Model | GA-N650SLI-DS4 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1333/1066 MHz |
| Chipset | NVIDIA nForce 650i SLI |
|---|---|
| South Bridge | NVIDIA MCP51 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB Due to the limitation of Windows 32-bit operating system, when more than 4 GB of physical memory is installed, the actual memory available for the operating system will be less than 4 GB; Windows 64-bit operating system doesn't have such limitation |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 In SLI Mode, the two PCIE x16 slots can run at up to x8 respectively. In Normal Mode, only the first PCIE x 16 slot (PCIE_16_1) is available and can run at up to x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E1116 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

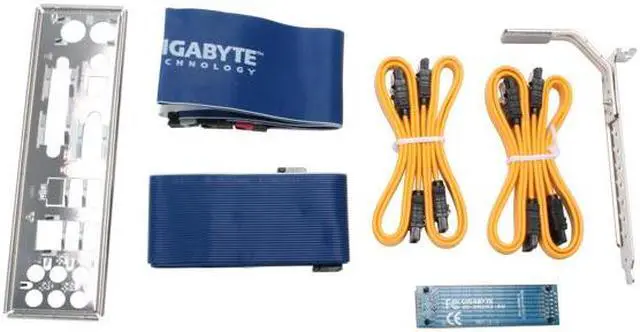

| Package Contents | GA-N650SLI-DS4 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cables SLI Bridge SLI Retention Bracket |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | April 19, 2007 |
|---|
