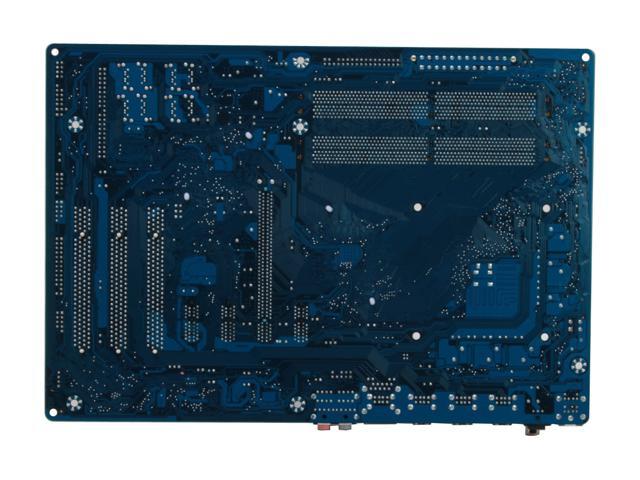

GIGABYTE GA-P35-DS3R LGA 775 Intel P35 ATX Intel Motherboard

Used - Very Good Product Type
In stock.
Ships from United States.
  • Intel P35
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 1200 (O.C.) / 1066 / 800 (Only support the memory on the Memory Support List on the official website)
Specs

Learn more about the GIGABYTE GA-P35-DS3R

Model
Brand GIGABYTE
Model GA-P35-DS3R
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600 (O.C.)/1333/1066MHz
Chipsets
Chipset Intel P35
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR2 1200 (O.C.) / 1066 / 800
(Only support the memory on the Memory Support List on the official website)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 3 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 8 x SATA 3Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111B
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 8 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features ULTRA DURABLE 2, ULTRA COOLING
Packaging
Package Contents GA-P35-DS3R
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
e-SATA Bracket
e-SATA Cable & Power Cord
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available March 01, 2021
