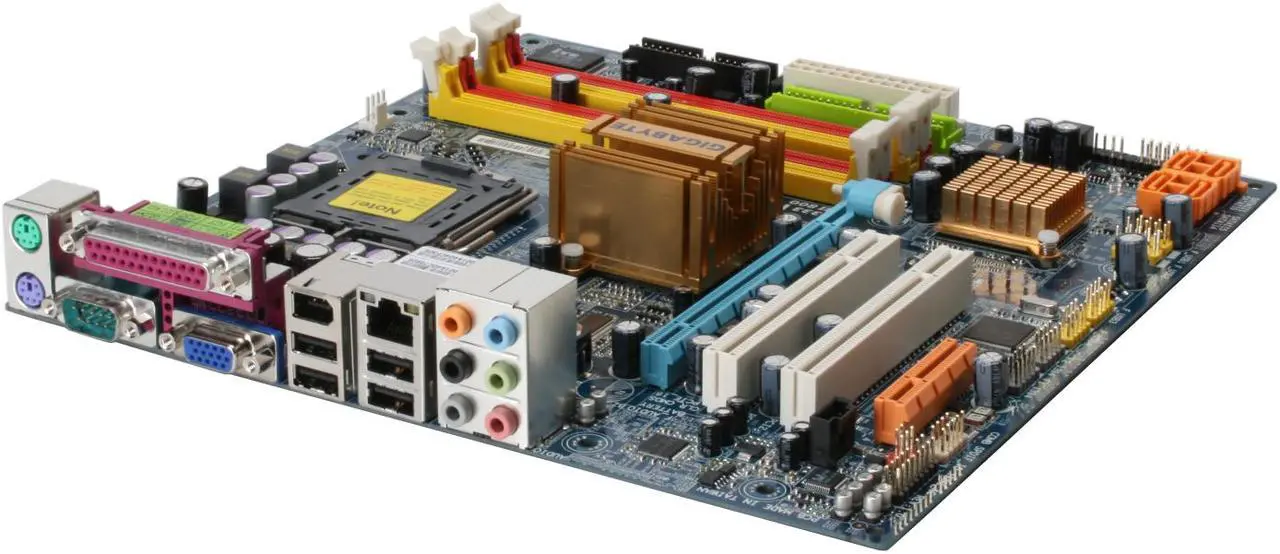

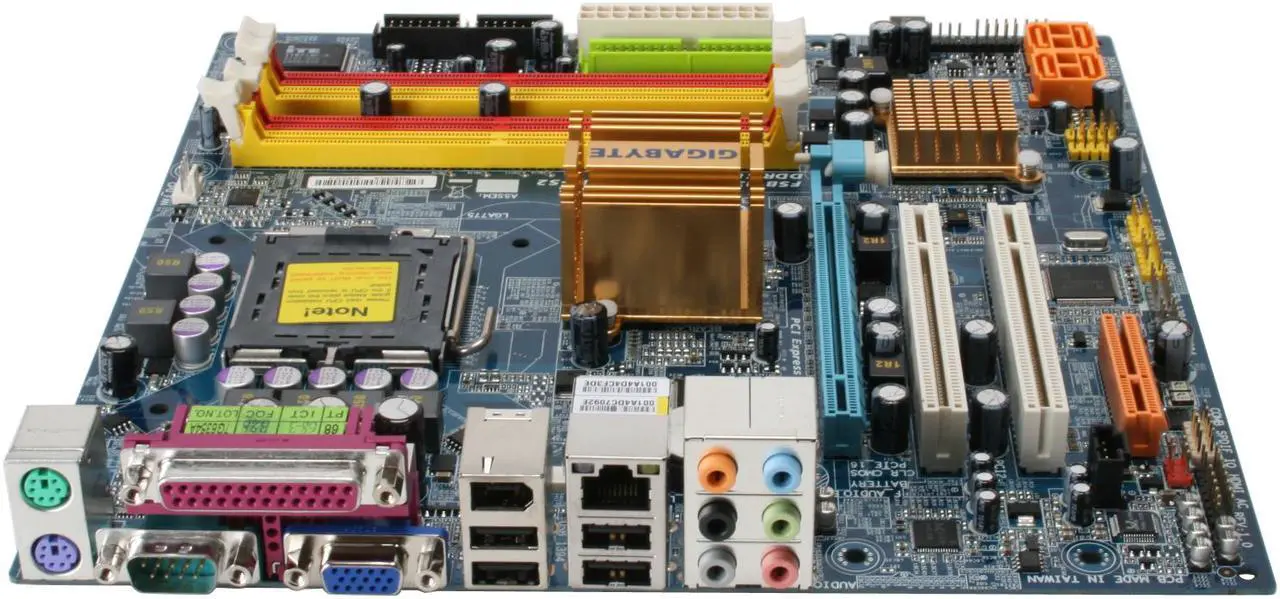

GIGABYTE GA-G33M-S2 LGA 775 Intel G33 Micro ATX Intel Motherboard

(11) Write a Review
  • Intel G33
  • Quad-core / Core 2 Extreme / Core 2 Duo / Pentium Extreme / Pentium D
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (11)

Learn more about the GIGABYTE GA-G33M-S2

Model
Brand GIGABYTE
Model GA-G33M-S2
Supported CPU
CPU Socket Type LGA 775
CPU Type Quad-core / Core 2 Extreme / Core 2 Duo / Pentium Extreme / Pentium D
FSB 1333/1066/800MHz
Chipsets
Chipset Intel G33
South Bridge Intel ICH9
Onboard Video
Onboard Video Chipset Intel GMA 3100
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x4 1 x PCI Express x4
PCI Slots 2 x PCI Slots
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek RTL8111B
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 8 x USB 2.0
Onboard 1394 2 x 1394a
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available July 26, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
