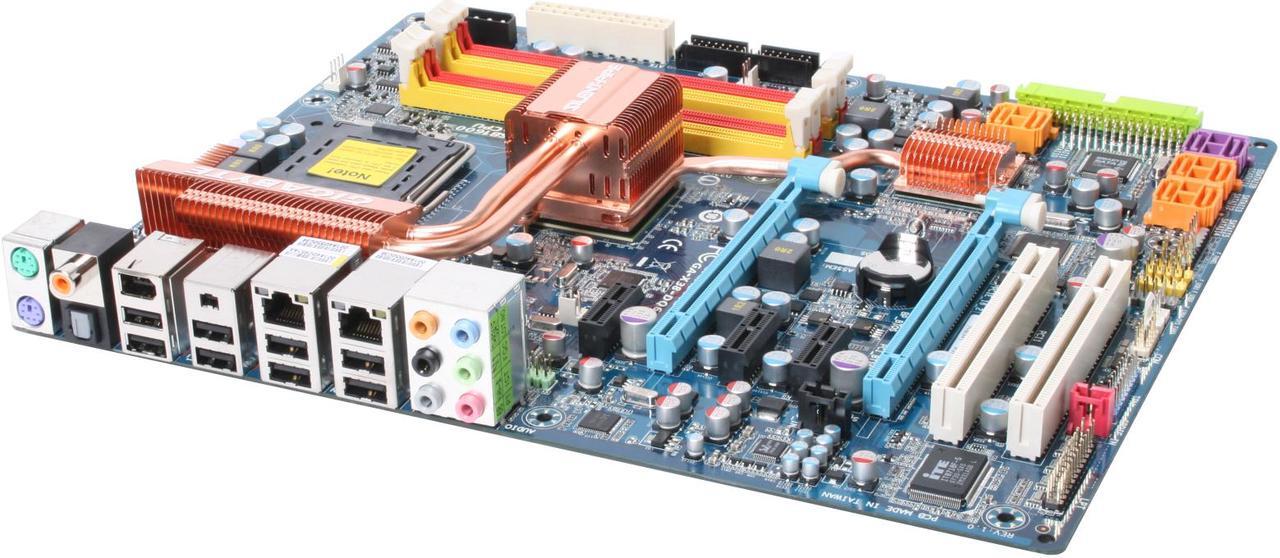

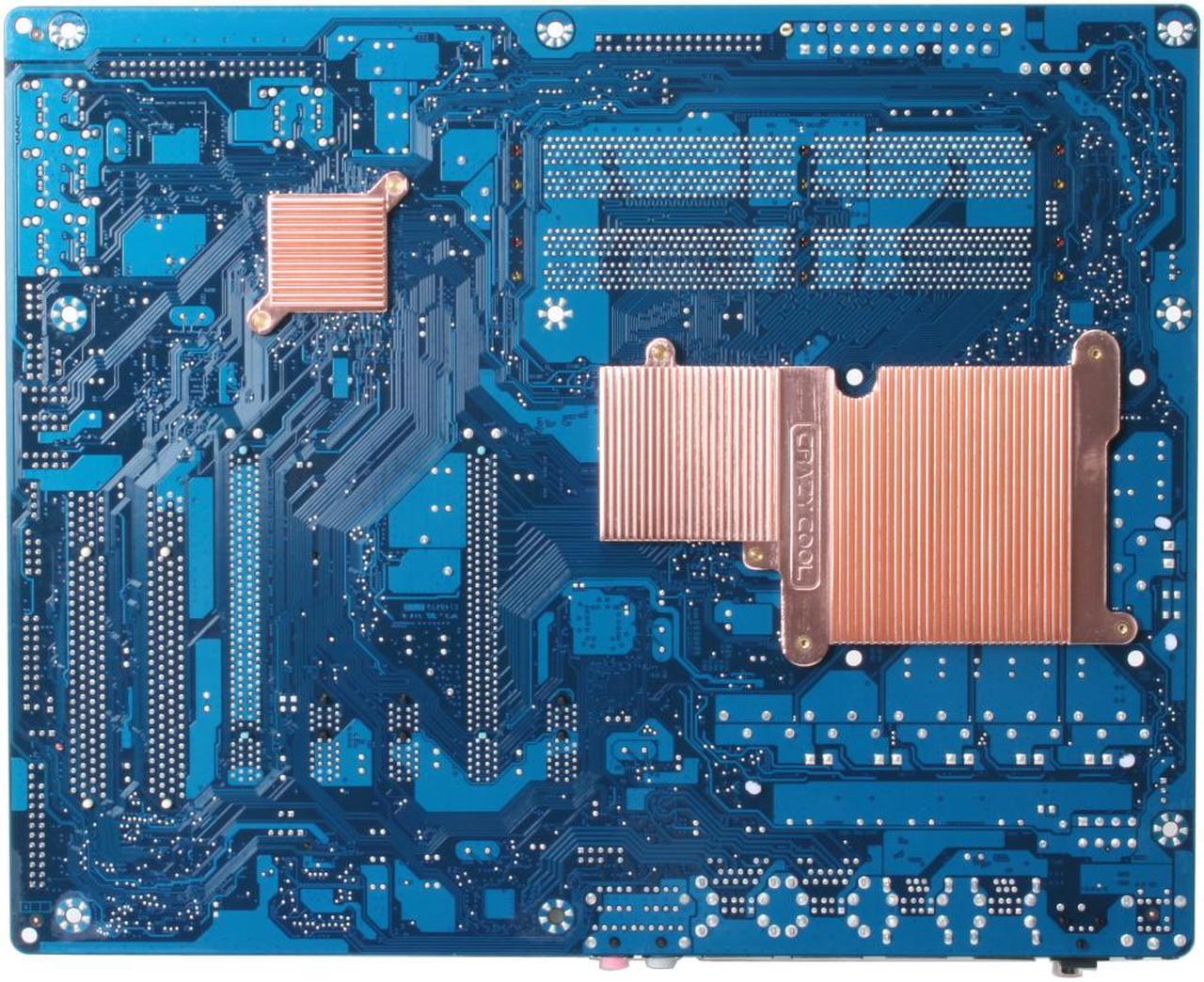

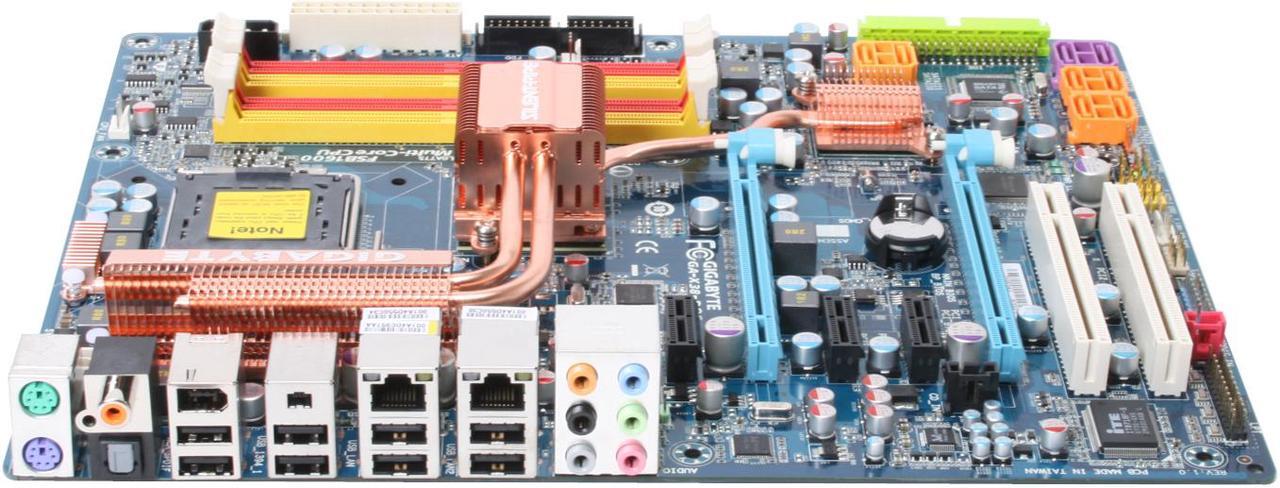

GIGABYTE GA-X38-DQ6 LGA 775 Intel X38 ATX Ultra Durable 2, Ultra Cooling Intel Motherboard
- Intel X38
- Quad-core / Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium D / Pentium 4
- DDR2 1066
Specs
Reviews (101)
Learn more about the GIGABYTE GA-X38-DQ6
| Brand | GIGABYTE |
|---|---|
| Model | GA-X38-DQ6 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Quad-core / Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium D / Pentium 4 |
| FSB | 1600/1333 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel X38 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 Matrix RAID |
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 2 x 1Gbps |
|---|
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports Intel Core 2 multi-core and upcoming 45nm processors Support for 1600 MHz FSB. Dual Channel DDR2 1066 memory support for outstanding system performance. High quality CPU power module with Ferrite Core Chokes, Lower RDS (on) MOSFETs and Lower ESR Solid Capacitors. Re-engineered Thermal Design featuring All Copper Silent-Pipe and Crazy Cool. Japanese manufactured SMD All Solid Capacitor motherboard design. Supports CrossFire with Dual PCI-E 2.0 x16 graphics for extreme gaming performance. Features SATA 3Gb/s with Quad eSATA 2 interface. |
|---|

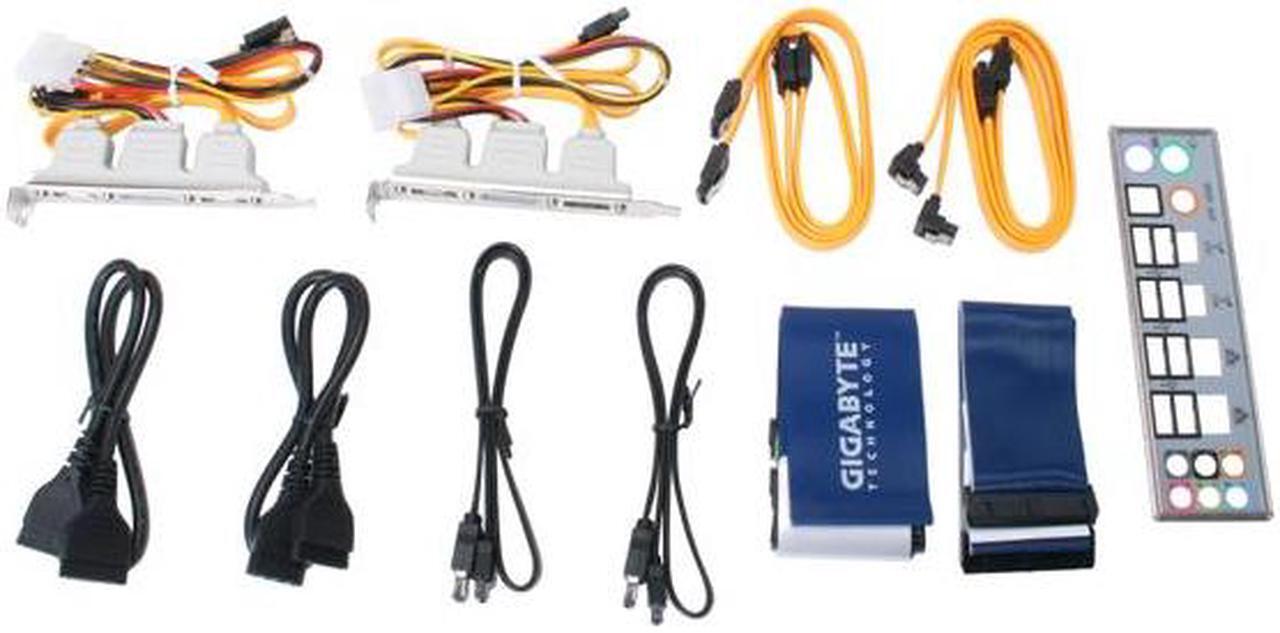

| Package Contents | GA-X38-DQ6 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x eSATA and Power Brackets 2 x eSATA Cables & 4-pin to eSATA Power Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | October 10, 2007 |
|---|
