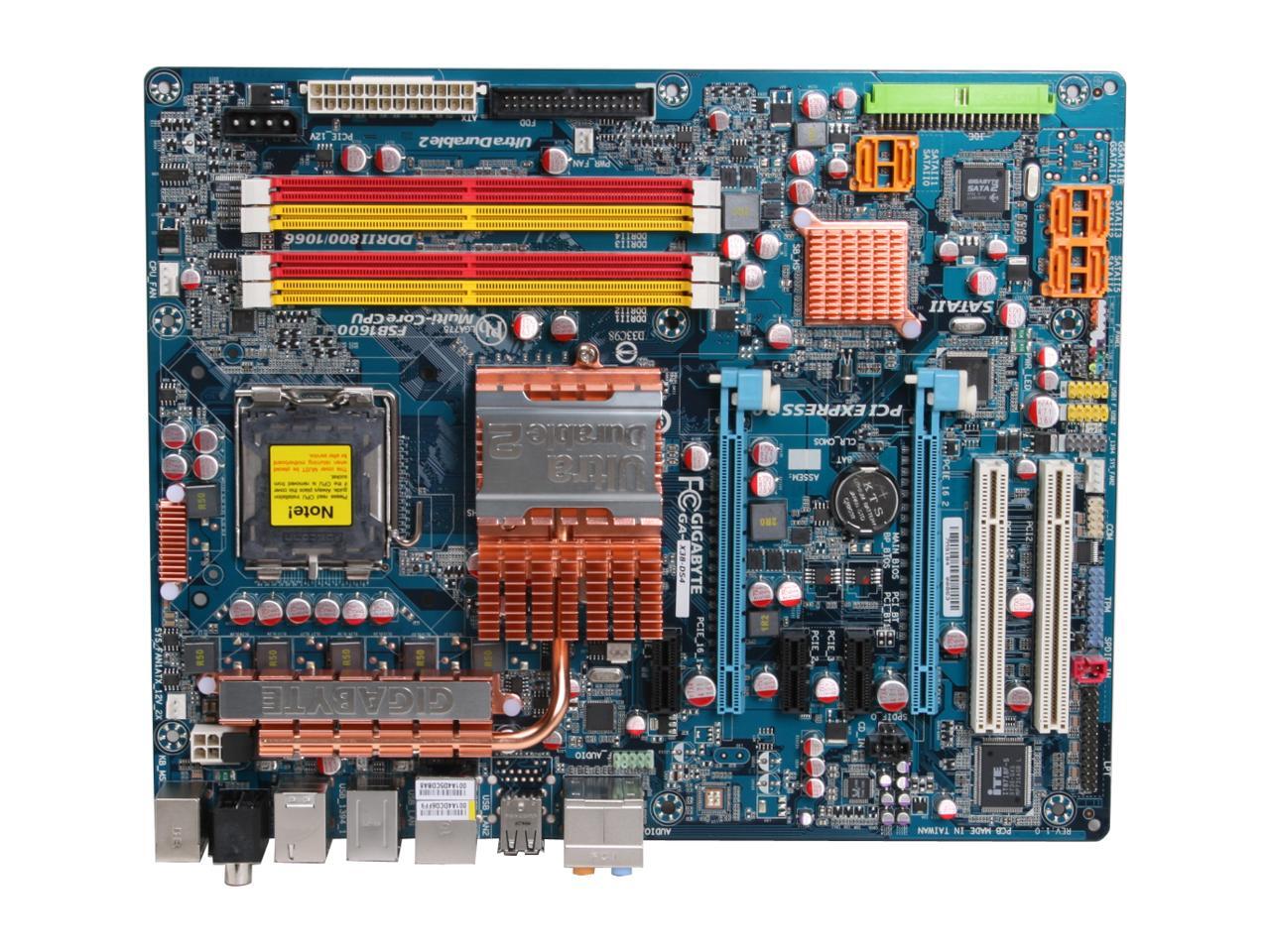

GIGABYTE GA-X38-DS4 LGA 775 Intel X38 ATX Intel Motherboard
OUT OF STOCK.
- Intel X38
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1200
Specs
Reviews
Learn more about the GIGABYTE GA-X38-DS4
| Brand | GIGABYTE |
|---|---|
| Model | GA-X38-DS4 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1600/1333 MHz |
| Chipset | Intel X38 |
|---|---|
| South Bridge | Intel ICH9R |
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR2 1200 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | December 26, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Replacement Only Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-854-9338
- Support Website
- View other products from GIGABYTE
LOADING...
LOADING...























Pros: This board works great. Put it together and worked on first boot. Running Vista 64bit, Core2 6300 @ 3.1GHZ, FSB 1720 w 4*1GB @ 860MHZ 4-4-4-12. Running F2 BIOS. Will upgrade to a Core2 E8400 upon release. I am also running Raid 0 and I did not need to use a boot floppy for Vista; Vista detected and auto loaded the raid drivers for the onboard Intel ICH9R.
Cons: Only con was the product support web link on NewEgg site directed me to a support page that doesn't have the latest BIOS on it (old BIOS F1) - You can find a newer BIOS here (new BIOS F2) - http://www.giga-byte.be/Support/Motherboard/BIOS_Model.aspx?ProductID=2736
