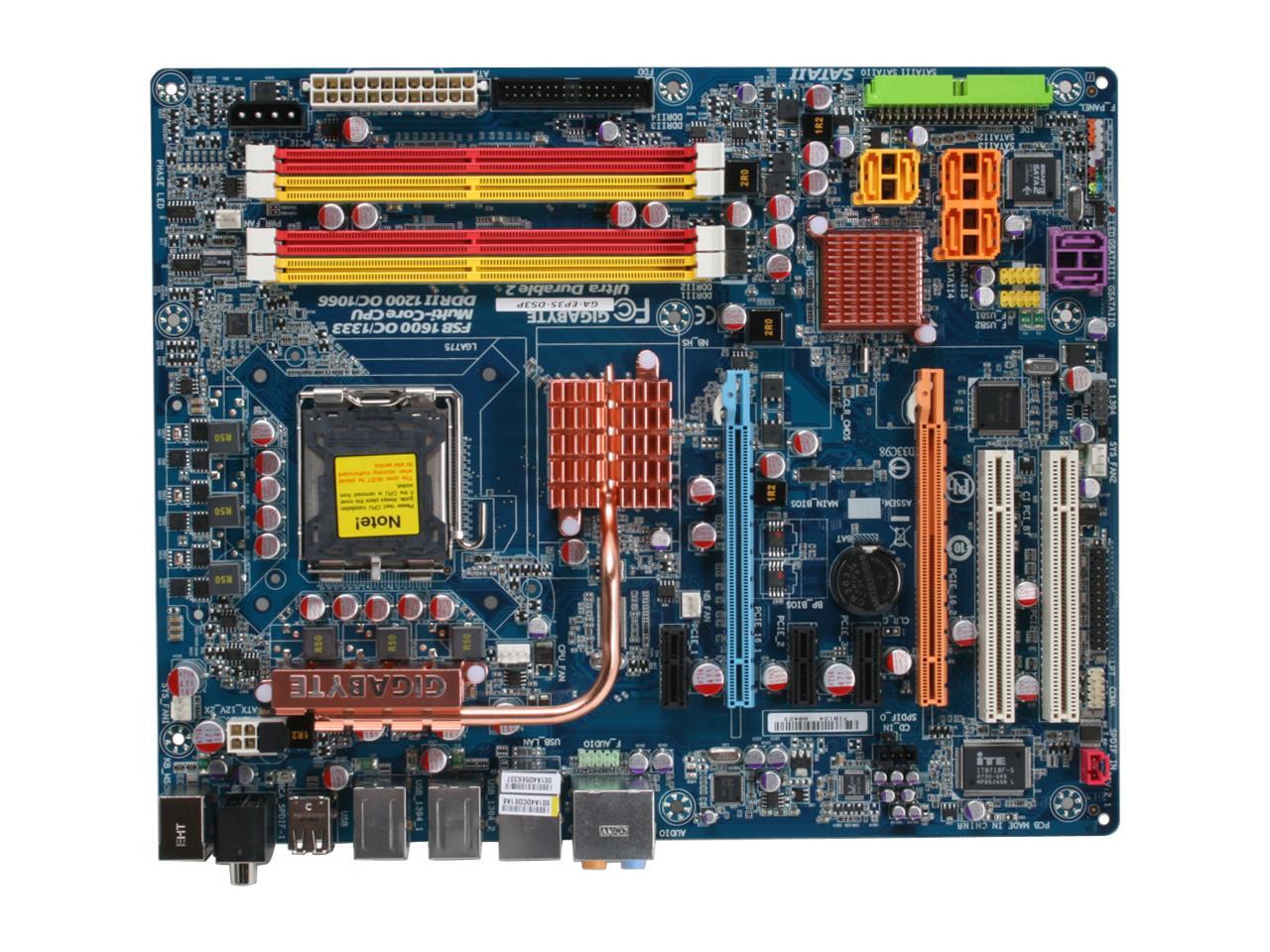

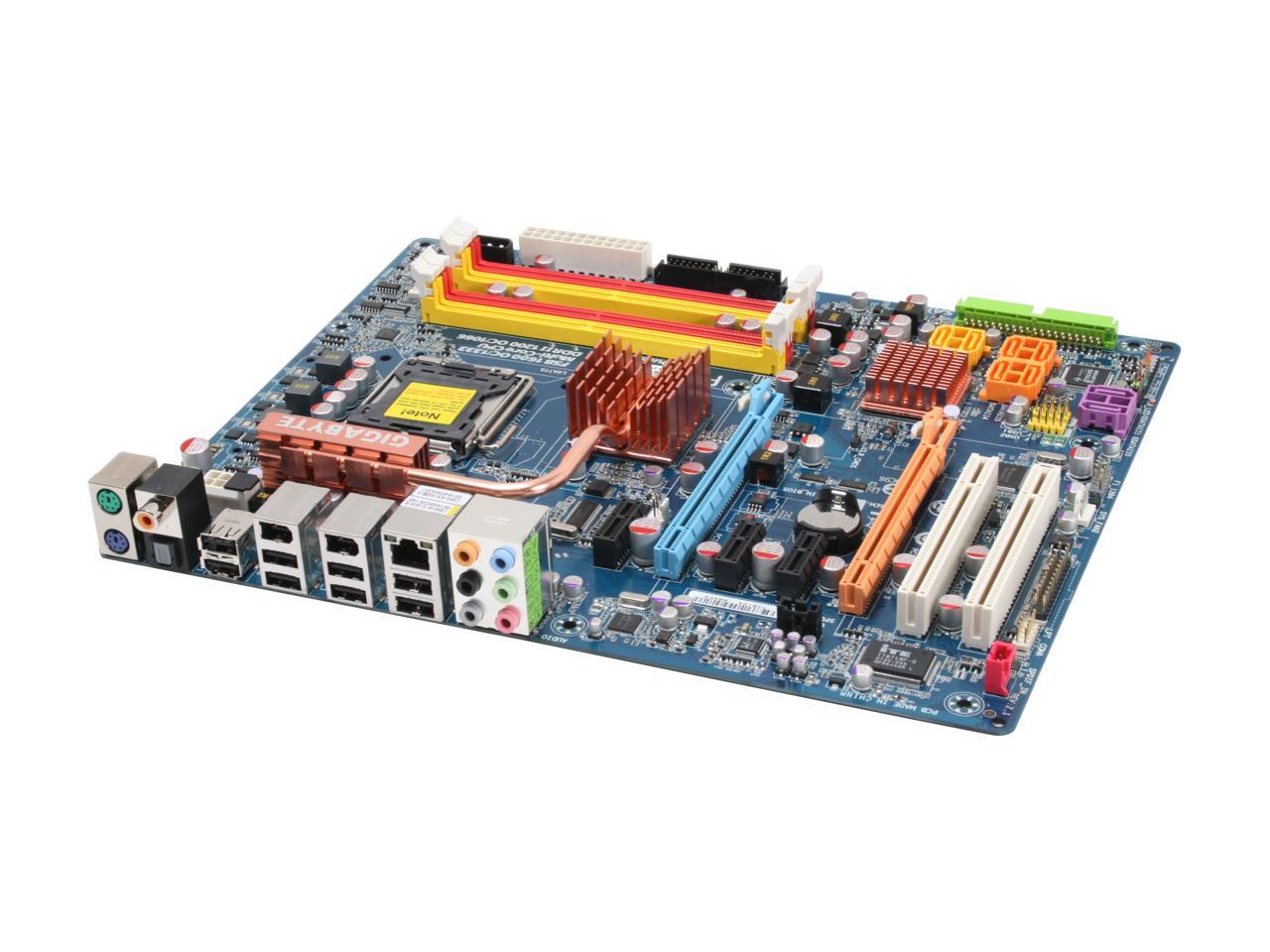

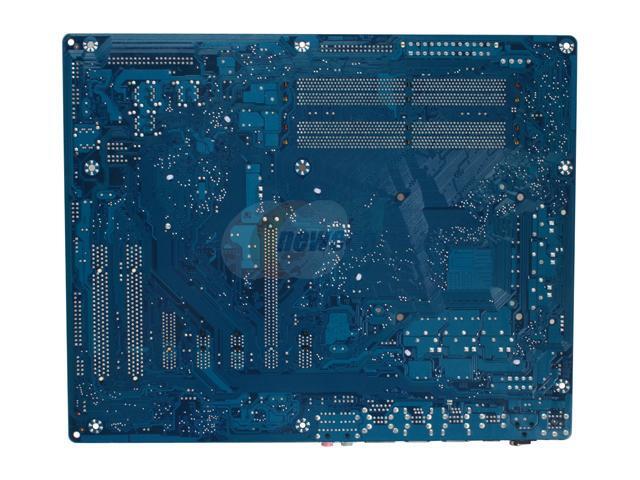

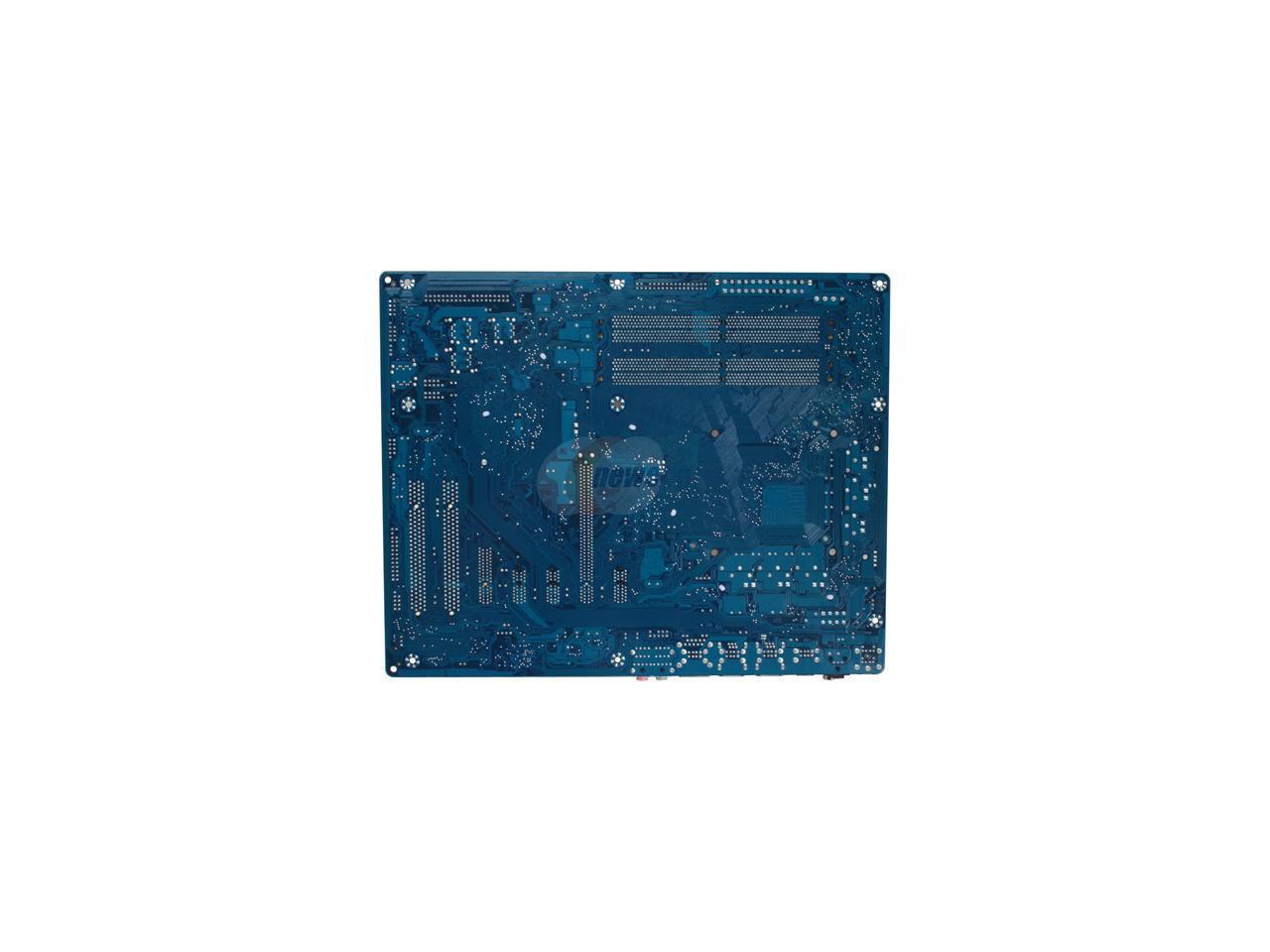

GIGABYTE GA-EP35-DS3P LGA 775 Intel P35 ATX Dynamic Energy Saver Ultra Durable II Intel Motherboard
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
Check more deals of "Intel Motherboards"
OUT OF STOCK.
- Intel P35
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1200 (O.C.)/1066
Specs
Reviews
Learn more about the GIGABYTE GA-EP35-DS3P
| Brand | GIGABYTE |
|---|---|
| Model | GA-EP35-DS3P |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1600 (O.C.)/1333/1066FSB |
| Chipset | Intel P35 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1200 (O.C.)/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x4.) |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 slots (share with the PCIE_16_2 slot) |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 8 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Additional RAID Controller | GIGABYTE SATA2 |
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 1Gbps |

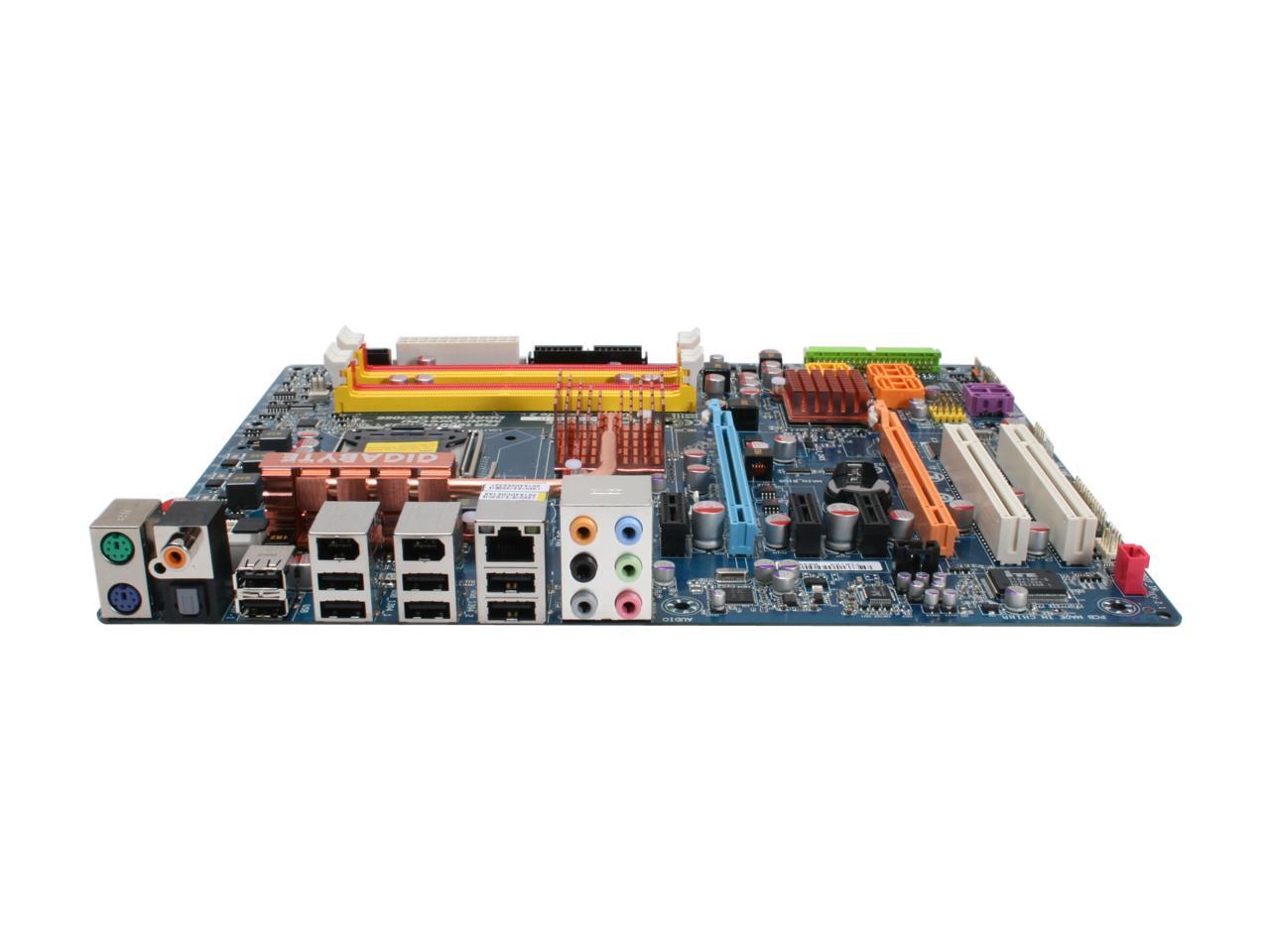

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

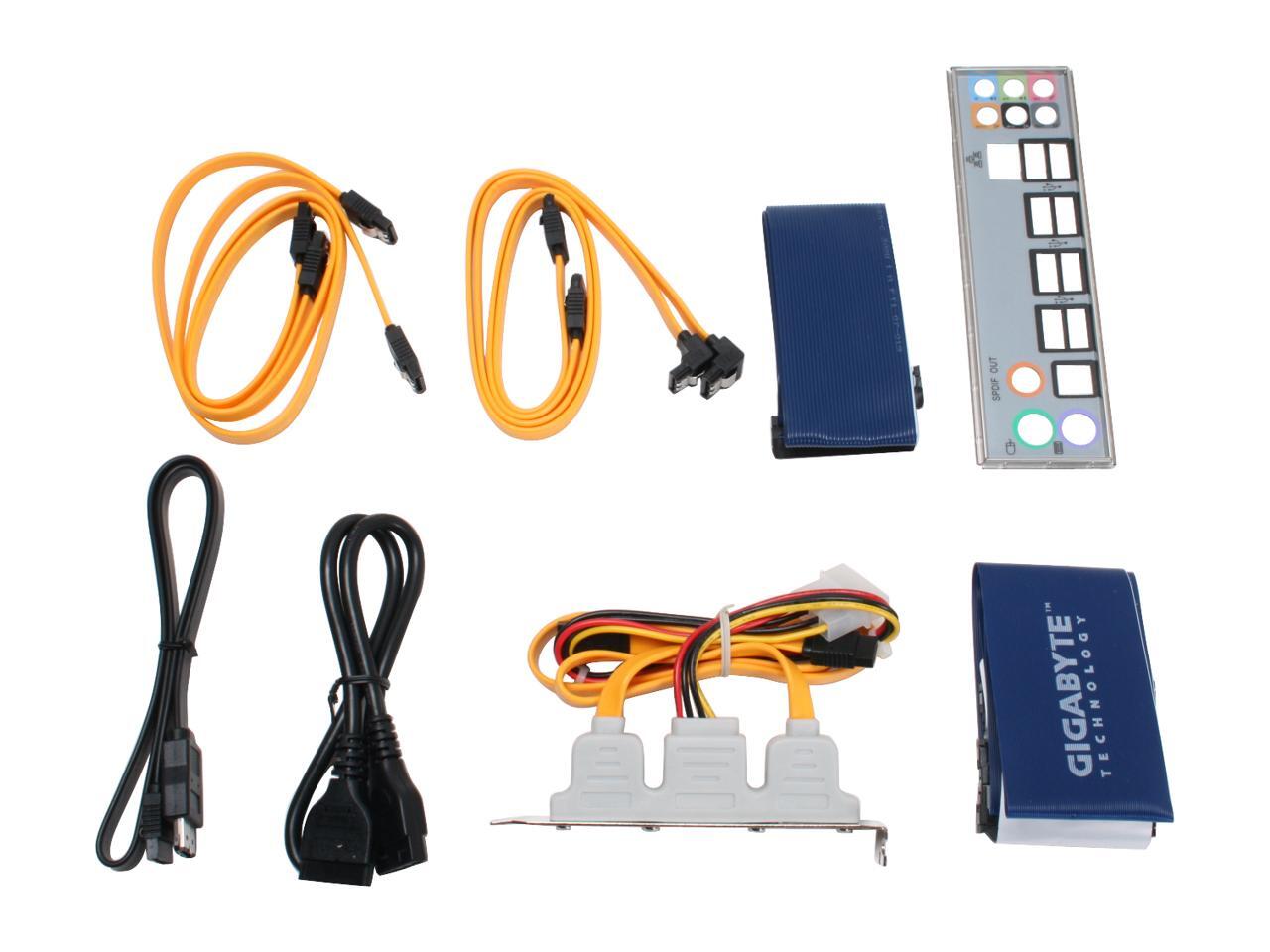

| Package Contents | GA-EP35C-DS3R Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable eSATA Cable & Power cable eSATA Bracket |
|---|
| Date First Available | January 11, 2008 |
|---|
