GIGABYTE GA-G33M-S2L LGA 775 Intel G33 Micro ATX Intel Motherboard
OUT OF STOCK.
- Intel G33
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews
Learn more about the GIGABYTE GA-G33M-S2L
| Brand | GIGABYTE |
|---|---|
| Model | GA-G33M-S2L |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1333/1066 MHz |
| Chipset | Intel G33 |
|---|---|
| South Bridge | Intel ICH9 |
| Onboard Video Chipset | Intel GMA 3100 |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 4 x SATA 3Gb/s |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0/1.1 headers |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.2" |
| Power Pin | 24 Pin |

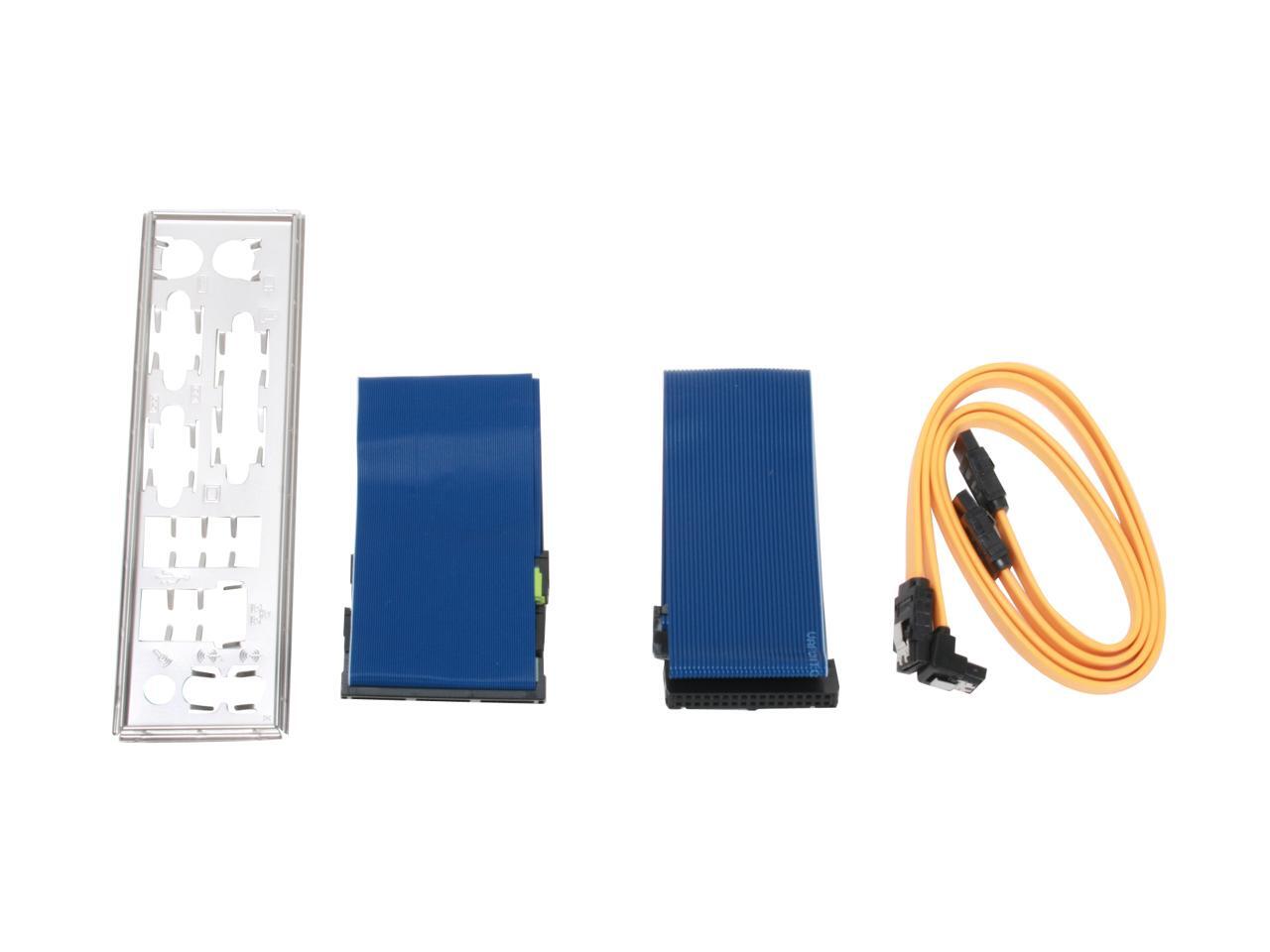

| Package Contents | GA-G33M-S2L Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | January 30, 2008 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-854-9338
- Support Website
- View other products from GIGABYTE
LOADING...
LOADING...























Pros: This board performs very well. I haven't bothered benchmarking it for comparisons, but it handles my Q6600 and Corsair PC2-6400 ram at 5-5-5-12 just fine, without any bios update. Had to use CTRL-F1 on bios main screen to manually set the ram timing properly. No big deal. The Realtek HD Audio is excellent, it's rich and warm. Huge improvement over my original Audigy, which I no longer use. I'll be adding the XFX 8800GT 512meg card sometime in the next few months. Until then, the onboard video will do. 6 rear USB ports, plus 3 headers for 12 USB ports total Gigabit ethernet Flawless legacy IDE(PATA)/floppy support, no conflicts with SATA SPDIF and front panel audio headers
Cons: Only 2 fan headers, but I knew that before I bought it. All of the capacitors are electrolitic, except the ones around the CPU socket, those are solid state. Intel GMA3100 onboard video isn't the best. It supports Pixel Shader 3.0, according to Intel, but games that require it only detect PS 2.0 and many games simply don't support GMA3100 at all, so they won't run. Elder Scrolls Oblivion, Crysis and Bioshock won't run at all. GMA3100 is capable of running all 3 games, but the games simply don't support the chipset, so they won't run. Hellgate London runs decent though.
Overall Review: Solid board, even if you want to overclock a bit, which I don't do. Good feature set for a mATX board. Good price. If it weren't for the lack of game support for the GMA3100 video, I would have rated this product a 5. This is my first Gigabyte product, and I love it.
