GIGABYTE GA-G33M-S2L LGA 775 Intel G33 Micro ATX Intel Motherboard
- Intel G33
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews (47)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-G33M-S2L
| Brand | GIGABYTE |
|---|---|
| Model | GA-G33M-S2L |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1333/1066 MHz |
| Chipset | Intel G33 |
|---|---|
| South Bridge | Intel ICH9 |
| Onboard Video Chipset | Intel GMA 3100 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 1Gbps |

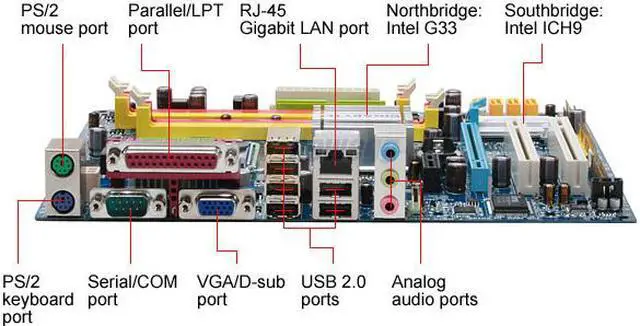

| Back I/O Ports | 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0/1.1 headers |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.2" |
| Power Pin | 24 Pin |

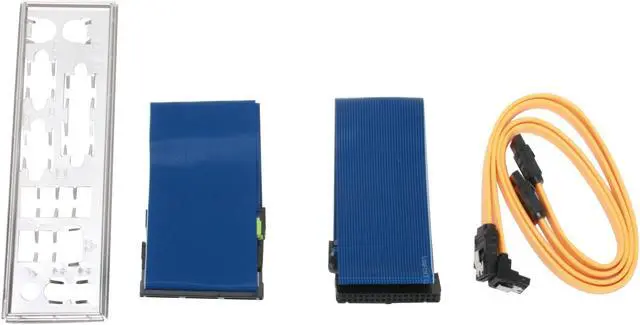

| Package Contents | GA-G33M-S2L Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | January 30, 2008 |
|---|
