GIGABYTE GA-EP35-DS3R LGA 775 Intel P35 ATX Dynamic Energy Saver Ultra Durable II Intel Motherboard
- Intel P35
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1200 (O.C.)/1066
Specs
Reviews (144)
Learn more about the GIGABYTE GA-EP35-DS3R
| Brand | GIGABYTE |
|---|---|
| Model | GA-EP35-DS3R |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1600 (O.C.)/1333/1066MHz |
| Chipset | Intel P35 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1200 (O.C.)/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 slots (share with the PCIE_16_2 slot) |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 8 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 1Gbps |

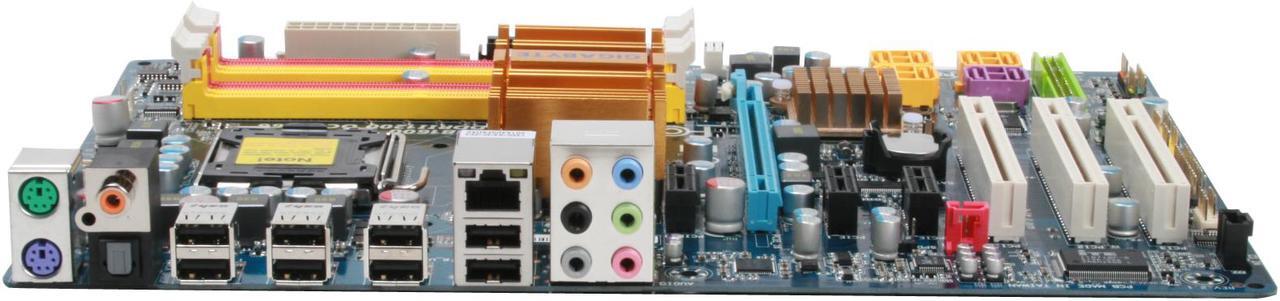

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0/1.1 headers |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.3" |
| Power Pin | 24 Pin |

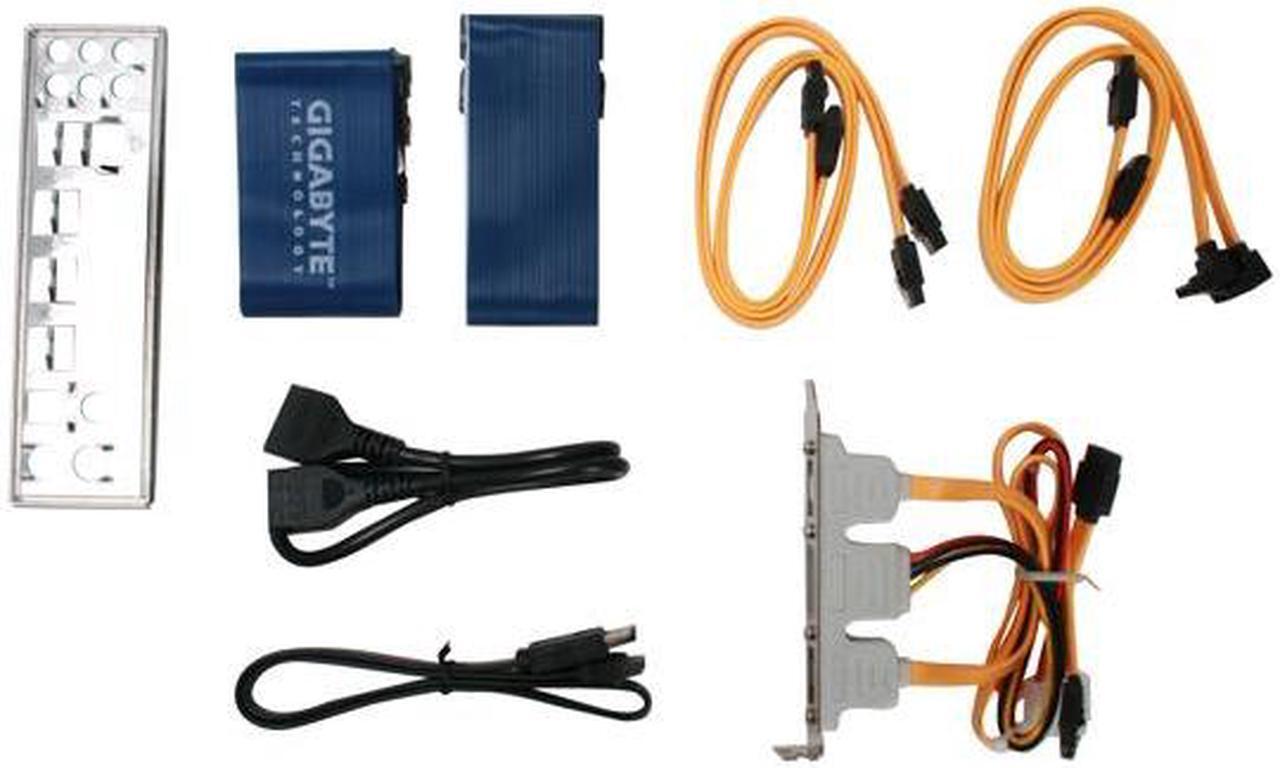

| Package Contents | GA-EP35-DS3R Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable eSATA Bracket eSATA Cable & eSATA Power Cord |
|---|
| Date First Available | February 01, 2008 |
|---|
