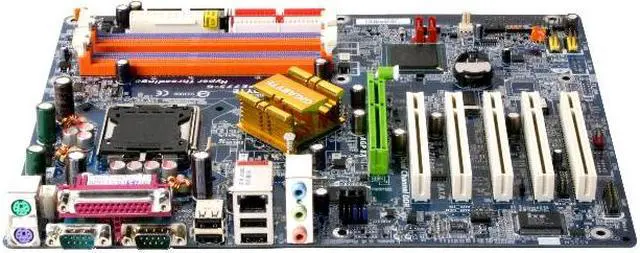

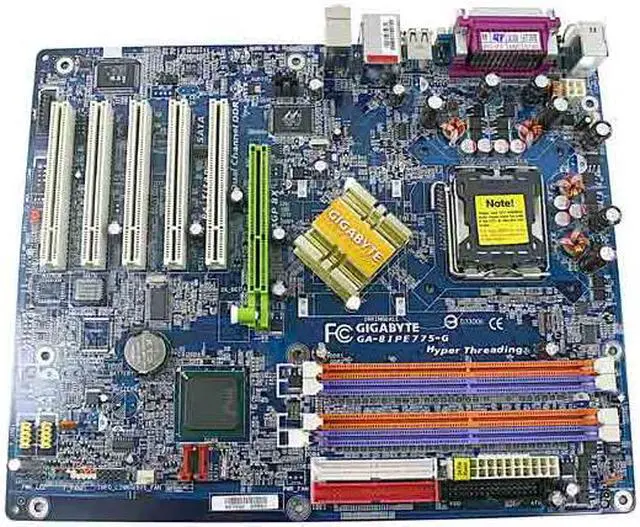

GIGABYTE GA-8IPE775-G LGA 775 Intel 865PE ATX Intel Motherboard

OUT OF STOCK.
  • Intel 865PE
  • Pentium 4 Prescott / Celeron D
  • DDR 400
Specs
Reviews

Learn more about the GIGABYTE GA-8IPE775-G

Model
Brand GIGABYTE
Model GA-8IPE775-G
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium 4 Prescott / Celeron D
FSB 800/533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 865PE
South Bridge Intel ICH5
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4×184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8001
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 2
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
Date First Available August 25, 2004
