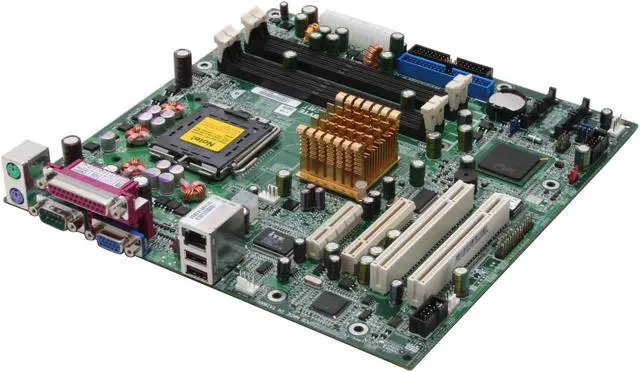

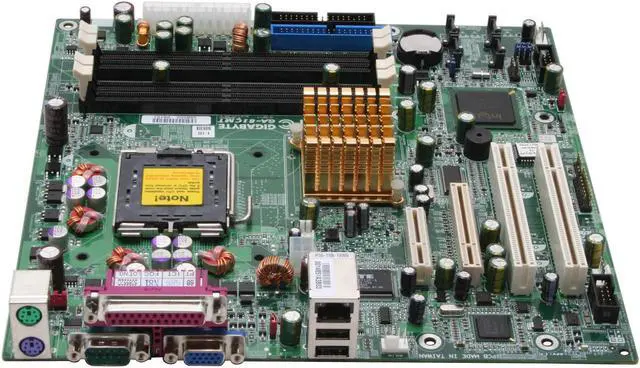

Learn more about the GIGABYTE GA-8ICMT
Model
Brand
GIGABYTE
Model
GA-8ICMT
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Intel Pentium 4 (Prescott Ready)
Chipsets
North Bridge
Intel E7221
South Bridge
Intel ICH6R
Memory
Number of DDR2 Slots
4 x 240Pin
DDR2 Standard
DDRII-400/533
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
ECC Supported
Yes
Expansion Slots
PCI Express x8
1 x PCI Express x8
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
SATA
4 x SATA 1.5Gb/s
SATA RAID
0/1
Onboard LAN
LAN Chipset
Built-in single Intel 82541PI Taboriii GbE (PCI)
LAN Speed
10/100/1000Mbps
Max LAN Speed
1Gbps
Rear Panel Ports
PS/2
2
COM
1
LPT
1
Video Ports
1
USB 1.1/2.0
2 x USB 2.0
Features
Features
System BIOS: Phoenix BIOS with 4Mb flash RAM; ACPI1.1,DMI,WFM, PXE, Plug & Play, AC Power Recovery Integrated graphics in MCH: Provides graphics for servers at a lower cost
Dimensions
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Additional Information
First Listed on Newegg
September 30, 2005
