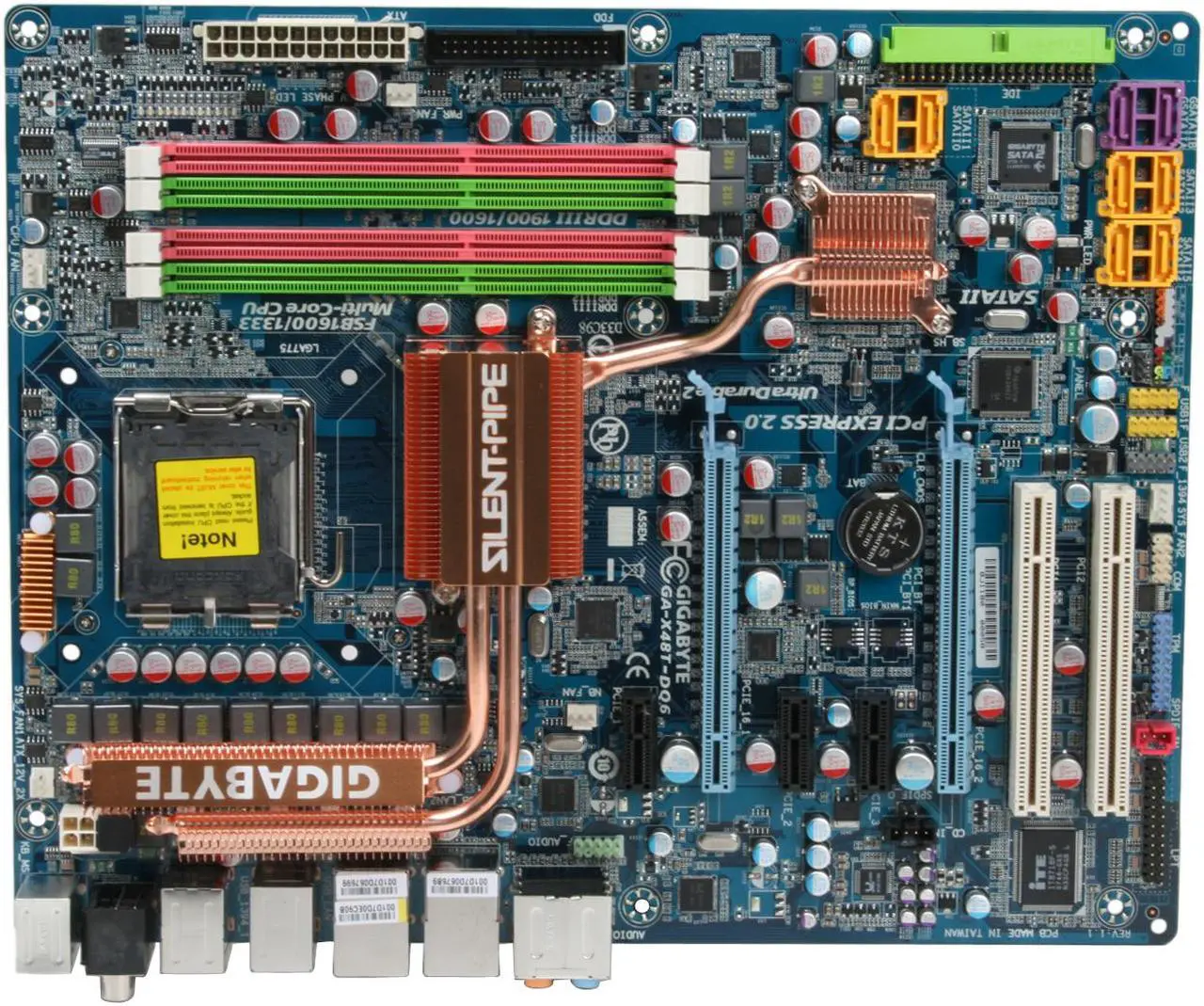

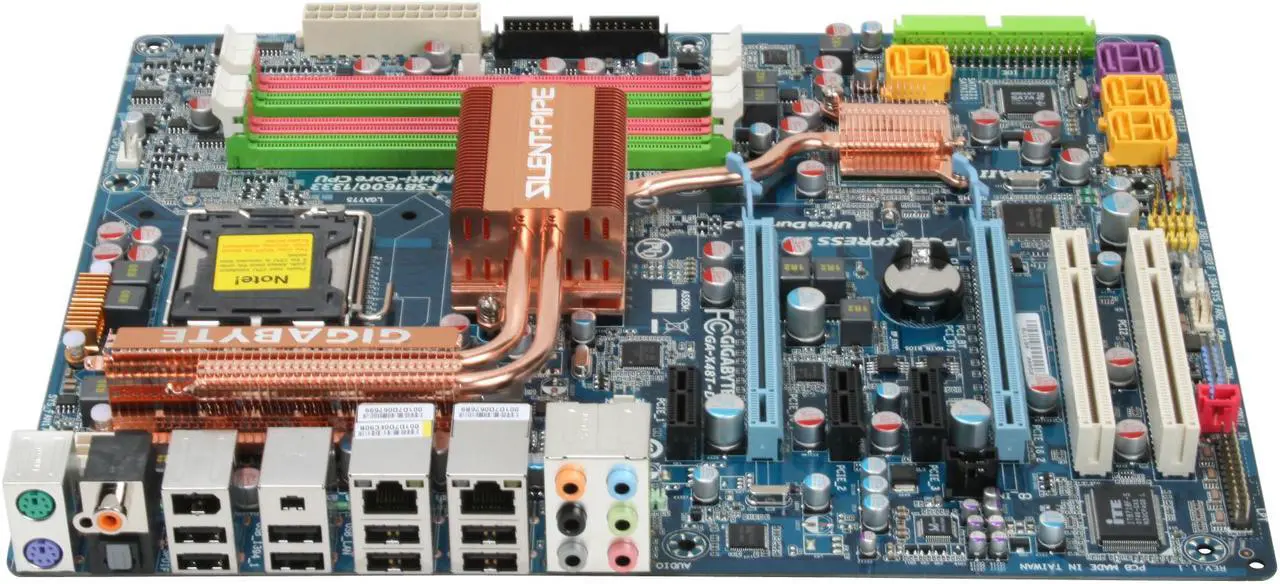

GIGABYTE GA-X48T-DQ6 LGA 775 Intel X48 ATX Intel Motherboard

(59) Write a Review
  • Intel X48
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR3 1800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (59)

Learn more about the GIGABYTE GA-X48T-DQ6

Model
Brand GIGABYTE
Model GA-X48T-DQ6
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600/1333 MHz
Chipsets
Chipset Intel X48
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 2 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Power Pin 24 Pin

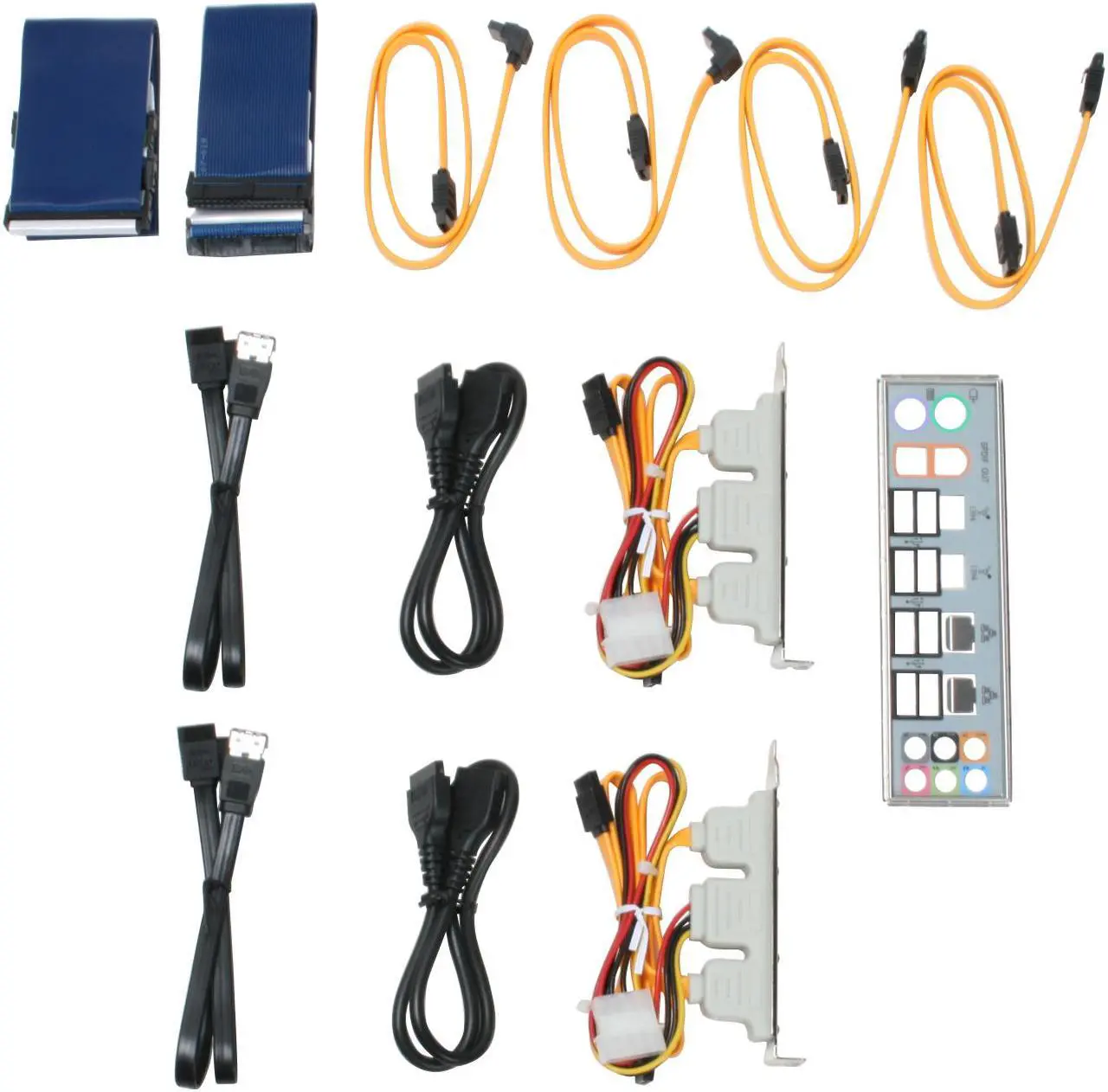

Packaging
Package Contents GA-X48T-DQ6
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
2 x eSATA Bracket
2 x eSATA Cable & eSATA Power Cord
Additional Information
Date First Available March 21, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
