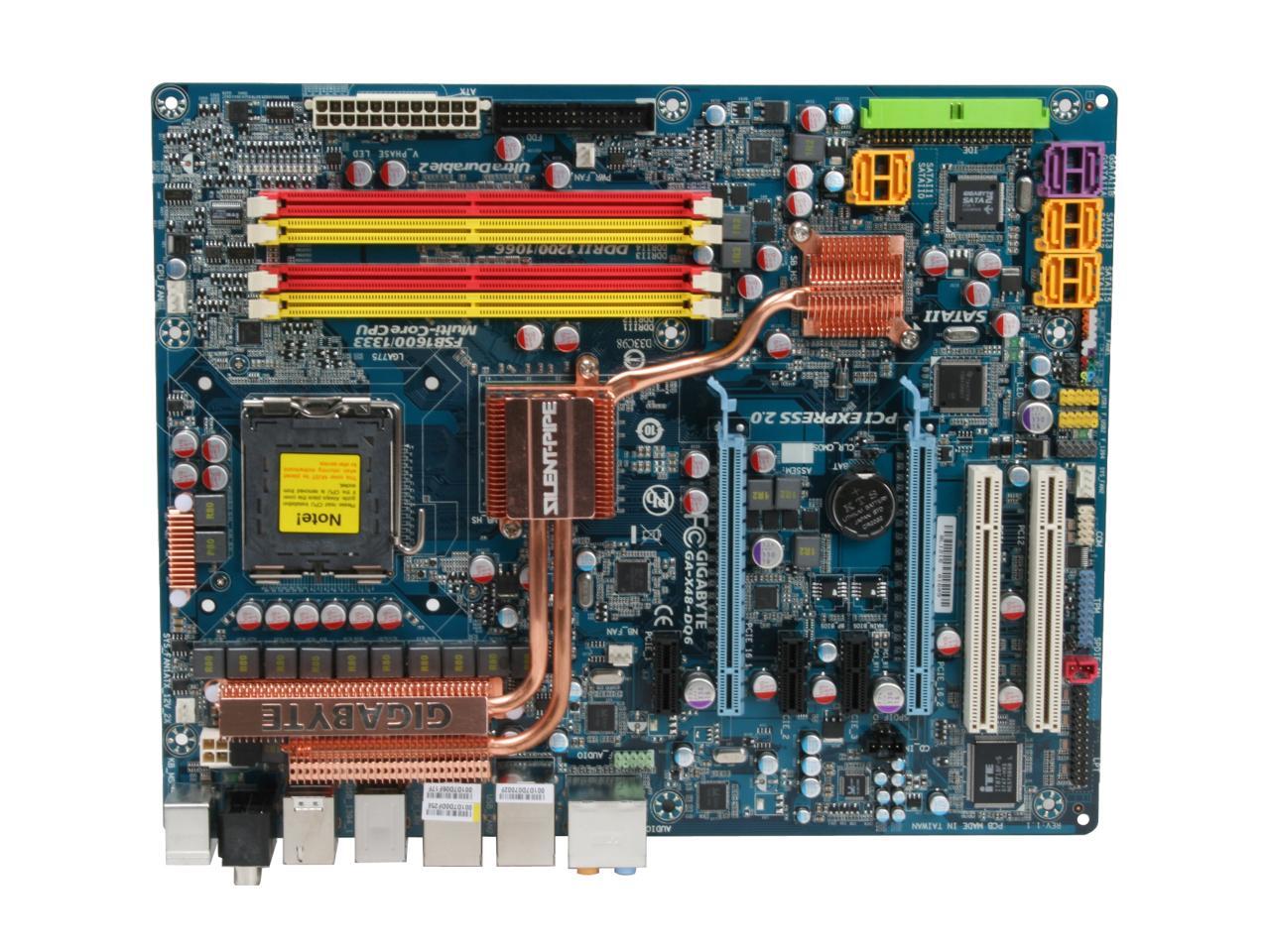

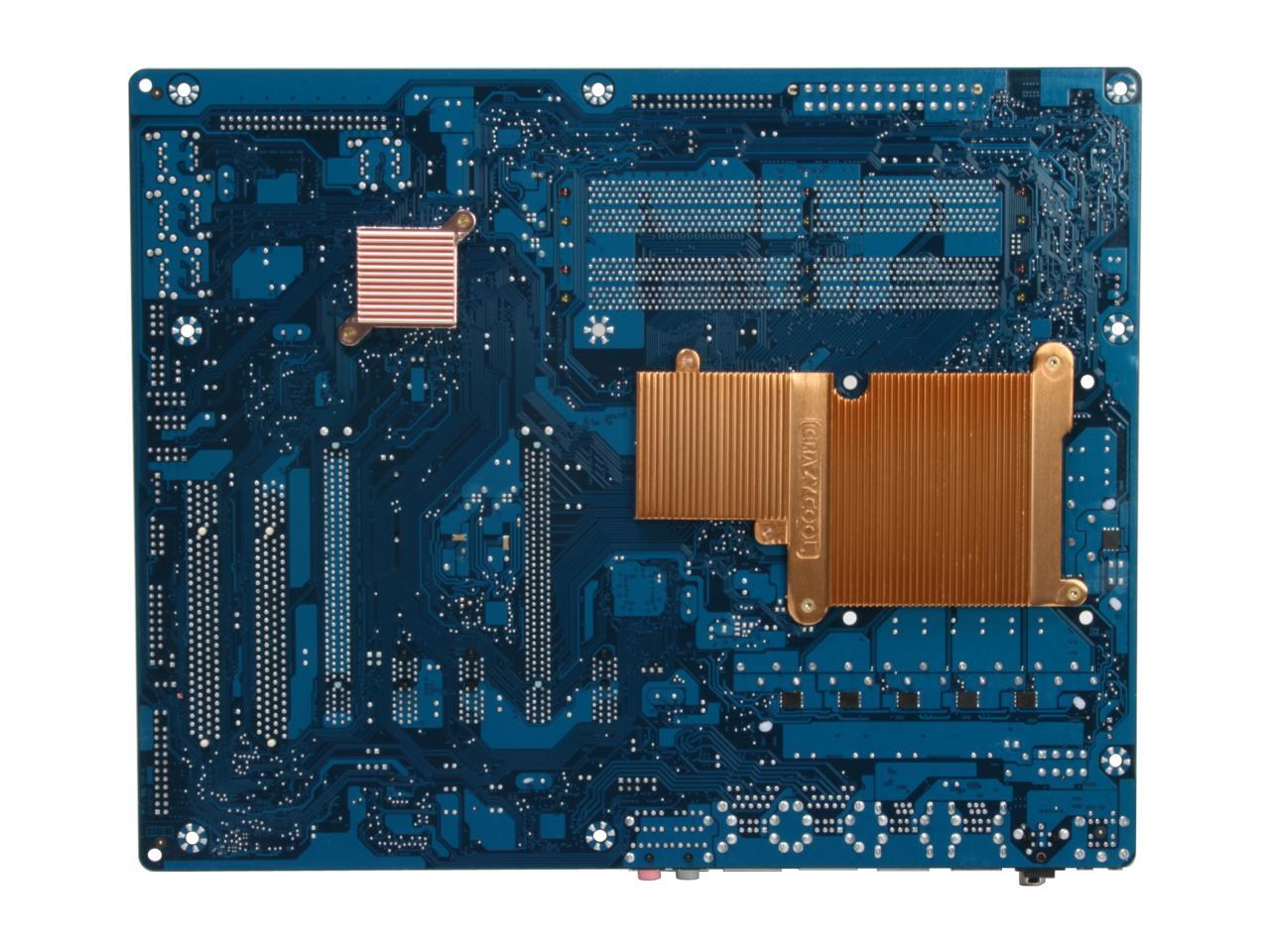

| Brand | GIGABYTE |
|---|---|
| Model | GA-X48-DQ6 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1600/1333 MHz |
| Chipset | Intel X48 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR2 1200 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 8 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | Dual 10/100/1000Mbps |
|---|
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |

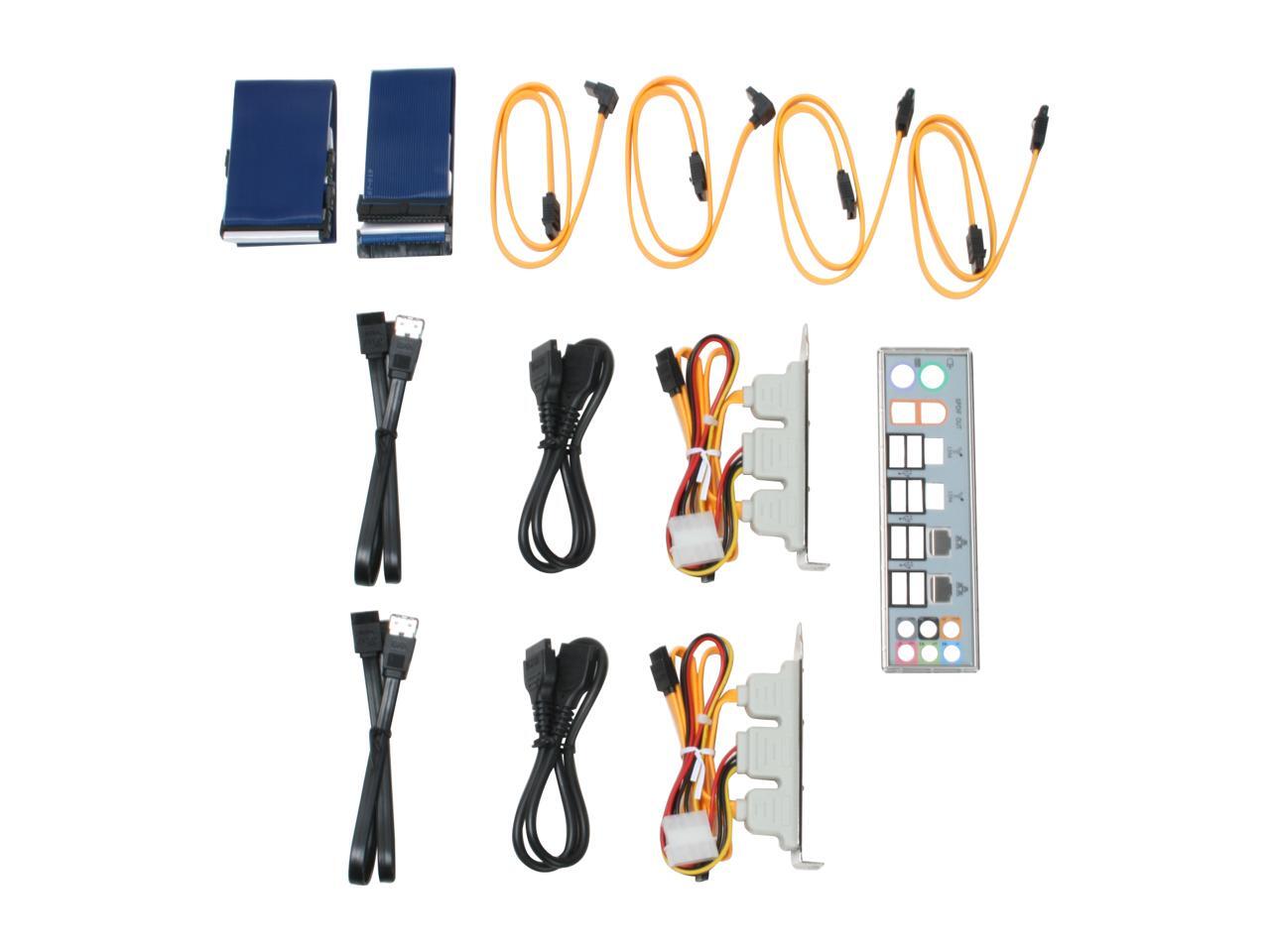

| Package Contents | GA-X48-DQ6 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 2 x eSATA Bracket 2 x eSATA Cable & eSATA Power Cord |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | March 24, 2008 |
|---|
Pros: The board installed easily and worked well until the sound went and other issues made the board unusable
Cons: Getting support form Gigabyte is difficult. The board died soon after the 30 day return from new egg, so I've made contact with Gigabyte and their support is null. I can understand boards that fail, and if Gigabyte had even responded to my emails and said here is how to get it replaced I would not be writing a negative review on this board
Overall Review: Gigabyte customer service is bad, I'd suggest u look at another manufacturer
