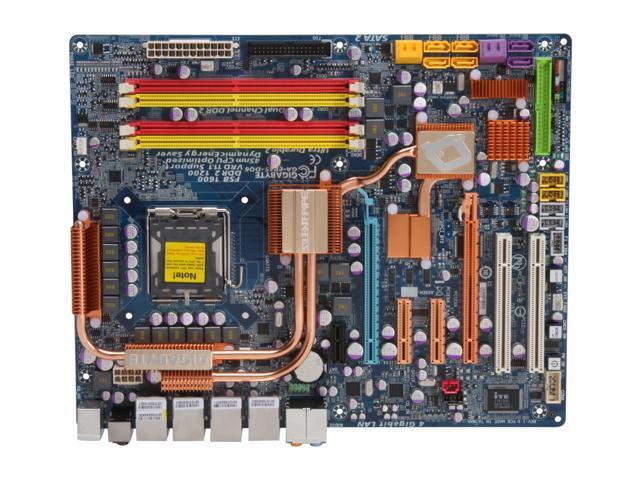

GIGABYTE GA-EP45-DQ6 LGA 775 Intel P45 ATX Intel Motherboard

OUT OF STOCK.
  • Intel P45
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 1200
Specs
Reviews

Learn more about the GIGABYTE GA-EP45-DQ6

Model
Brand GIGABYTE
Model GA-EP45-DQ6
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600/1333 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1200
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16 slot
1 x PCI Express 2.0 x8 slot
PCI Express x4 2 x PCI Express x4
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 10 x SATA 3Gb/s
SATA RAID 0/1/5/10
Additional RAID Controller SiI5723
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset 4 x Realtek 8111C
Max LAN Speed Quad 10/100/1000Mbps

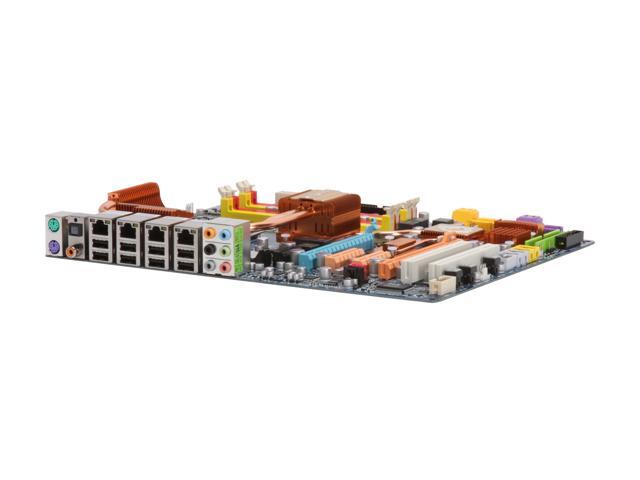

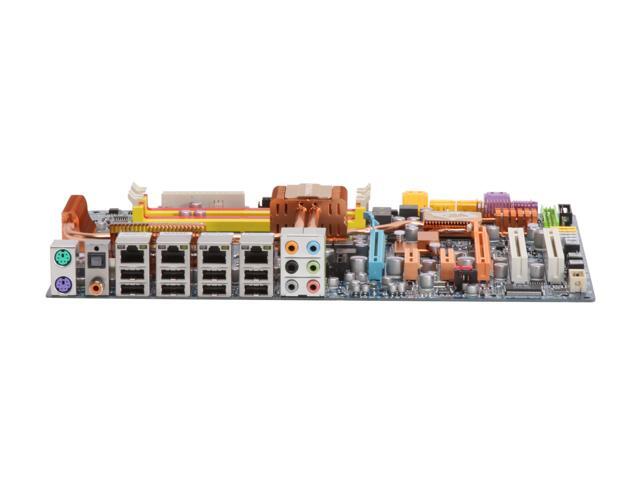

Rear Panel Ports
PS/2 2
USB 1.1/2.0 8 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 3 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin

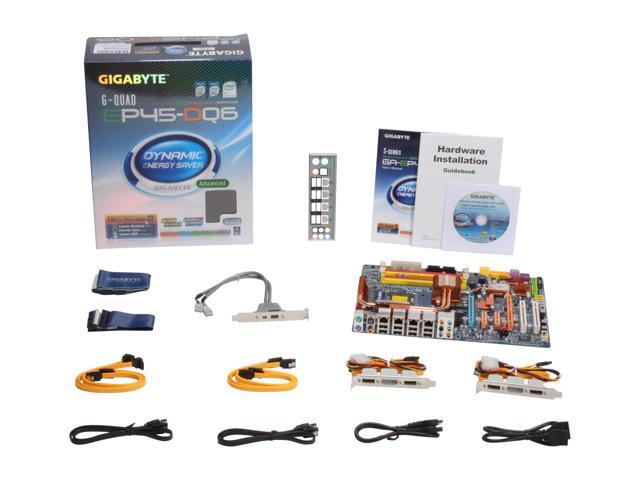

Packaging
Package Contents GA-EP45-DQ6
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
IEEE 1394 Bracket
eSATA Bracket
eSATA Cable & Power Cord
Additional Information
Date First Available June 12, 2008
