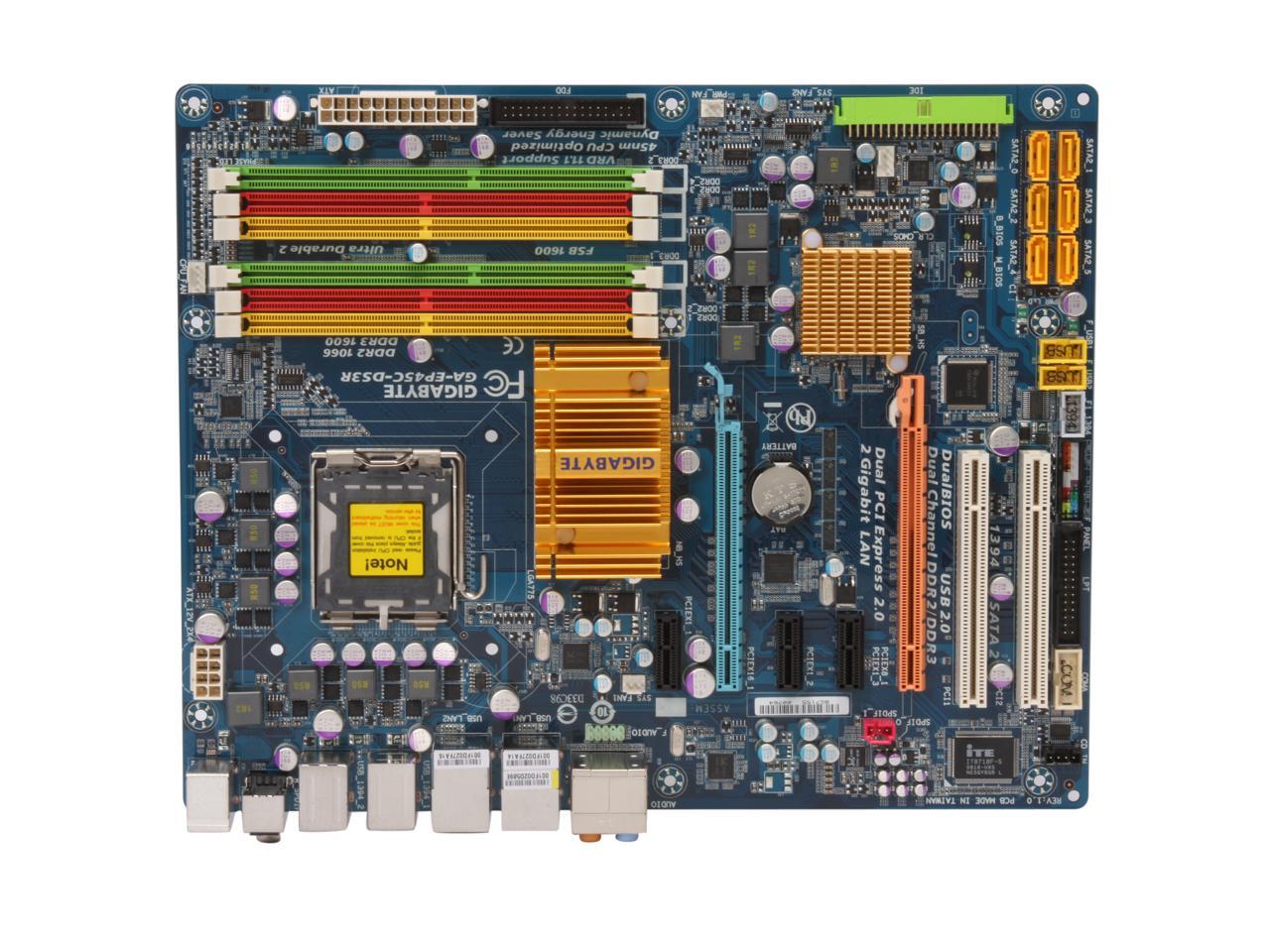

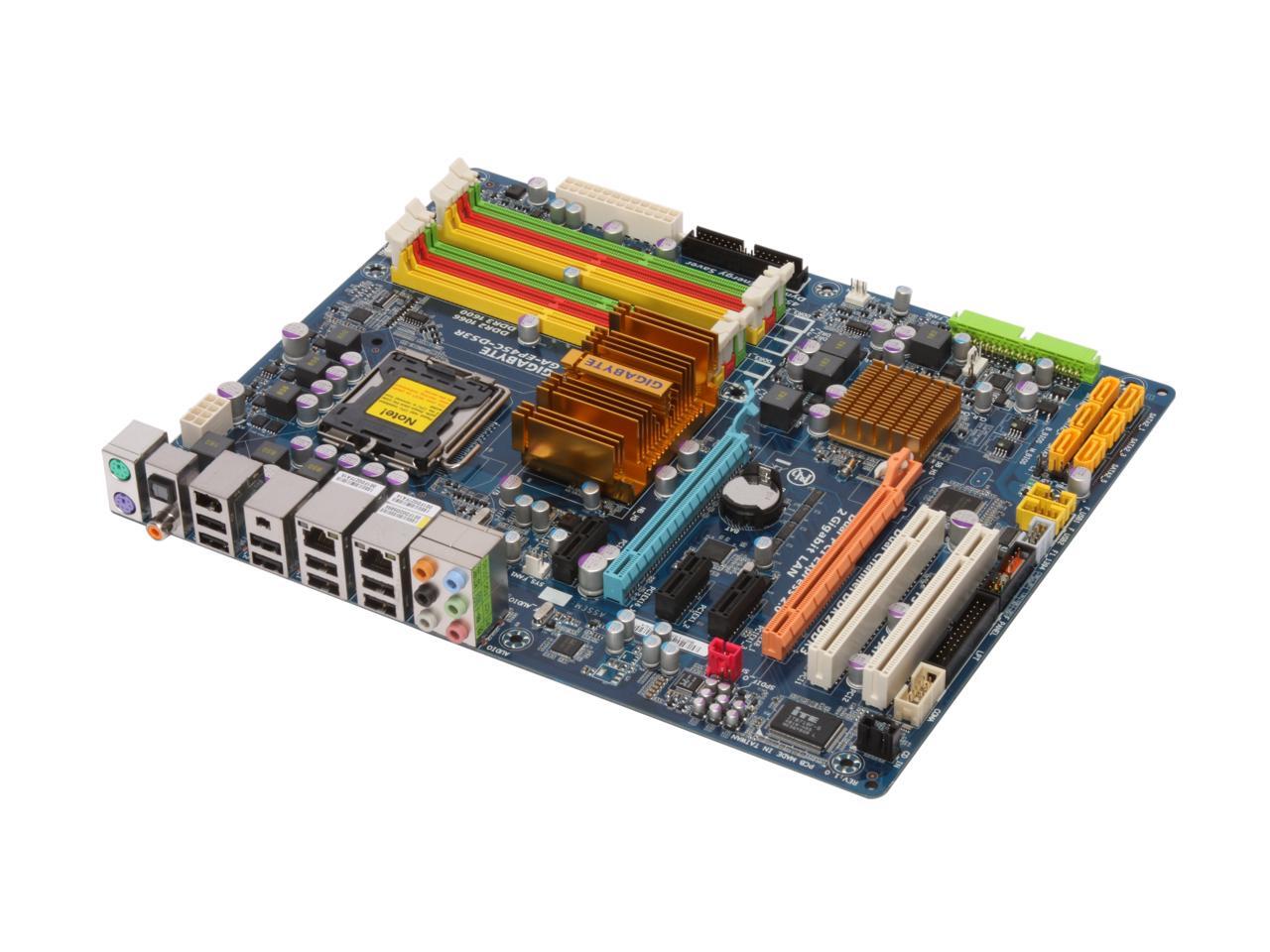

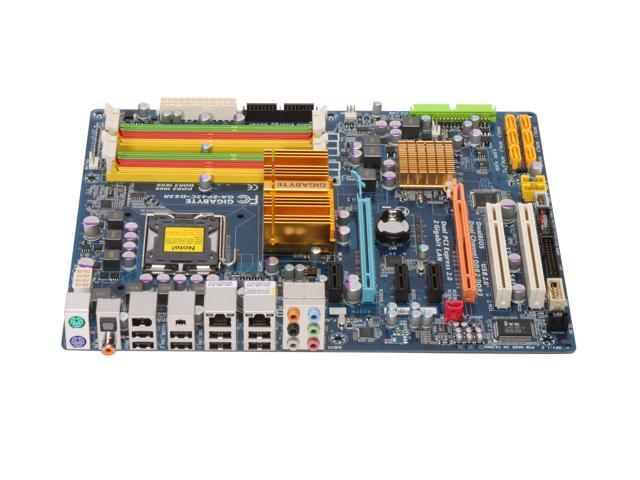

GIGABYTE GA-EP45C-DS3R LGA 775 Intel P45 ATX Intel Motherboard
OUT OF STOCK.
- Intel P45
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR3 1600 / DDR2 1066
Overview
Specs
Reviews
Gigabyte's GA-EP45C-DS3R motherboard has been optimized to work more efficiently with today's 45nm processors. The board has dynamic 6 gear power switching. As your system needs more power it gets it and when the power load goes down, so does the supplied power. This lets you have power when you need it, and save energy and money when you don't.
The board supports both DDR2 and DDR3 memory. You can install up to 16GB of DDR2 in 4 slots or up to 8GB of DDR3 in 2 slots. Either configuration will support dual channel mode.
System durability and security are as important as ever. Gigabyte's DualBIOS system has a second BIOS chip on the motherboard for quick and painless recovery from crashes and viruses. They also built the motherboard with all conductive polymer aluminum solid capacitors for increased longevity and power efficiency. An Ultra TPM module keeps your data as safe as your system.
Intel P45 Express Chipset for Intel LGA 775 CPUBased on the Intel P45 Express chipset, the GIGABYTE GA-EP45C-DS3R supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
ATi CrossFireX Multi-GPU Technology SupportATi CrossFireX is the ultimate multi-GPU performance gaming platform, enabling two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
DDR2 and DDR3 Combo DesignThe GIGABYTE GA-EP45C-DS3R features four DDR2 and two DDR3 DIMM slots to provide the ultimate flexibility for system memory upgrades.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports support RAID 0, 1, 5 and 10 for better performance, enhanced data security, and flexible capacity upgrades.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
GIGABYTE DualBIOSGIGABYTE DualBIOS technology protects the BIOS from virus attacks. With its innovative backup BIOS design, this platform provides twice the security thus assuring the PC’s stability.
Intel P45 Express Chipset for Intel LGA 775 CPUBased on the Intel P45 Express chipset, the GIGABYTE GA-EP45C-DS3R supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
ATi CrossFireX Multi-GPU Technology SupportATi CrossFireX is the ultimate multi-GPU performance gaming platform, enabling two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
DDR2 and DDR3 Combo DesignThe GIGABYTE GA-EP45C-DS3R features four DDR2 and two DDR3 DIMM slots to provide the ultimate flexibility for system memory upgrades.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports support RAID 0, 1, 5 and 10 for better performance, enhanced data security, and flexible capacity upgrades.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
GIGABYTE DualBIOSGIGABYTE DualBIOS technology protects the BIOS from virus attacks. With its innovative backup BIOS design, this platform provides twice the security thus assuring the PC’s stability.Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-854-9338
- Support Website
- View other products from GIGABYTE
LOADING...
LOADING...
Pros: EVERYTHING!! but mostly simple and ez to use
Cons: Couldn't change bios setting after using energy savor and easy tune6 program during windows operation so i got a bit confuse at first. but problem is easy to fix. Just reload optimal default setting in bios then restart pc and problem solve. other than that nothing.
Overall Review: would be nice if it came with another 2.0 pcie 16x rather than a 8x
