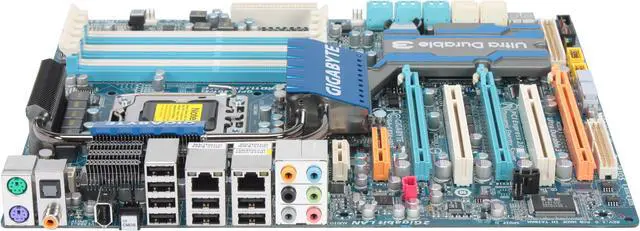

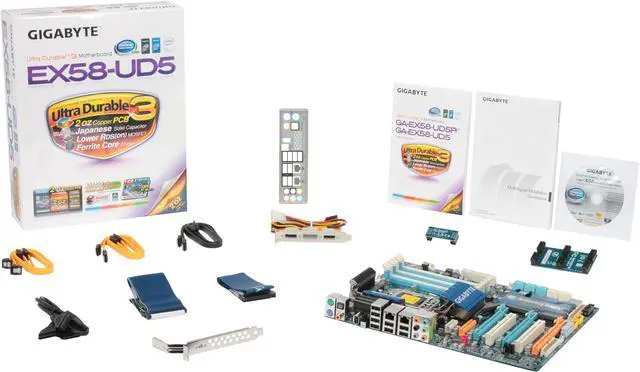

GIGABYTE GA-EX58-UD5 LGA 1366 Intel X58 ATX Intel Motherboard
OPEN BOX Product Type
- Intel X58
- Core i7 (LGA1366)
- DDR3 2100+/1333/1066/800
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-EX58-UD5
| Brand | GIGABYTE |
|---|---|
| Model | GA-EX58-UD5 |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| FSB | QPI 6.4GT/S |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 6x240pin |
|---|---|
| Memory Standard | DDR3 2100+/1333/1066/800 |
| Maximum Memory Supported | 24GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 2 x PCI Express x16 (Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots) |
|---|---|
| PCI Express x8 | 1 x PCI Express x8 (Note: The PCIEX8_1 slot shares bandwidth with the PCIEX16_2 slot. When PCIEX8_1 is populated with a PCI Express graphics card, the PCIEX16_2 slot will operate at up to x8 mode) |
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111D |
|---|---|
| Second LAN Chipset | Realtek 8111D |
| Max LAN Speed | 2 x 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports 3 channel DDR3 2100+ memory Supports 2-Way/3-Way NVIDIA SLI / ATI CrossFireX technology Advanced 12+2+2 power phase design with VRD 11.1 support 2 Gigabit Ethernet LAN with Teaming functionality Power/reset/Clr CMOS onboard button for easily operation on the workbench Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio |
|---|
| First Listed on Newegg | December 22, 2008 |
|---|
