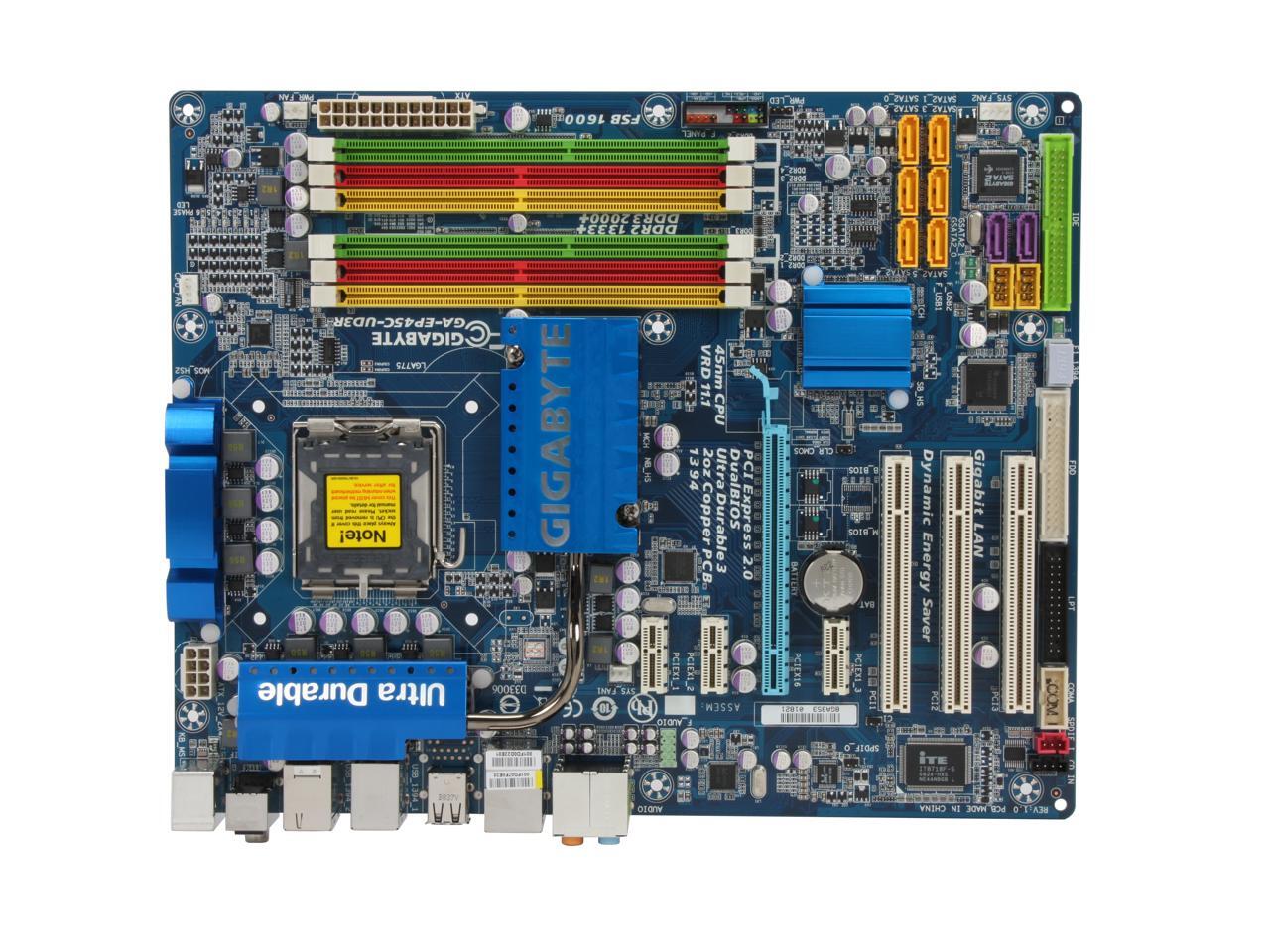

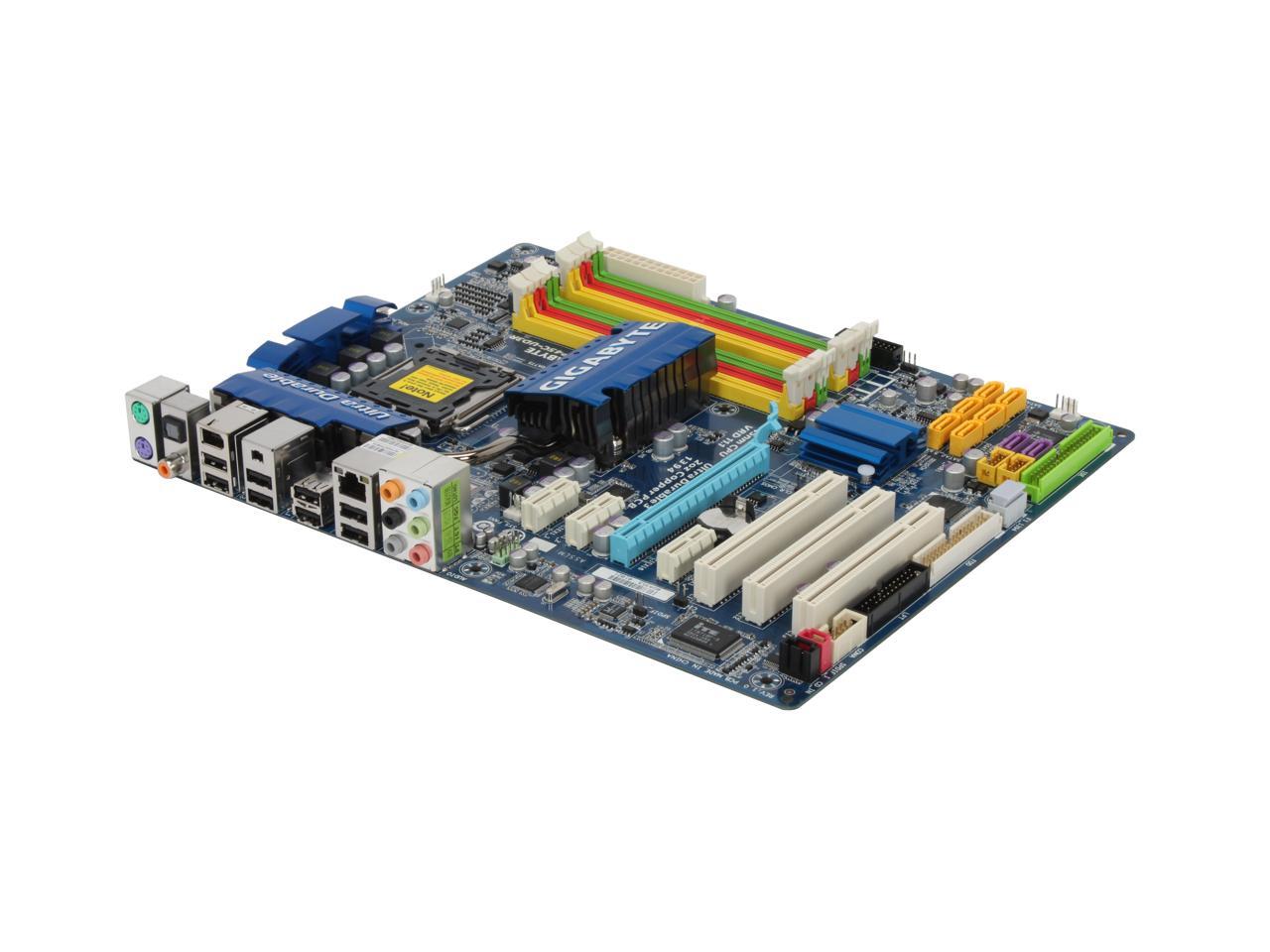

Brand | GIGABYTE |
---|---|
Model | GA-EP45C-UD3R |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual-Core / Celeron |
FSB | 1600/1333/1066/800 |
Chipset | Intel P45 |
---|---|
South Bridge | Intel ICH10R |
Onboard Video Chipset | None |
---|
Number of Memory Slots | 6x240pin |
---|---|
Memory Standard | DDR3 2000(O.C)/1600/1333/1066/800 DDR2 1333(O.C)/1066/800/667 |
Maximum Memory Supported | DDR3 up to 8GB DDR2 up to 16GB (can not work together) |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI Express x16 |
---|---|
PCI Express x1 | 3 x PCI Express x1 |
PCI Slots | 3 x PCI Slots |
PATA | 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices |
---|---|
SATA 3Gb/s | 8 x SATA 3Gb/s |
SATA RAID | 0/1/5/10 by ICH10R 0/1 and JBOD by GIGABYTE SATA2 Chip |
Audio Chipset | Realtek ALC889A |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Realtek 8111C |
---|---|
Max LAN Speed | 1Gbps |

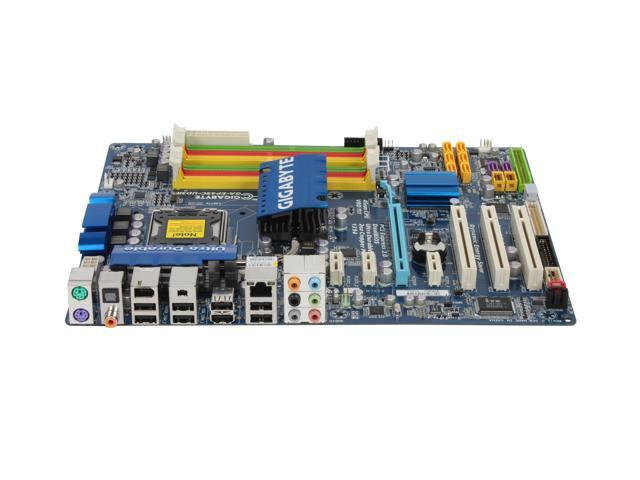

Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1 |
---|---|
PS/2 | 2 |
USB 1.1/2.0 | 8 x USB 2.0 |
IEEE 1394 | 2 x IEEE 1394a |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 2 x USB 2.0/1.1 headers |
---|---|
Onboard 1394 | 1 x 1394a |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |
Date First Available | November 24, 2008 |
---|
