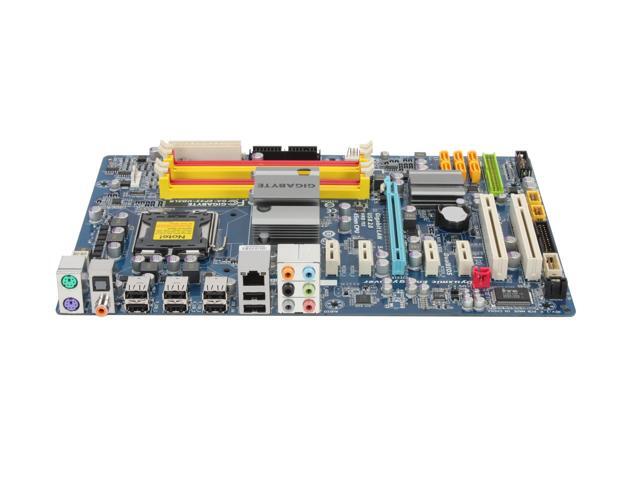

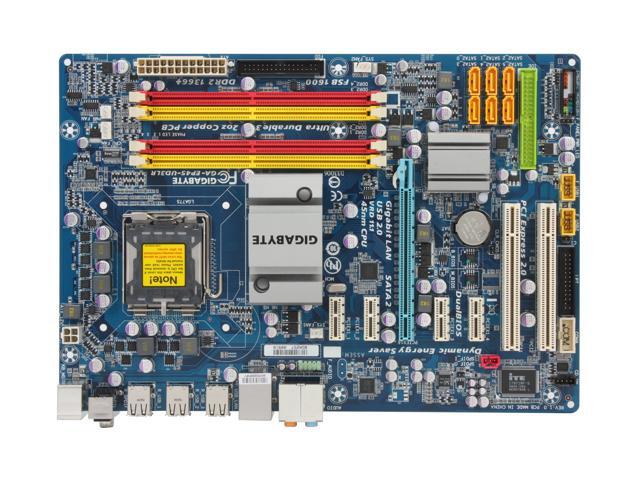

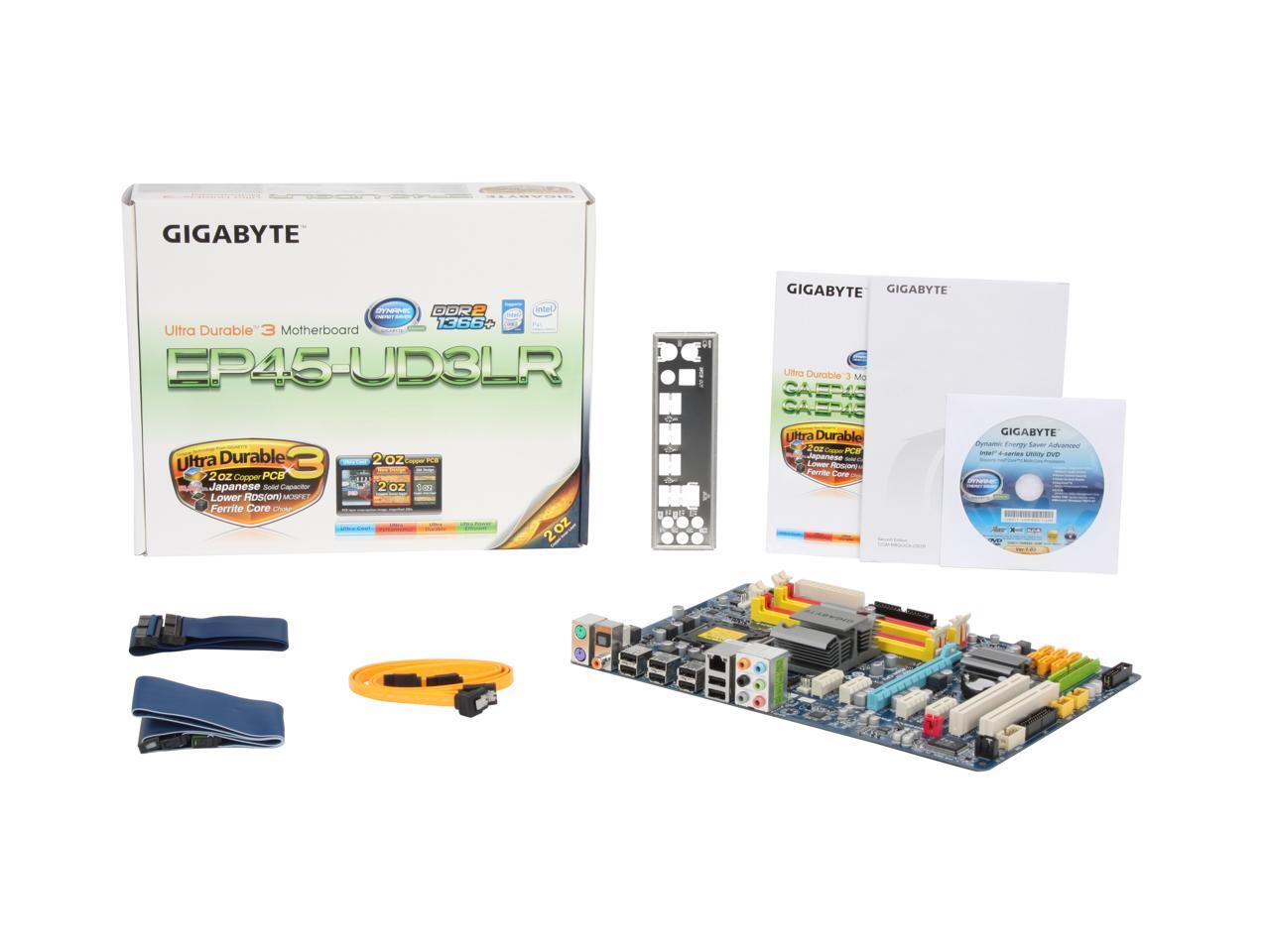

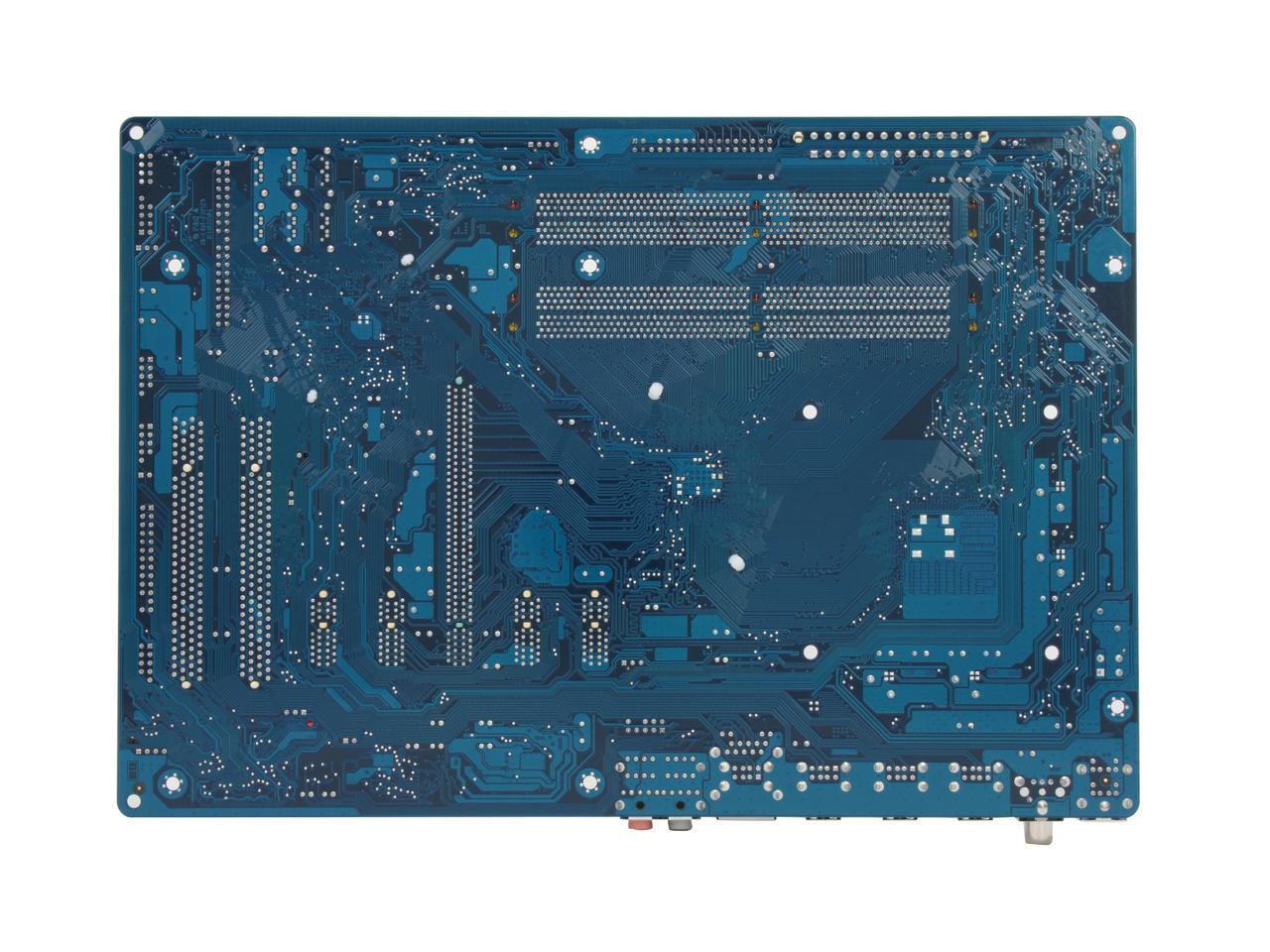

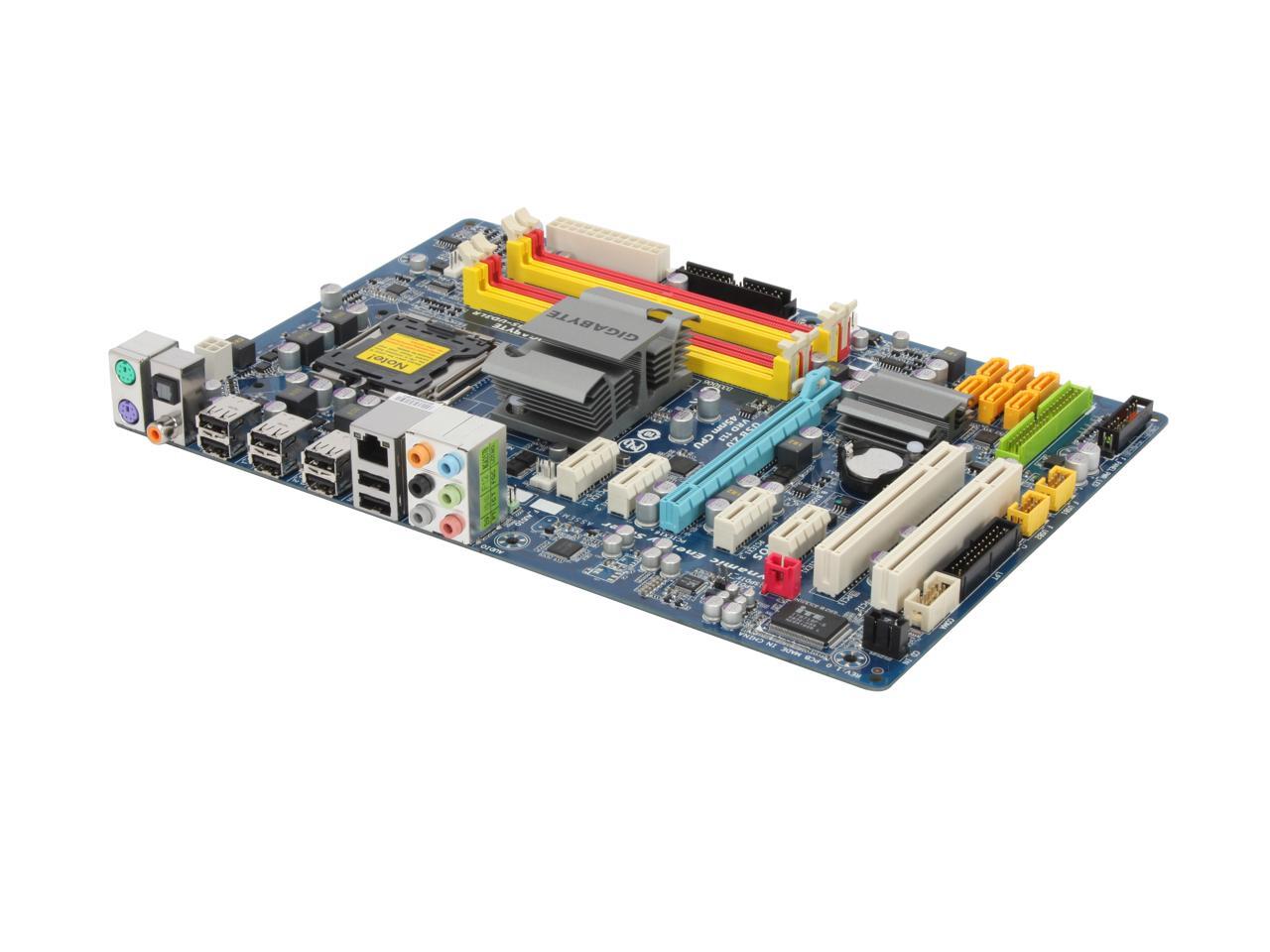

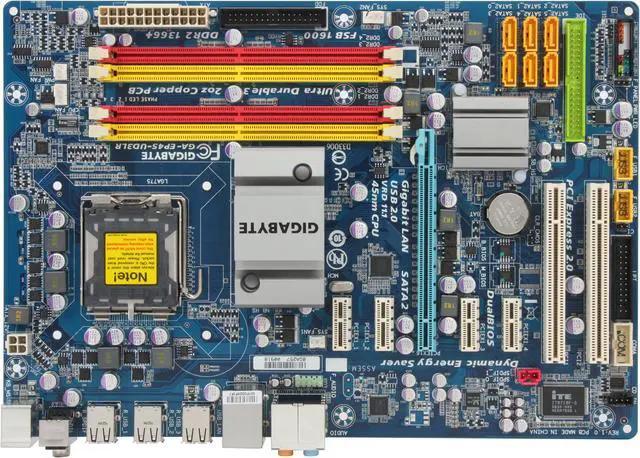

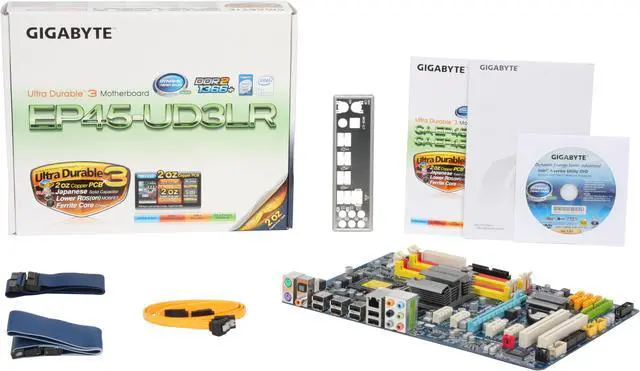

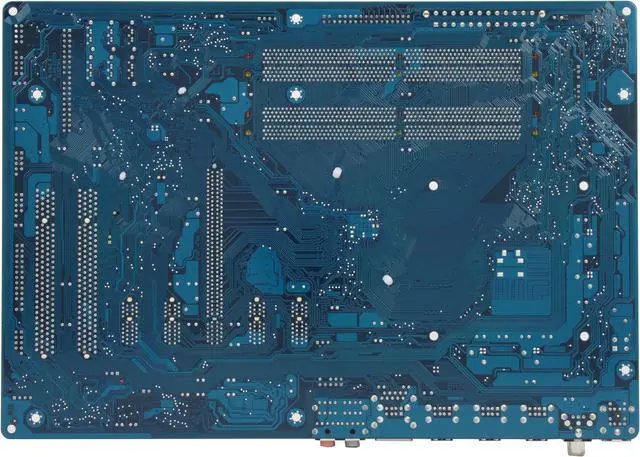

GIGABYTE GA-EP45-UD3LR LGA 775 Intel P45 ATX Intel Motherboard

(15) Write a Review
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
Check more deals of "Intel Motherboards"
OUT OF STOCK.
Newegg PC Builder
  • Intel P45
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 1366(O.C)/1066
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Specs
Reviews

Learn more about the GIGABYTE GA-EP45-UD3LR

Model
Brand GIGABYTE
Model GA-EP45-UD3LR
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600/1333 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1366(O.C)/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 4 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 8 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.3"
Power Pin 24 Pin
Additional Information
Date First Available December 04, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
