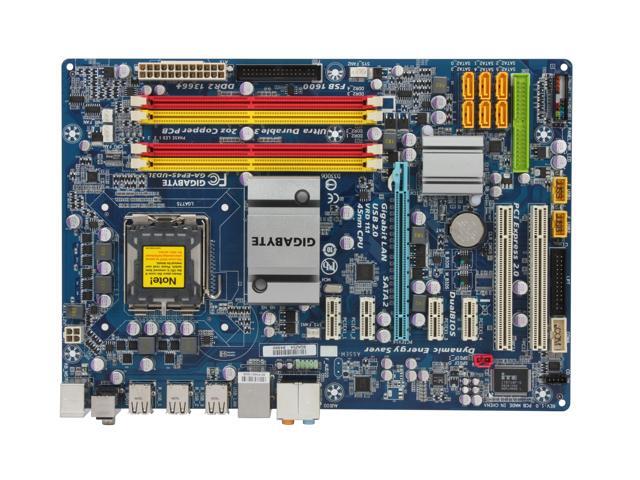

    GIGABYTE GA-EP45-UD3L LGA 775 Intel P45 ATX Intel Motherboard

    Used - Acceptable Product Type
    • Intel P45
    • Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
    • DDR2 1366(O.C)/1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-EP45-UD3L

    Model
    Brand GIGABYTE
    Model GA-EP45-UD3L
    Supported CPU
    CPU Socket Type LGA 775
    CPU Type Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
    FSB 1600/1333 MHz
    Chipsets
    Chipset Intel P45
    South Bridge Intel ICH10
    Onboard Video
    Onboard Video Chipset None
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 1366(O.C)/1066
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Express x1 4 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    PATA 1 x ATA100 2 Dev. Max
    Onboard Audio
    Audio Chipset Realtek ALC888
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111C
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1
    PS/2 2
    USB 1.1/2.0 8 x USB 2.0
    S/PDIF Out 1 x Optical, 1 x Coaxial
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 8.3"
    Power Pin 24 Pin

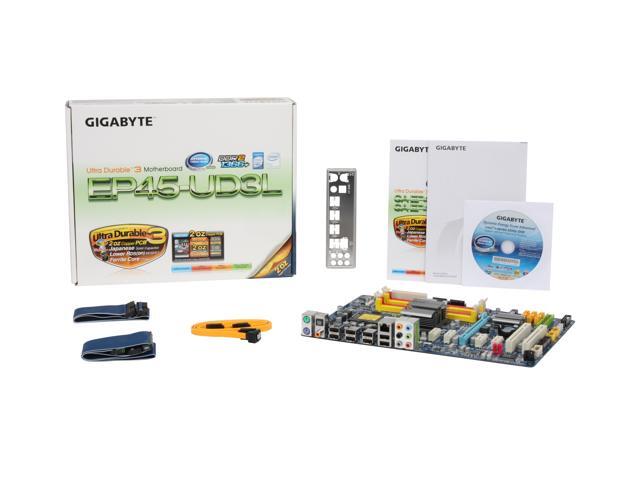

    Packaging
    Package Contents GA-EP45-UD3L
    Driver Disk
    User Manual
    Rear I/O Panel Shield
    IDE/PATA Cable
    FDD Cable
    SATA Cable
    Additional Information
    First Listed on Newegg December 14, 2024
