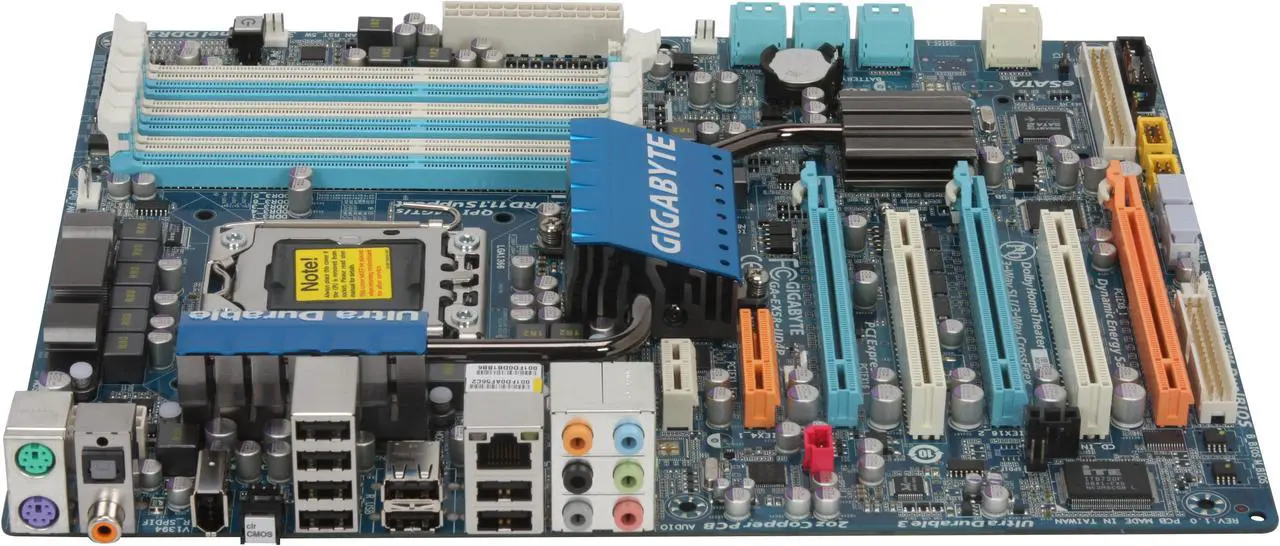

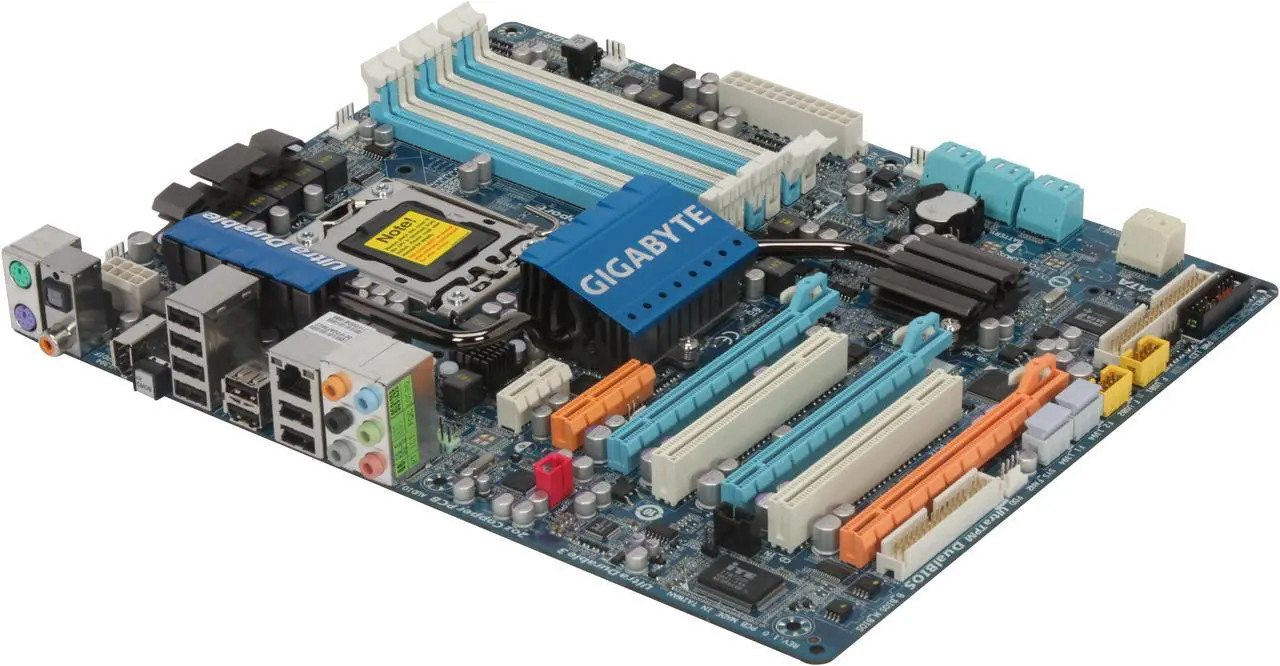

GIGABYTE GA-EX58-UD4P LGA 1366 Intel X58 ATX Intel Motherboard

(136) Write a Review
  • Intel X58
  • Core i7 (LGA1366)
  • DDR3 2100+/1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (136)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-EX58-UD4P

Model
Brand GIGABYTE
Model GA-EX58-UD4P
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
FSB QPI 6.4GT/S
Chipsets
Chipset Intel X58
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 6x240pin
Memory Standard DDR3 2100+/1333
Maximum Memory Supported 24GB
Channel Supported Triple Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 3)
1 x PCI Express x8 slot, running at x8 (PCIEX8_1) (Note 4)
(The PCIEX16_1, PCIE16_2 and PCIEX8_1 slots support 2-Way/3-Way NVIDIA SLI/ATI CrossFireX technology and conform to PCI Express 2.0 standard.)
PCI Express x4 1 x PCI Express x4
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111D
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
Date First Available December 23, 2008
