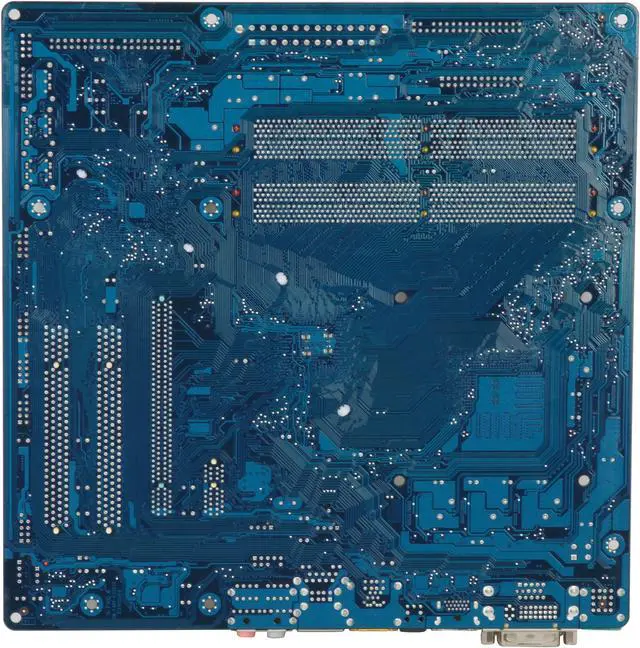

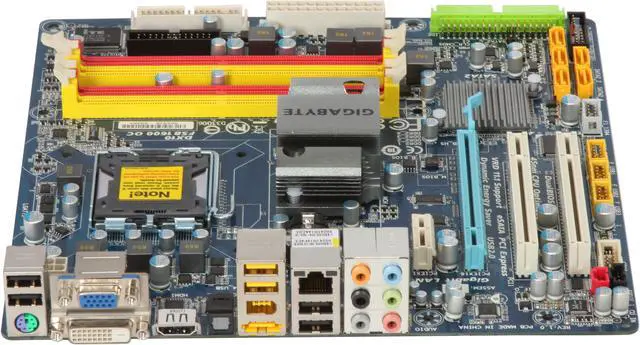

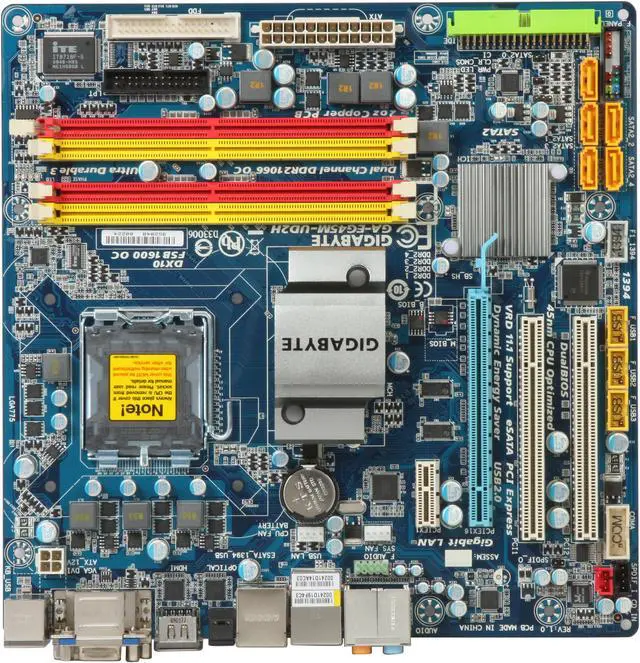

GIGABYTE GA-EG45M-UD2H LGA 775 Intel G45 HDMI Micro ATX Intel Motherboard
- Intel G45
- Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium Dual-Core / Celeron
- DDR2 1066(O.C.)/800/667
Specs
Reviews (43)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-EG45M-UD2H
| Brand | GIGABYTE |
|---|---|
| Model | GA-EG45M-UD2H |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium Dual-Core / Celeron |
| Chipset | Intel G45 |
|---|---|
| South Bridge | Intel ICH10R |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066(O.C.)/800/667 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 24.4cm x 24.4cm |
| Power Pin | 24 Pin |
| First Listed on Newegg | March 30, 2009 |
|---|
