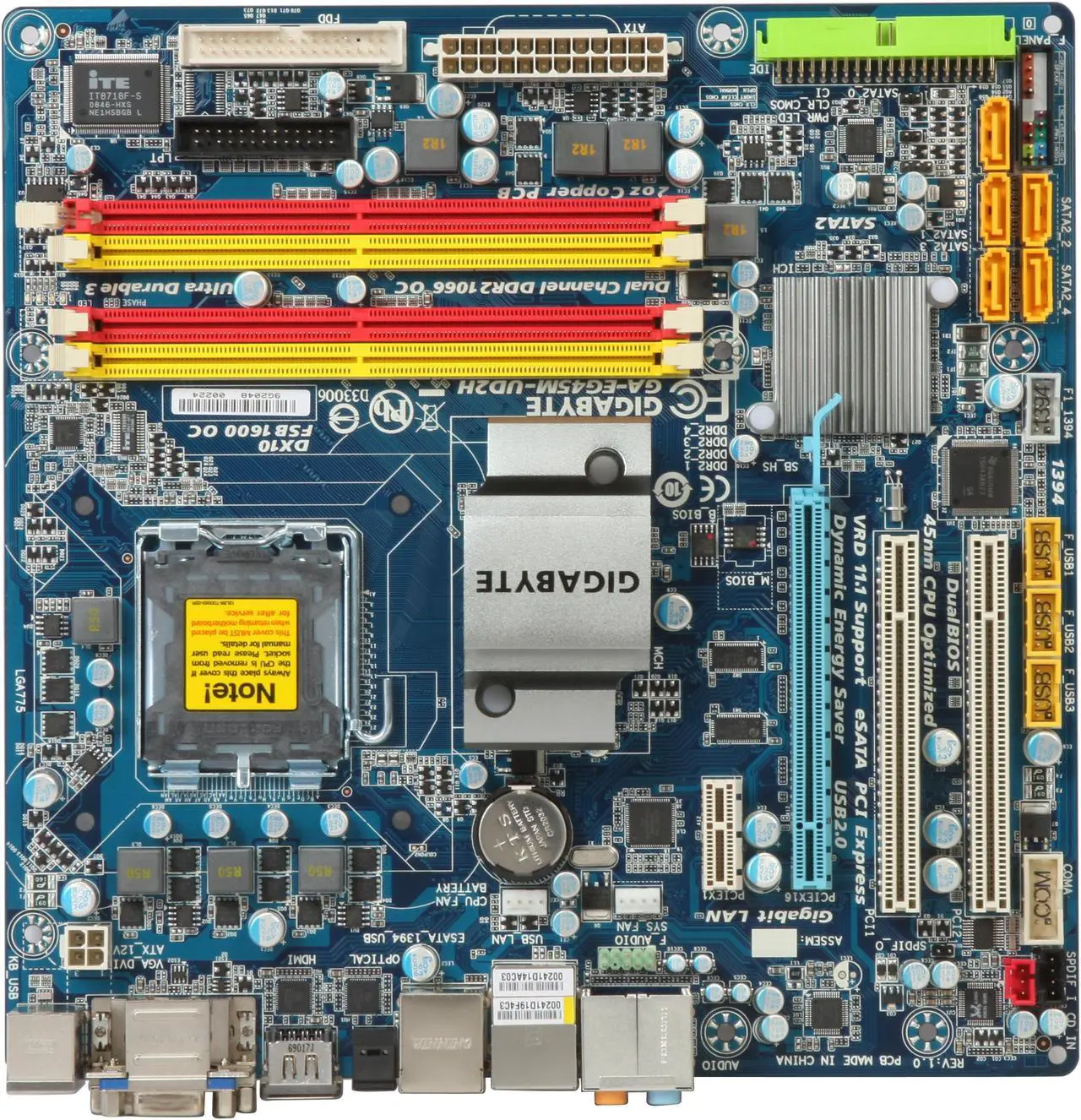

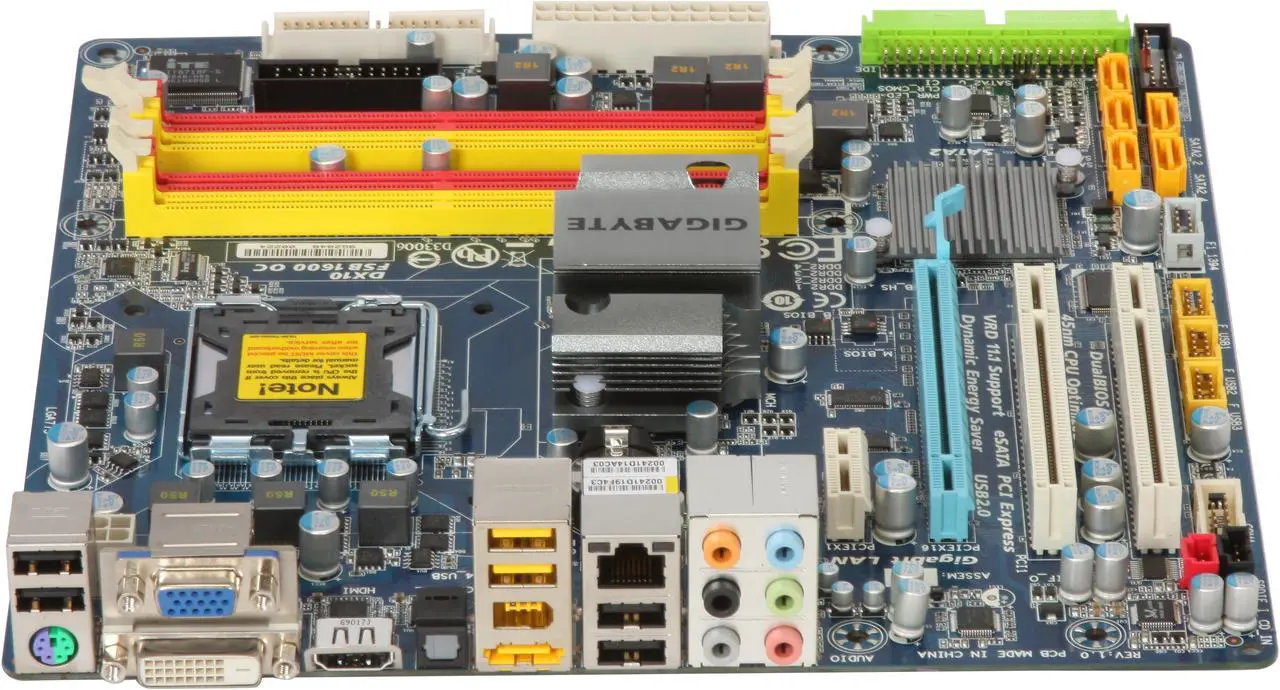

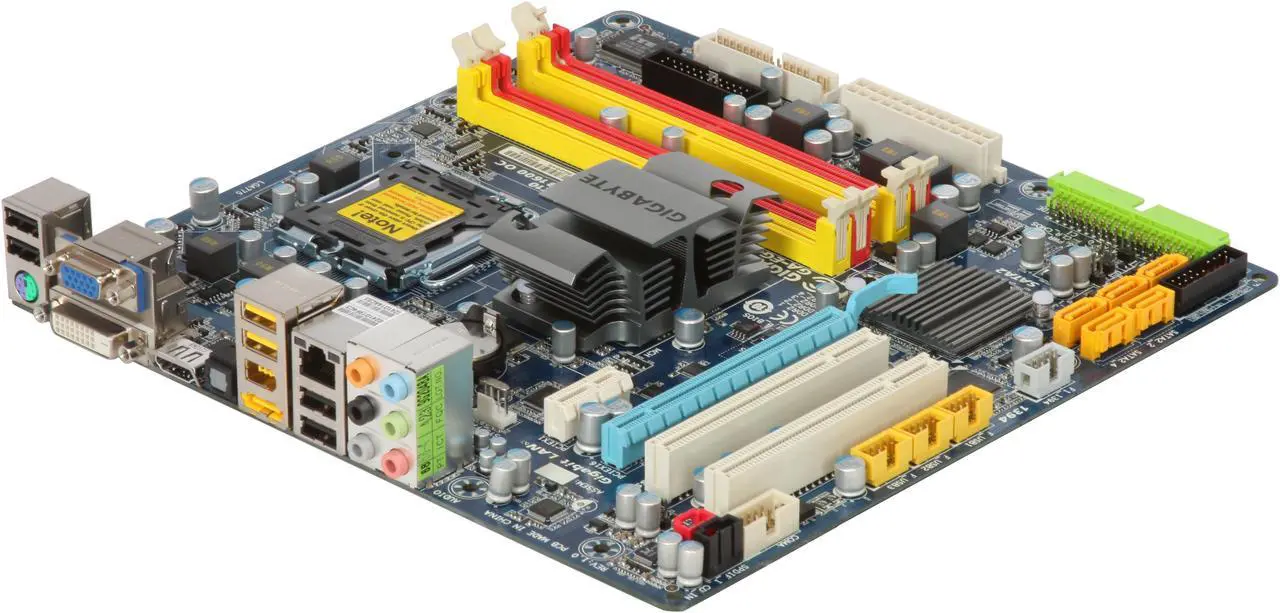

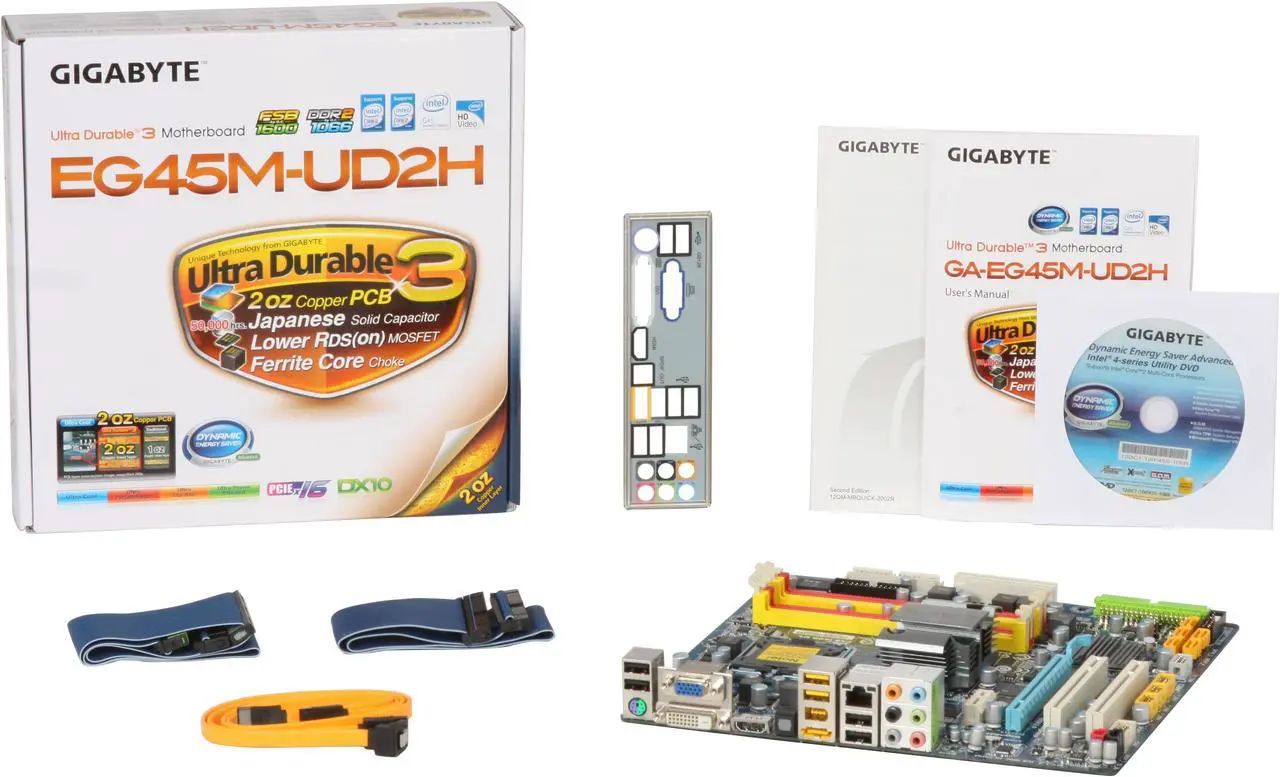

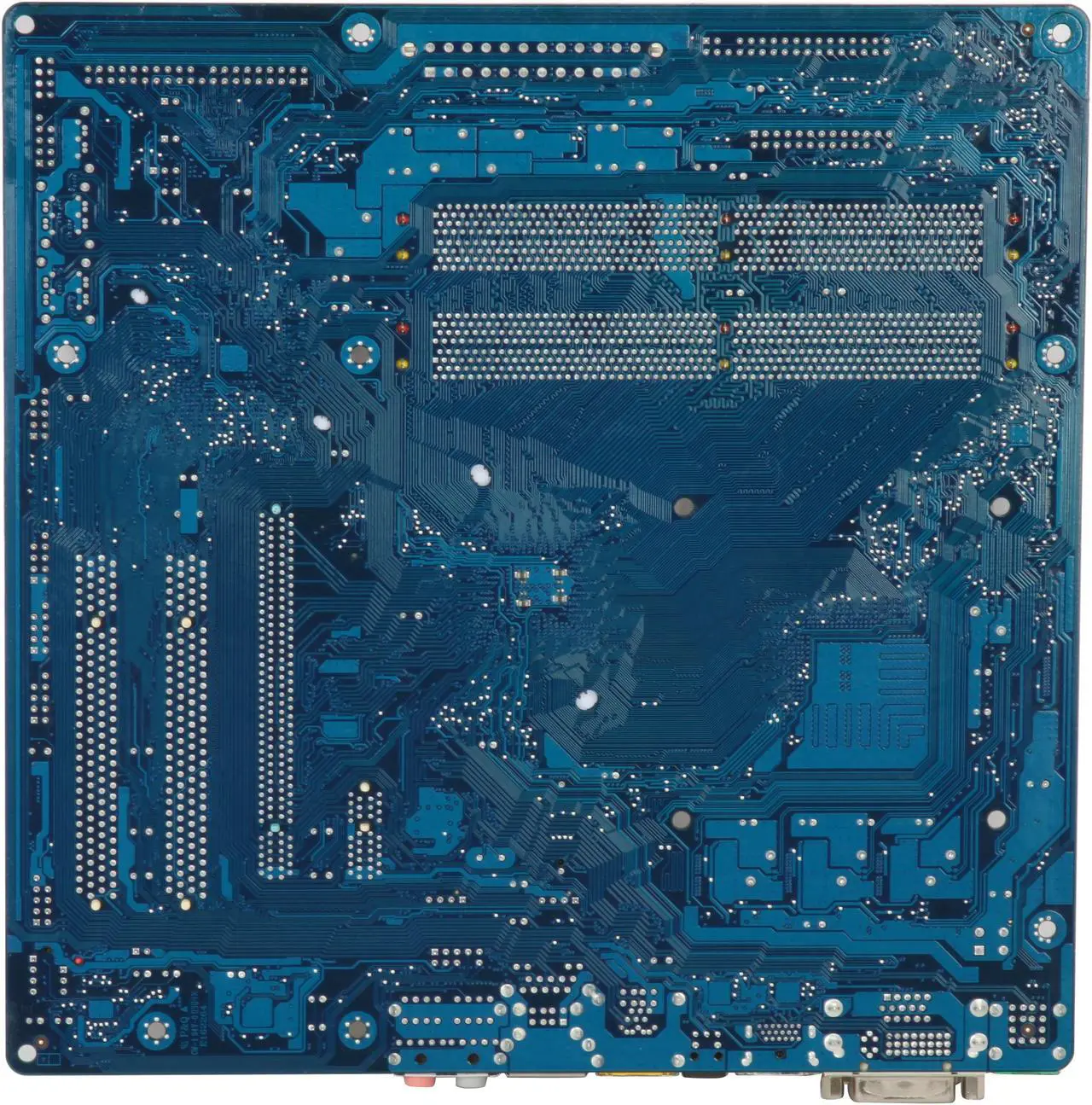

GIGABYTE GA-EG45M-UD2H LGA 775 Intel G45 HDMI Micro ATX Intel Motherboard

  • Intel G45
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium Dual-Core / Celeron
  • DDR2 1066(O.C.)/800/667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (43)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the GIGABYTE GA-EG45M-UD2H

Model
Brand GIGABYTE
Model GA-EG45M-UD2H
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium Dual-Core / Celeron
FSB 1600(O.C.)/1333/1066/800 MHz
Chipsets
Chipset Intel G45
South Bridge Intel ICH10R
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066(O.C.)/800/667
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC889A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 24.4cm x 24.4cm
Power Pin 24 Pin
Additional Information
Date First Available March 30, 2009
