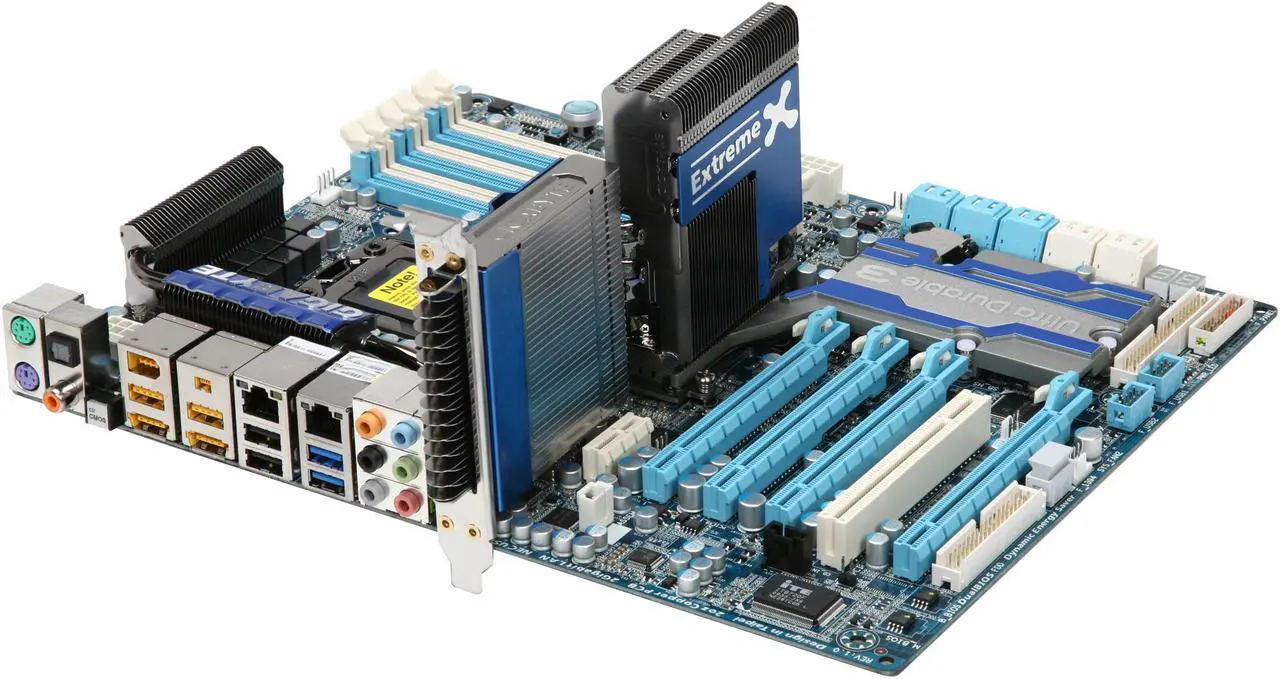

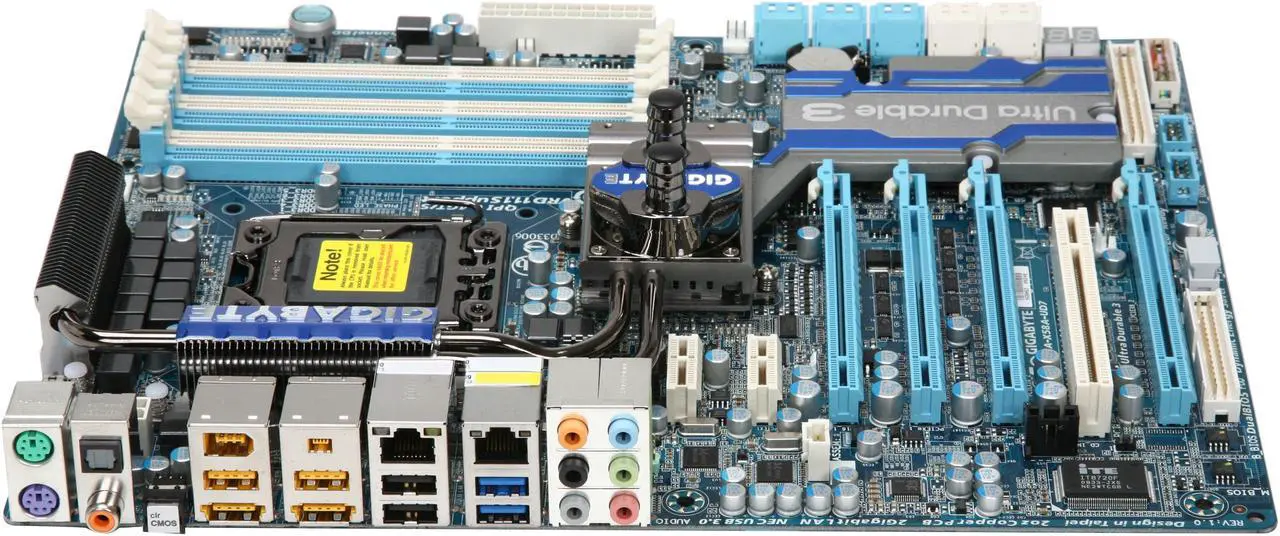

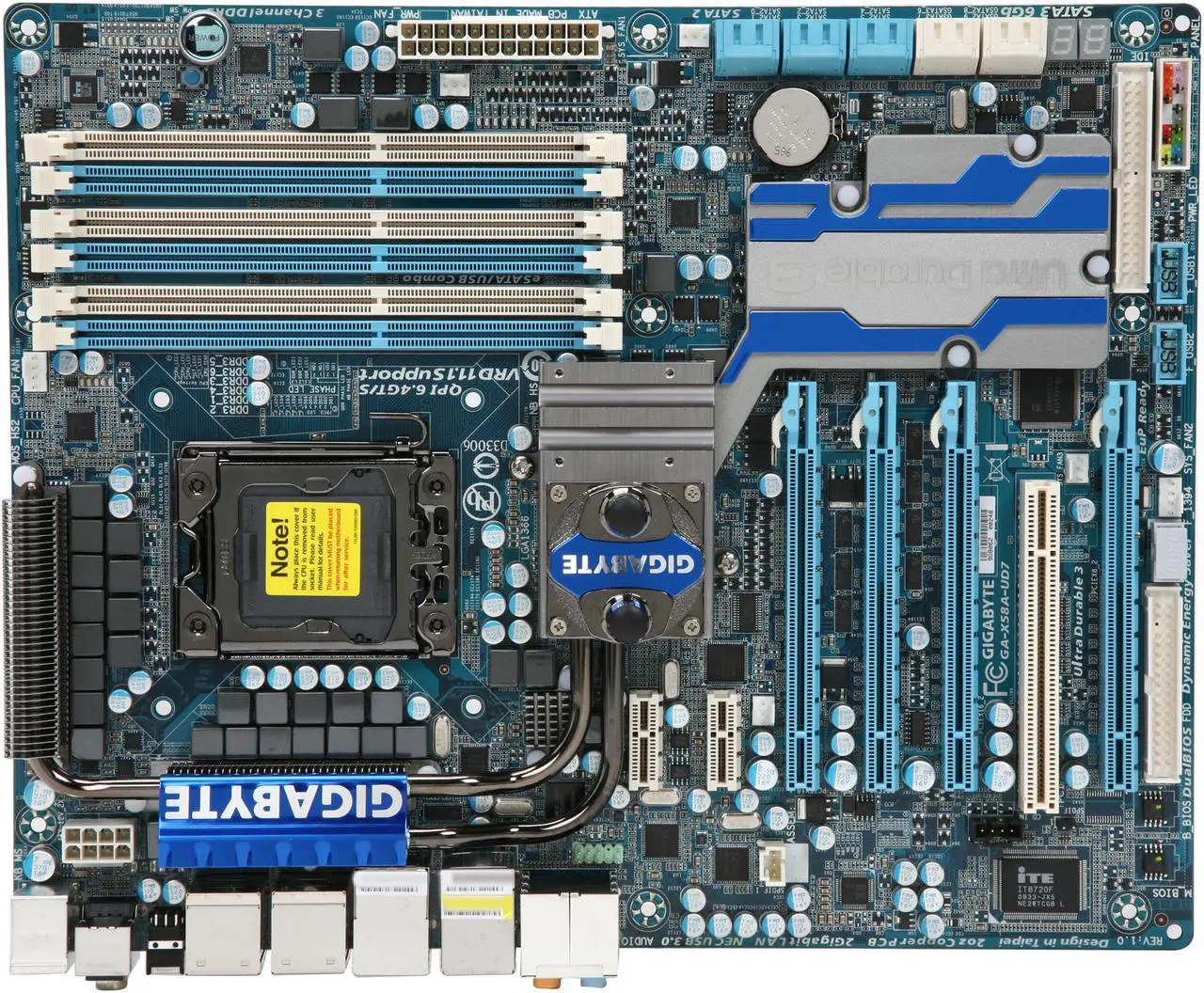

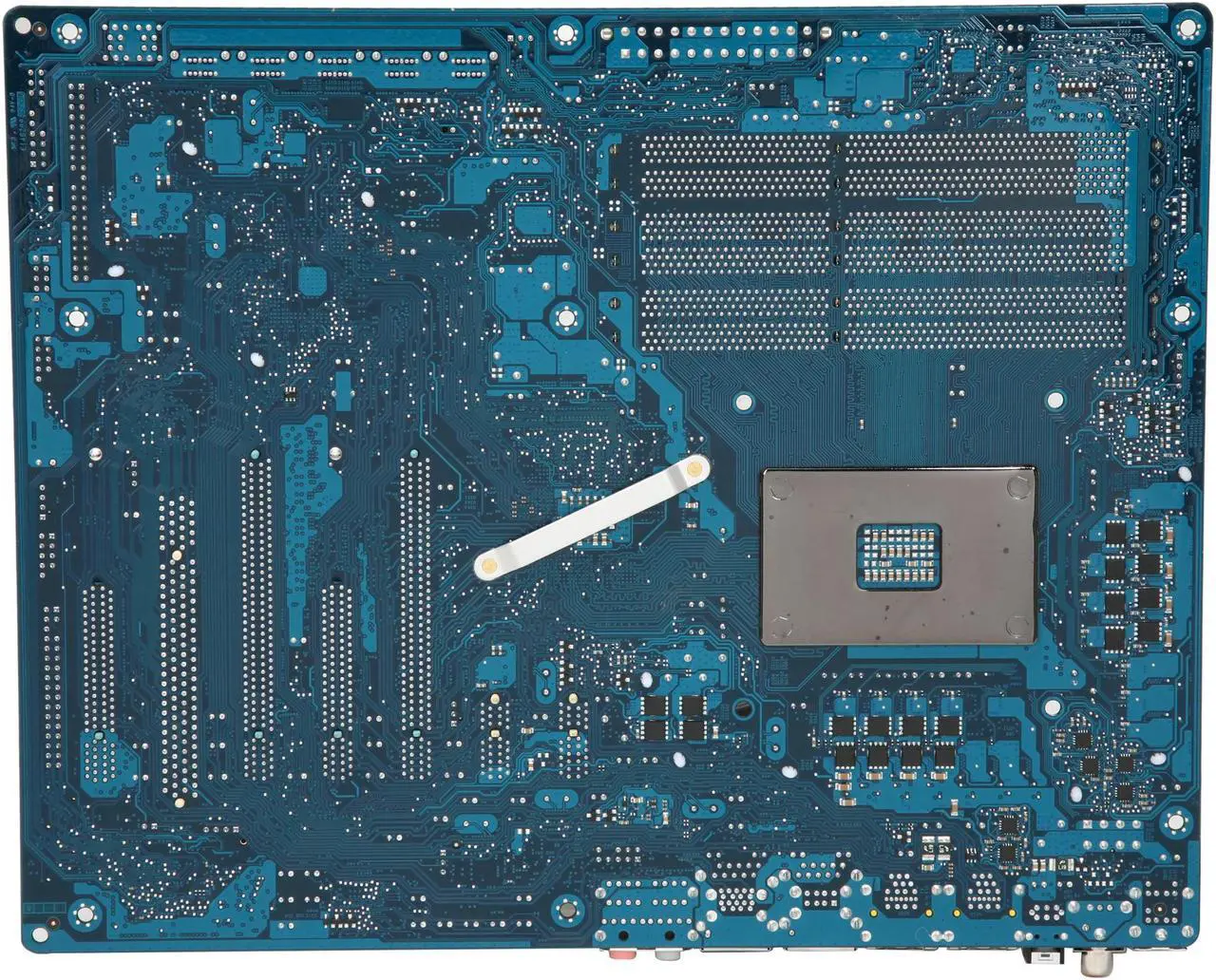

GIGABYTE GA-X58A-UD7 LGA 1366 Intel X58 USB 3.0 ATX Intel Motherboard

Used - Very Good

Intel X58
Core i7 (LGA1366)
DDR3 2200/1333/1066/800

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	GA-X58A-UD7

Supported CPU
CPU Socket Type	LGA 1366
CPU Type	Core i7 (LGA1366)

Chipsets
Chipset	Intel X58
South Bridge	Intel ICH10R

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	6x240pin
Memory Standard	DDR3 2200/1333/1066/800
Maximum Memory Supported	24GB
Channel Supported	Triple Channel

Expansion Slots
PCI Express 2.0 x16	2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots) 2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note: The PCIEX8_1 and PCIEX8_2 slots share bandwidth with the PCIEX16_1 and PCIEX16_2 slots espectively. When PCIEX8_1 is populated with an expansion card, the PCIEX16_1 slot will operate at up to x8 mode; when PCIEX8_2 is populated with an expansion card, the PC IEX16_2 slot will operate at up to x8 mode)
PCI Express x1	2 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s by Marvell 9128
SATA RAID	SATA 3Gb/s support for RAID 0/1/5/10 SATA 6Gb/s support for RAID 0/1

Onboard Audio
Audio Chipset	Realtek ALC889
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111D
Second LAN Chipset	Realtek 8111D
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
Back I/O Ports	1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	2
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	2 x IEEE 1394a
eSATA	2 x eSATA/USB Combo connectors
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0
Onboard 1394	1 x 1394a

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Features
Features	The Overclocker Names GIGABYTE Motherboards Top in Power Efficiency and Performance Get Ready to Unleash the Power of 32nm 6 Core CPUs 24 phase power- World's Best Phase Power Design Dynamic Energy Saver 2 Cloud OC Hotkey OC Smart 6 - A Smarter way for PC system Management AutoGreen - Greening your PC via Bluetooth cellphone XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease Intel Turbo Boost Technology Hybrid Silent-Pipe 2 Multi-display support with 3 way CrossFireX and 3 way SLI DualBIOS - Unique Dual Hardware BIOS Protection Hardware OverVoltage Control IC - Enabling Extreme Overclocking 50,000 Hours Japanese Solid Capacitors
