GIGABYTE GA-Z77X-UD3H LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
- Intel Z77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 2666(OC)/1600
GIGABYTE 7 series motherboards combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel® Core™ processors. With an exclusive "Digital" VRM design, GIGABYTE 3D Power and GIGABYTE 3D BIOS (Dual UEFI), GIGABYTE 7 series motherboards ensure exceptional power delivery and absolute control, with additional features that ensure an unrivalled experience on your next PC build.

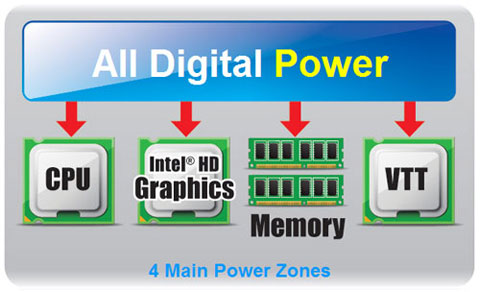

GIGABYTE All Digital Power Engine
GIGABYTE Z77 series motherboards take advantage of an exclusive All Digital PWM controller array, to deliver power to the board's 3rd generation Intel® Core™ processor. Using entirely digital controllers means that more precise power delivery to the motherboard's most power-hungry and energy-sensitive components is possible. These components include the CPU, VTT, processor graphics and memory, without doubt the most important components on your motherboard. This All Digital Power system, with Precise Auto Voltage Compensation, provides you with exceptional control over the component power delivery on your GIGABYTE 7 series motherboard.
GIGABYTE 3D Power: Digital Voltage, Frequency and Phase Control
Utilizing an exclusive All Digital controller array, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the system, no matter the loading. With digital controllers for the CPU (Vcore), VTT, processor graphics and memory (DDR), users can make real-time adjustments with the exclusive GIGABYTE 3D Power Utility, that include settings such as OVP (Over Voltage Protection), Load-line Calibration and on-the-fly PWM frequency adjustment.
GIGABYTE 3D Power (Patent Pending) Utility
Users can enjoy a fully interactive 3D utility that facilitates adjustment of the three dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.
3D Power: Voltage Control
Voltage parameters can be modified within 3D Power, including load line calibration of the CPU. By adjusting load line calibration, Vdroop can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, IGP, VTT and system memory.
3D Power: Phase Control
Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed.
3D Power: Frequency Control
GIGABYTE's all digital PWM allows for adjustable frequency control via the International Rectifier PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.
GIGABYTE 3D BIOS (Patent Pending)
The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiasts and mainstream users with a choice of unique and powerful graphical interfaces.
UEFI DualBIOS™ Technology
At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.
GIGABYTE Ultra Durable™ 4 – Insist on an Ultra Durable Motherboard
GIGABYTE Ultra Durable™ 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats
This board fully supports all the features of Ultra Durable™ 4. A PCB printing error occurred and it was labeled incorrectly as Ultra Durable™ 3.
GIGABYTE EZ Smart Response
The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.
GIGABYTE EZ Setup
GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel® Smart Response, Intel® Rapid Start and Intel® Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.
Onboard mSATA Support
GIGABYTE 7 series motherboards feature an onboard mSATA slot allowing users to easily take advantage of advanced SSD-based technologies like Intel® Smart Response and Intel® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC's performance with better overall desktop responsiveness, faster boot times and faster system resume from "Suspend to Disk" and "Standby" modes.
GIGABYTE 333 Onboard Acceleration
GIGABYTE 7 series motherboards feature GIGABYTE 333 Onboard Acceleration, a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.
GIGABYTE On/Off Charge
GIGABYTE 7 series motherboards feature ON/OFF Charge, a unique GIGABYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model.
Enhanced Built-in Visuals
With updated and improved processor graphics and multimedia, 3rd generation Intel® Core™ processors offer you the best possible media and entertainment experience. Native support for multiple digital displays, plus DirectX 11 capable graphics, Intel® Quick Sync Video 2.0 and Intel® HD Graphics 4000/2500 ensure you can enjoy new levels of 3D gaming and HD content manipulation.
Intel® Quick Sync 2.0
Faster Media Encoding Performance
Saves valuable time when you create and edit video, synchronize it with other devices, and share it at home and on the internet. Intel Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding.
Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.
Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.
3rd Generation Intel® Core™ processors
New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.
Designed for PCI Express Gen.3 Support
GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.
*PCIE Gen.3 is dependent on CPU and expansion card compatibility.
Intel® Rapid Start Technology
Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.
Intel® Smart Connect Technology
Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered — just press the "on" button and you're up-to-date and ready to go.
Auto Sync with Cloud
No manual interaction required to synchronize with cloud services.
Email, social media, and cloud apps always updated and available at power on.
Onboard OC Features
GIGABYTE Z77 motherboards add special onboard features that assist DIY builders and overclockers in getting the absolute maximum control from their new 3rd generation Intel® Core™ processors.
Onboard Power and Reset buttons are accompanied by an LED Debug Display that puts users in the driver's seat when experimenting with different hardware configurations.
Overclockers will appreciate having Onboard Voltage Read Points, which have been added to allow for accurate real-time voltage reading when pushing your processor and memory to absolute extremes. OC-PEG provides two onboard SATA power connectors for more stable PCIe power when using 3-way and 4-way graphics configurations.
An exclusive Onboard BIOS Switcher is also included which allows users to easily switch between the motherboard's Dual UEFI BIOS ROMs. This makes it easier to switch between overclocking and regular BIOS settings and also to try a new BIOS revision without losing your original settings. An Onboard Clear CMOS buttons makes it easier than ever to reset your BIOS to its factory defaults.
DirectX 11 Support
Better Visual Experience
Microsoft DirectX 11 provides eye-popping 3D visuals found for today's latest PC games and is designed to be more efficient, leverage the power of today's multi-core processors, and provide support for sophisticated shading and texturing techniques such as tessellation.
LAN Optimizer - Intelligent Optimization Network Management Tool
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.
Flexible graphics capabilities supported for either CrossFire™ or SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
*Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
*All trademarks and logos are the properties of their respective holders.
*Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
