Question 1

can the board  boot up from hdmi   I want to use 1 hdmi for monitor and  one for  tv ?

Accepted Answer

Running Win7x64 and I boot to both an HDMI and DVI, using the TV as the primary display

Question 2

what socket does this board accept?

Accepted Answer

Its 2nd and 3rd gen intel processors. The new Haswell processors are socket 1150, thus cannot be used on this board which is 1155

Question 3

Has anyone used an 8 GB memory module at 1600 speed?  I have a Corsair vengeance stick in the 2nd channel since my cpu cooler is too large to allow it in the 1st :(.  I have been receiving many BSODs unless running in safe mode.  I just found tonight that if I set the memory setting in BIOS to run the memory at 1333 speed, my system runs smooth (strange seeing the board supports 1600).

Accepted Answer

I think on the i3, i5, and the i7 CPU motherboards the CPU has the memory controller built in so it might be more of a mater as to what the CPU can handle and at what speed as it was designed for dual channel operation at that speed with the xmp profile activated in the bios for timing along with making sure the proper memory voltage is set

Question 4

Is this motherboard powered typical interal fan-cooled power supply or can it be powered with a 5.5mm/wall wart/power brick?

Accepted Answer

This motherboard uses a mini-ITX desktop PSU with 1x24-pin ATX main power connector and 1x4-pin ATX 12V power connector.  As I bought the SILVERSTONE SST-SG08B Mini-ITX Desktop Case with 600W PSU, you can see some of the specs of the PSU by looking at the case here at Newegg.  The PSU that came with that case has an internal fan that vents out the bottom of the case.

Question 5

Does this have USB 2.0 or 3.0 front panel headers? (Sorry if this is a silly question, I don't know enough about the headers to tell from the pictures.)

Accepted Answer

sure does!

Question 6

Can you team the NIC's?

Accepted Answer

"Dual Gigabit LAN with Teaming function" this is one feature the board provided. Michael R need to take a look at the manual first before providing the incorrect answer.

Question 7

Does this have Coaxial output for sound?

Accepted Answer

No it does not. Better specs can be found on Gigabytes website.
http://www.gigabyte.us/products/product-page.aspx?pid=4338#sp

Question 8

In addition to TEAMING, is FAILOVER possible or is FAILOVER only available for SERVERS? I have TWO internet providers.

Accepted Answer

Bear in mind that there are two different branded NICs on this mobo. One is Intel-branded, one is Qualcomm-branded. So either of their software teaming solutions for OS's that don't natively support it, will *not* work  (if Qualcomm even has one?)

Now if you're installing any flavor Server 2012 R2, the OS itself has native NIC teaming that cares not what brand of network card you throw at it. So yes, assuming you're on a 2012 R2 product or a 2016 Preview, a NIC team made of the 2 NICs on this motherboard will work fine and can provide failover.

All that said, a failover ISP should be handled at the network level, not on the machine itself. Get yourself a dual WAN router from Cisco, Peplink, Ubiquiti, et al.

Question 9

Does this support Wifi b/g/n/ac?

Accepted Answer

Not sure about ac, but it definitely supports b/g/n. I'm using an n-only wireless router and it connects just fine with good n speeds.

Question 10

Hi there,
I am building a home theater PC on a budget. Windows Ultimate 7 OS, and it is freaky fast already. I have downloaded all drivers. It works perfect, except video is lagging with very choppy frame rate. I think I can put in 1 x PCIE 3.0 x 16 gpu, but I am not sure. I know that my MoBo can take either 2 ATI or AMD. I read on a forumboard that if I used a PCIE 3.0 x 16, it would depend on the processor, which is an Intel LGA 1155 Ivybridge. Here is my build
Intel LGA 1155 IvyBridge H77
Gigabyte GA-H77N-WIFI DDR3 1600 HDMI SATA 6Gb/s USB 3.0 Mini ITX Motherboard

I am trying to just use it as my TV. Could you help me pick a graphics card please?

Accepted Answer

I have build Home theater computer and do not understand why you're fighting video card ?? It not needed at all. You must use HDMI or DISPLAY connector on back of computer ( on Mother Board directly ) and you TV better to have one ready to be connected, so remove Video Card and be at peace !!! and also use Windows 7 Pro and download if you have not all recommended drives for Windows Media Center and better install  TV Tuner Card instead of Video Card.  Keep in mind your Mother Board has graphic function with respective Intell supporting processor and it looks like to me ( I have same MB ) you already have correct MB and what is the Intel processor you had installed ???

Brand	GIGABYTE
Model	GA-H77N-WIFI

CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600/1333/1066/800
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

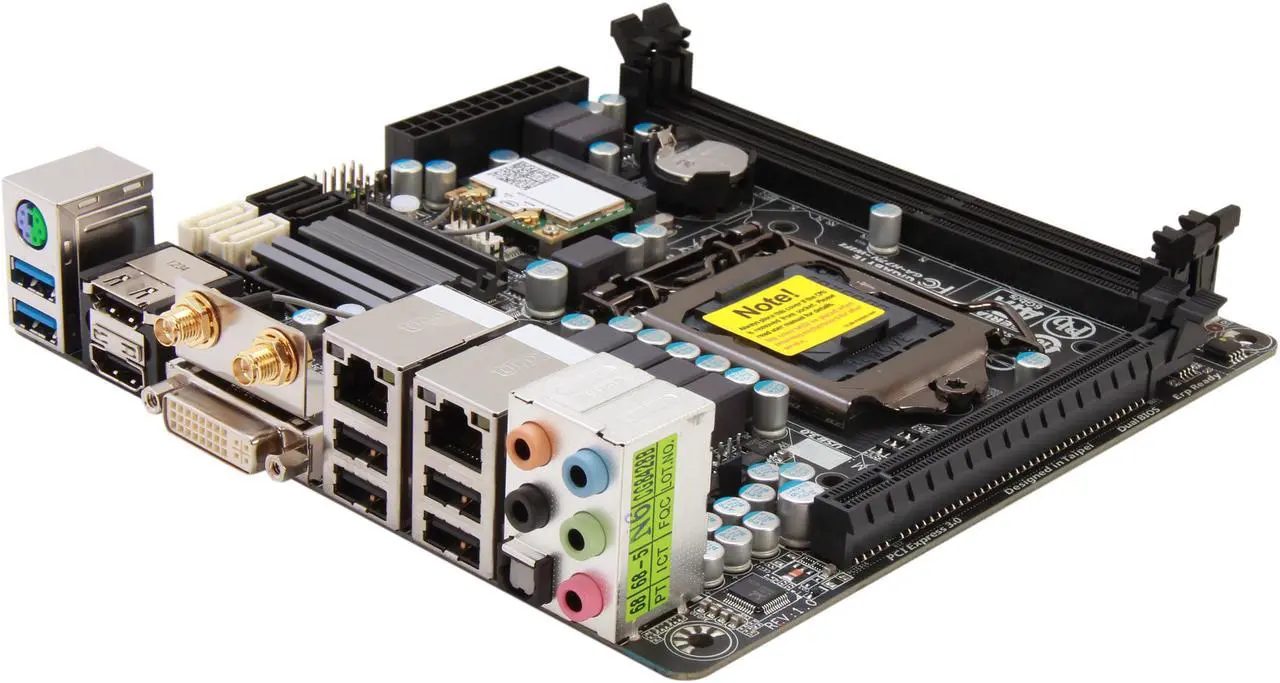

GIGABYTE GA-H77N-WIFI LGA 1155 Intel H77 HDMI USB 3.0 Mini ITX Intel Motherboard

Learn more about the GIGABYTE GA-H77N-WIFI

Customer Reviews of the GIGABYTE GA-H77N-WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

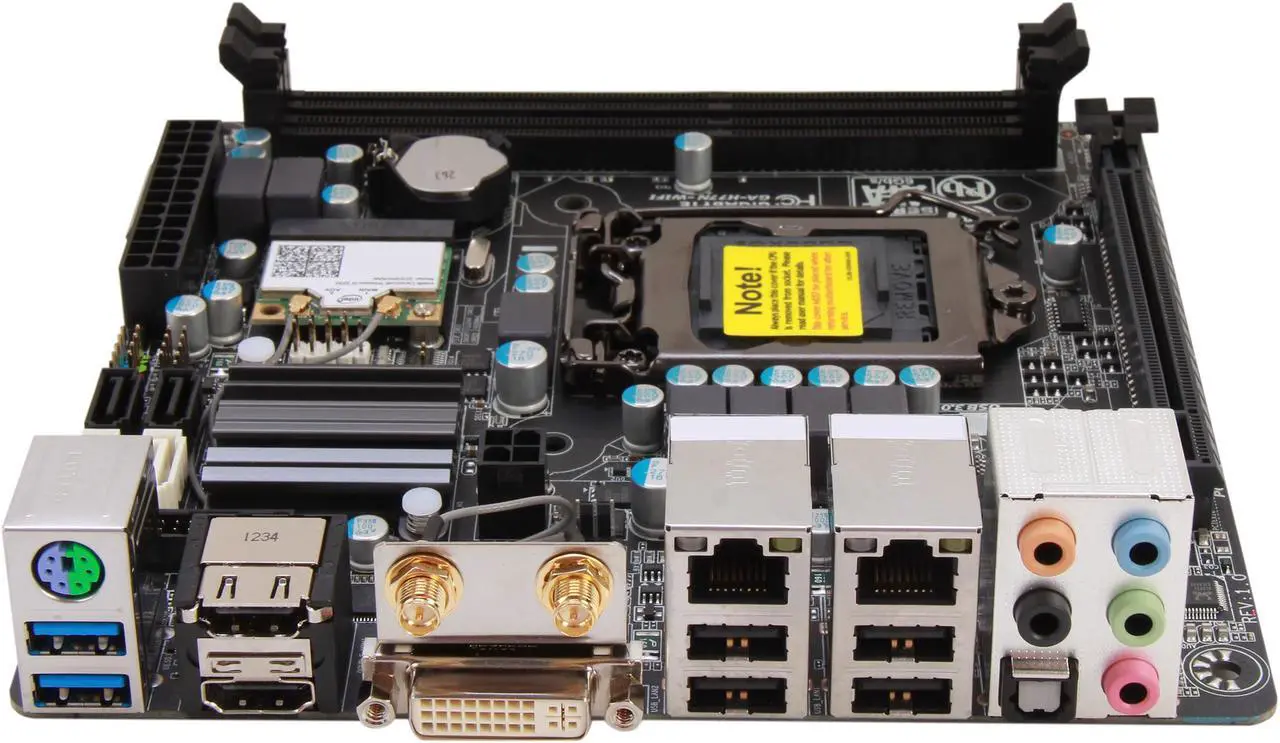

Back I/O Ports	1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x HDMI / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	DVI
HDMI	2 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Onboard USB	2 x USB 3.0 + 4 x USB 2.0

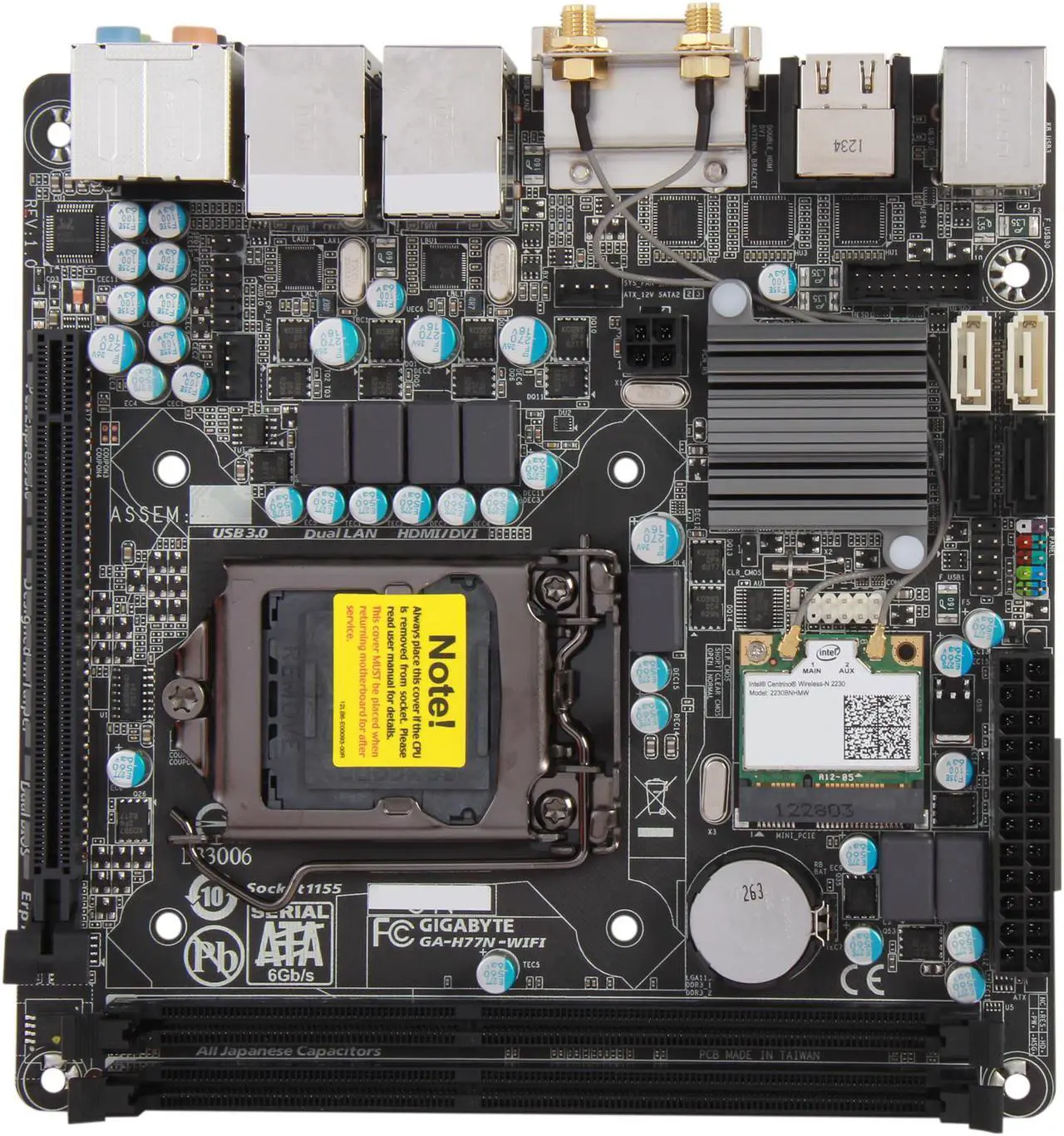

Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x serial port header 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Clear CMOS jumper

Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	24 Pin
