does this board support DDR4? and if yes, does it support DDR4 speeds or will it only clock at DDR3 speeds? thanks.

No, this being a Z77 and not X99 chipset it does not support DDR4 You would need the X99 Chipset motherboard and a i7 5820k

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

GA-Z77X-UP7 Memory Compatibility

GA-Z77X-UP7 CPU Compatibility

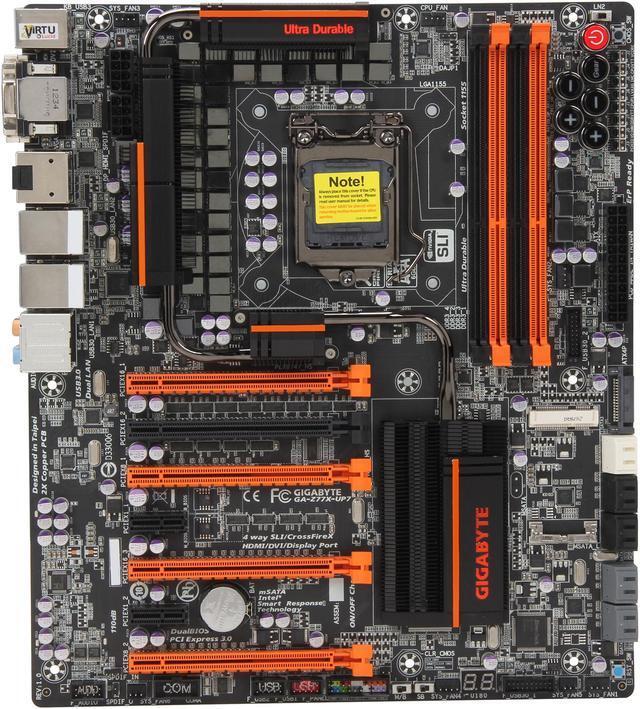

Main image of GIGABYTE GA-Z77X-UP7 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard

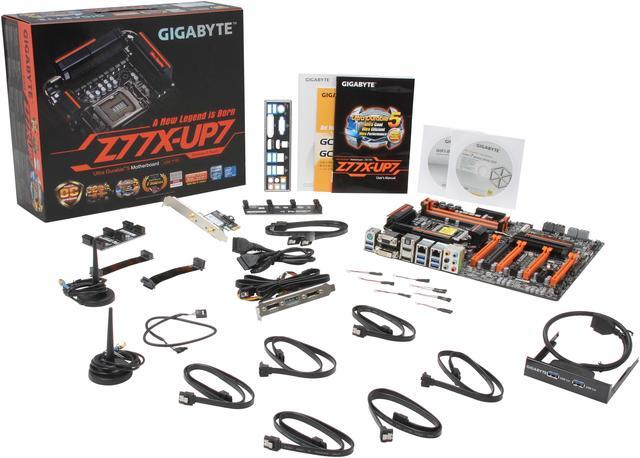

Alt view image 2 of 5 - GIGABYTE GA-Z77X-UP7 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard

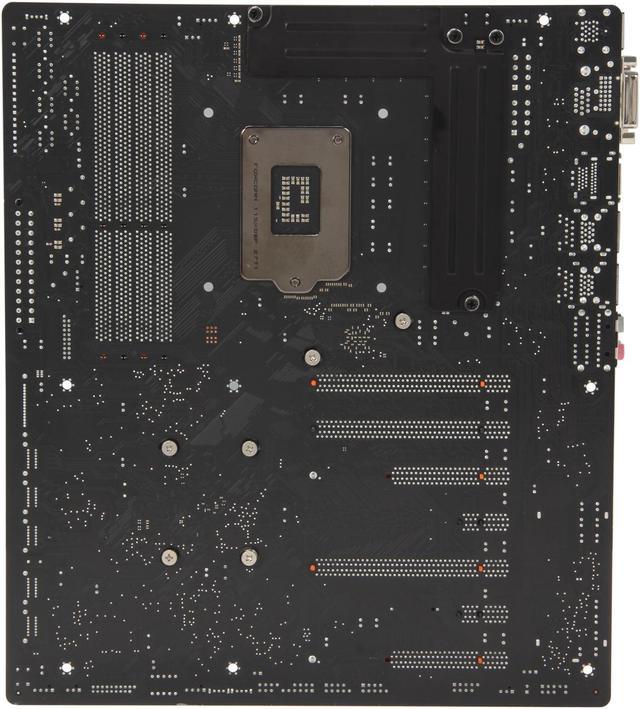

Alt view image 3 of 5 - GIGABYTE GA-Z77X-UP7 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard

Alt view image 4 of 5 - GIGABYTE GA-Z77X-UP7 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard

Alt view image 5 of 5 - GIGABYTE GA-Z77X-UP7 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard

Shop All GIGABYTE Products

GIGABYTE GA-Z77X-UP7 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard

(23) Write a Review

Intel Z77
Core i7 / i5 / i3 (LGA1155)
DDR3 2400+ (OC)/1600

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (23)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	GA-Z77X-UP7

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Chipsets
Chipset	Intel Z77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 2400+ (OC)/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	5 (3 x16 and 2 x8)
PCI Express x1	2 x PCI Express x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	2 x SATA 6Gb/s (SATA3 0~1) and 4 x SATA 3Gb/s (SATA2 2~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10 4 x SATA 6Gb/s Support for RAID 0 and RAID 1

Onboard Audio
Audio Chipset	Realtek ALC898
Audio Channels	8 Channels

Onboard LAN
Max LAN Speed	2 x 1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
Bluetooth	Yes

Rear Panel Ports
Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	6 x USB 3.0
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x mSATA connector 1 x CPU fan header 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x S/PDIF In header 1 x serial port header 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x Clear CMOS button 1 x Gear button 1 x CPU BCLK Down button 1 x CPU BCLK Up button 1 x CPU Ratio Down button 1 x CPU Ratio Up button 1 x onboard voltage measurement module 2 x BIOS switchs 1 x LN2 switch

Physical Spec
Form Factor	Extended ATX
Dimensions (W x L)	12" x 10.39"
Power Pin	24 Pin

Features
Features	Industry Leading 32+3+2 Phase CPU Power Design True All Digital PWM Design GIGABYTE 3D Power Utility GIGABYTE Ultra Durable 5 4-Way Graphics GIGABYTE 3D BIOS OC-Touch Thin Fin Cooling Design GIGABYTE 333 Onboard Acceleration GIGABYTE On/Off Charge Onboard mSATA Support 80 Port Debug Display Exclusive Bluetooth 4.0/WiFi Expansion Card Lucid Universal MVP Support

Additional Information
First Listed on Newegg	October 03, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.
