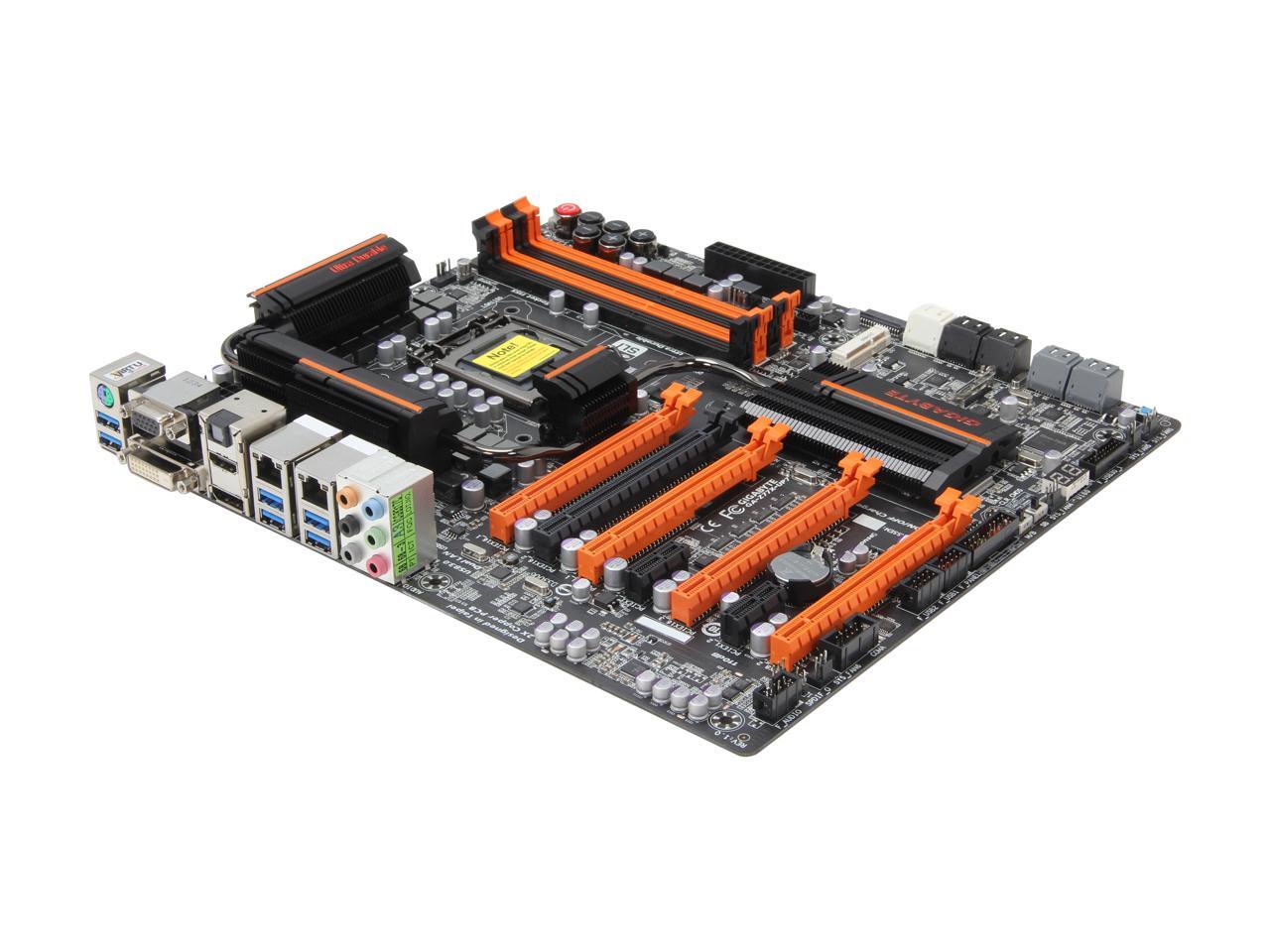

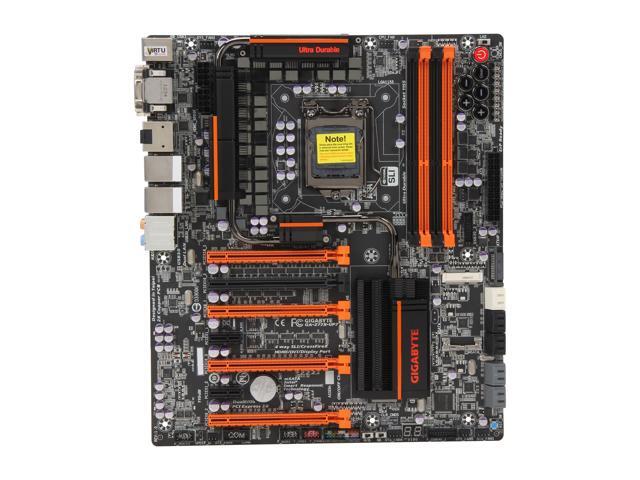

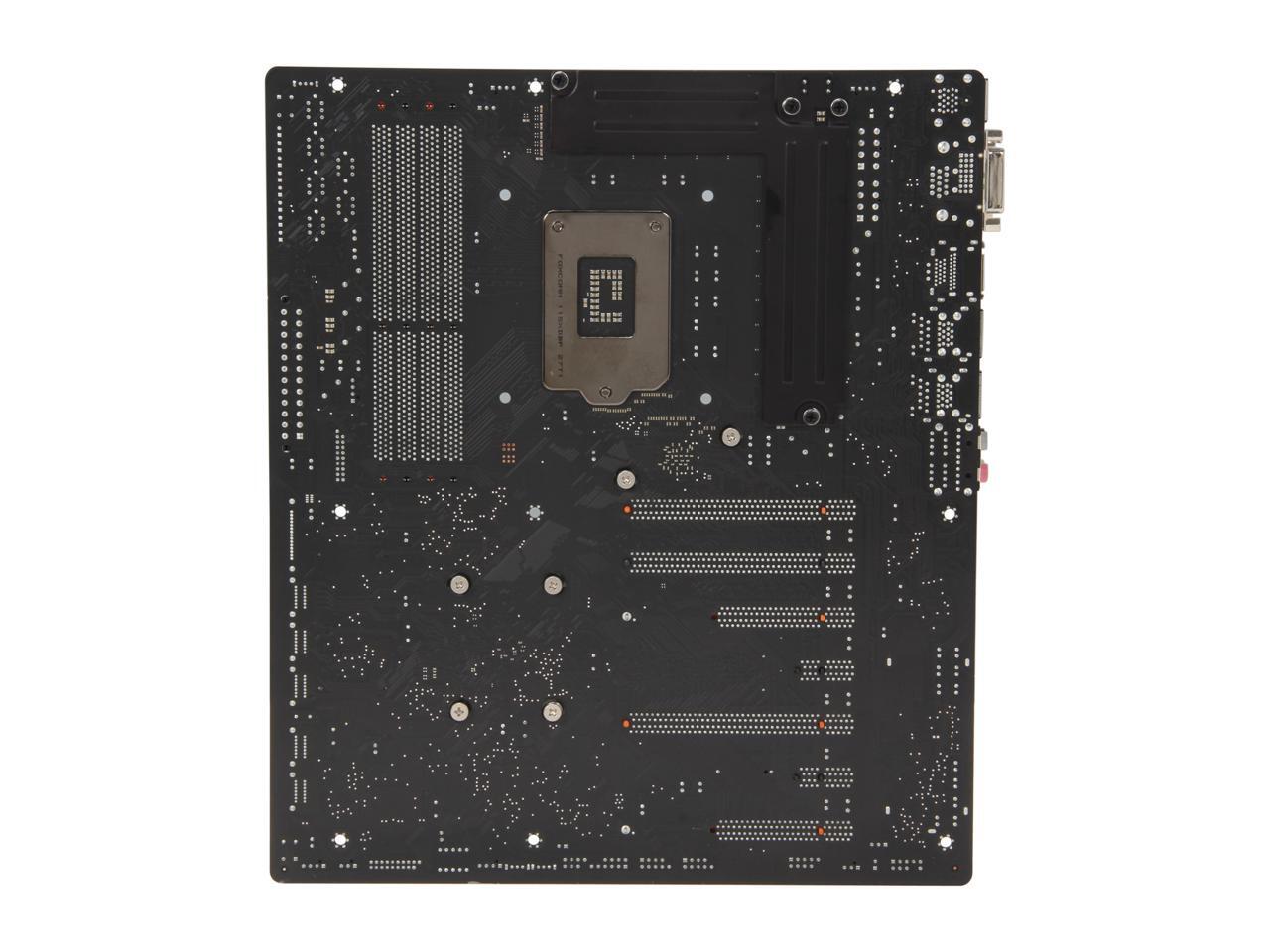

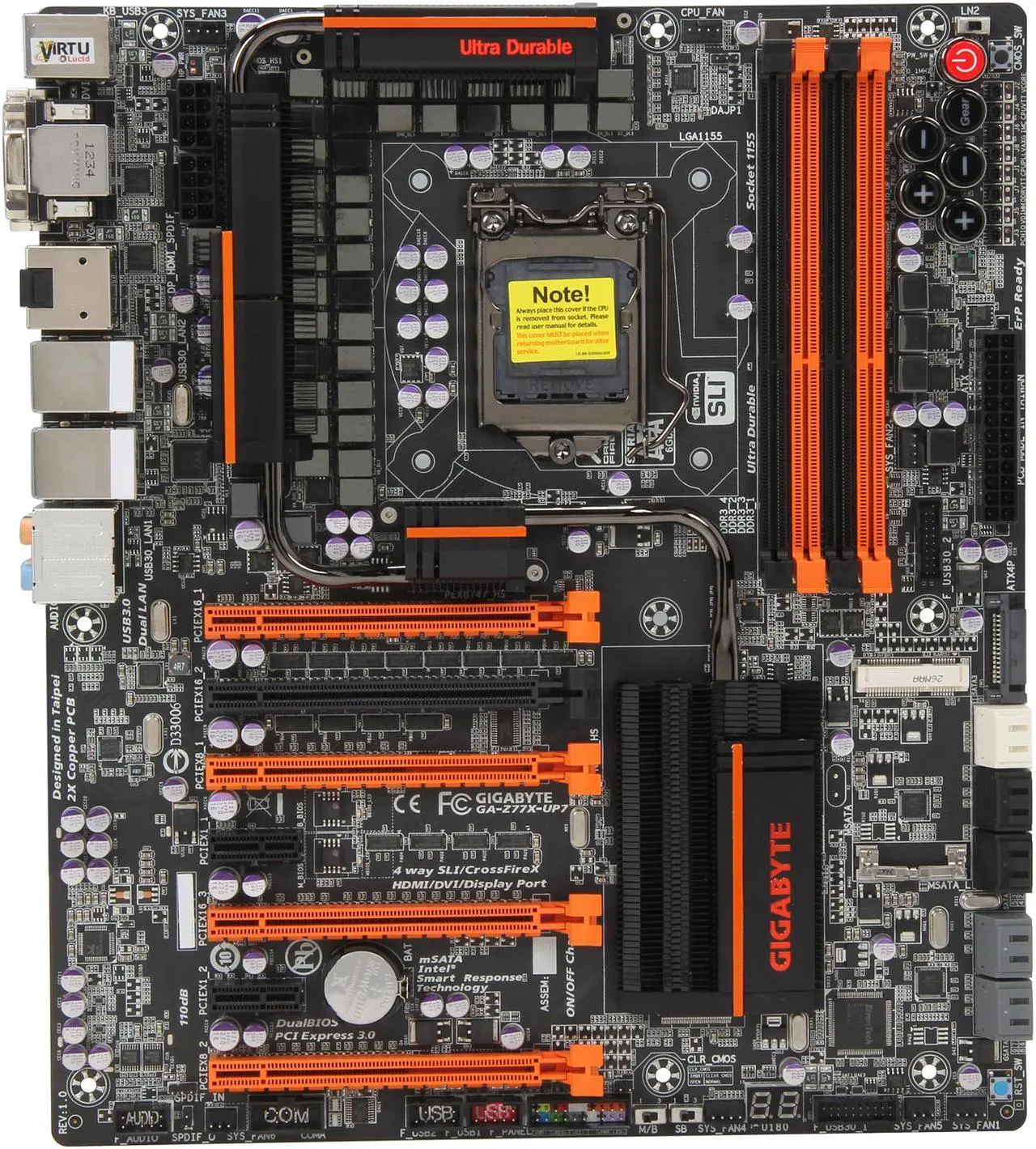

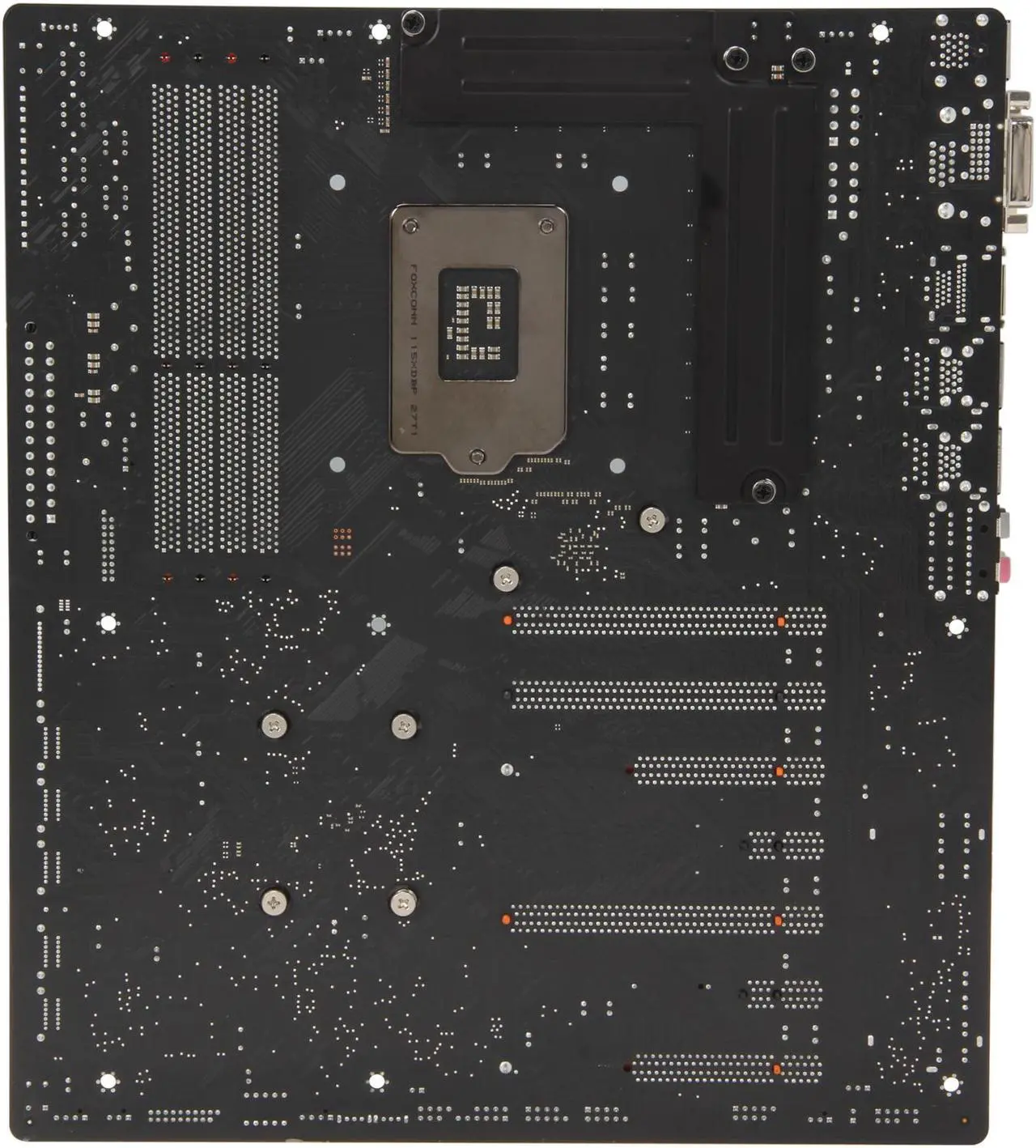

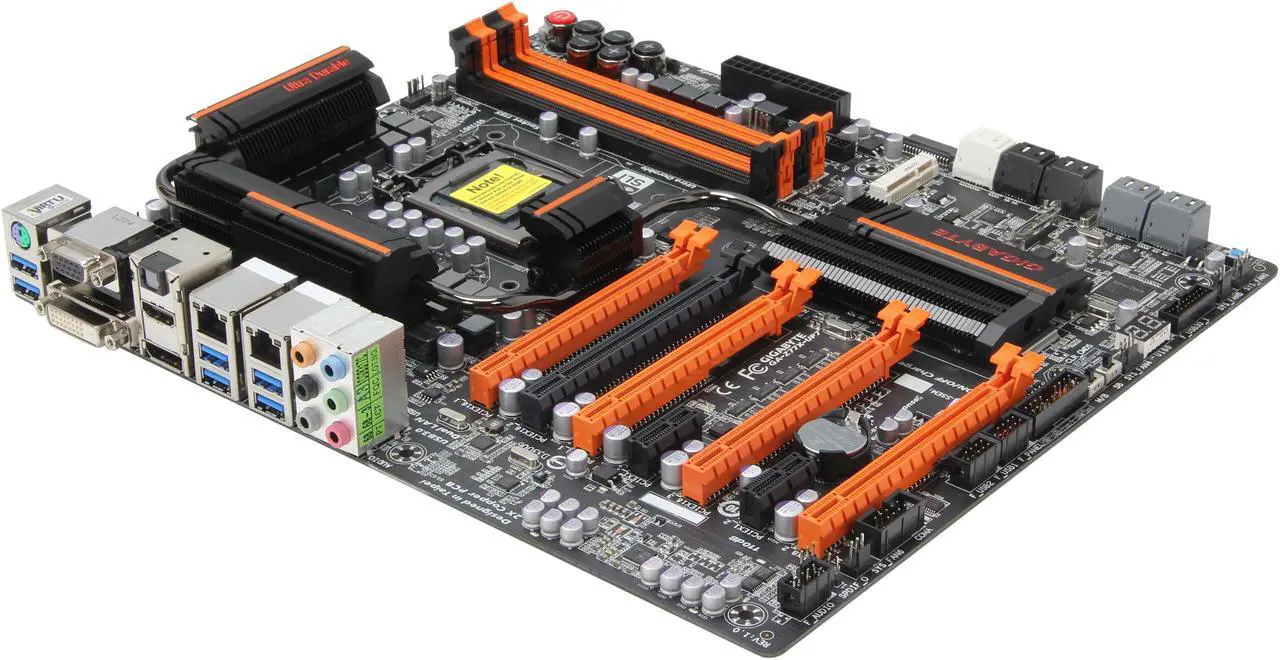

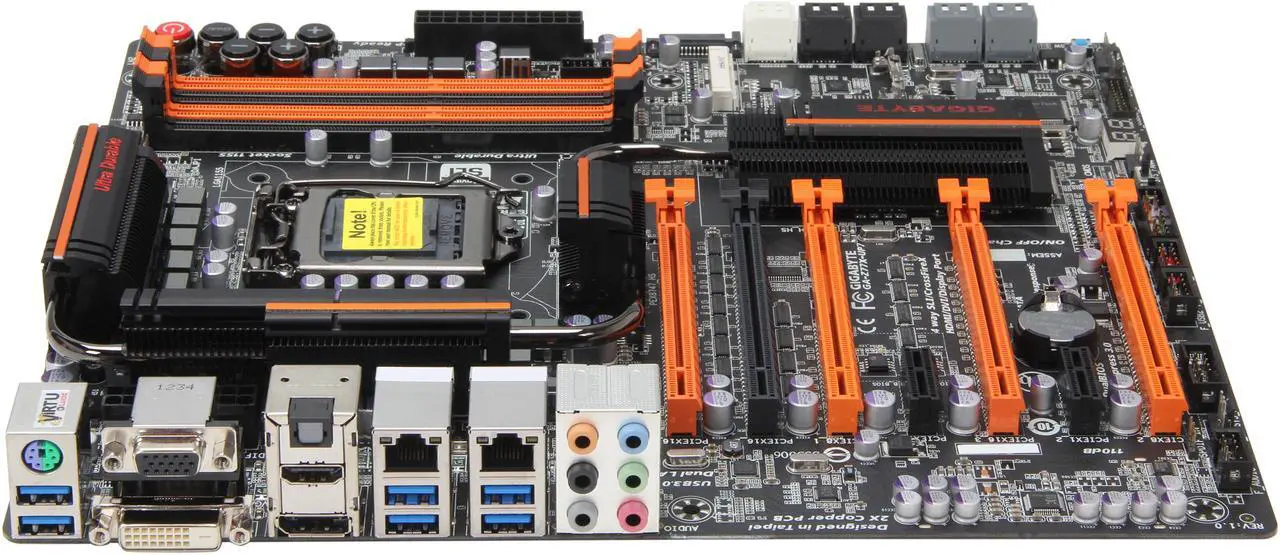

Brand | GIGABYTE |
---|---|
Model | GA-Z77X-UP7 |
CPU Socket Type | LGA 1155 |
---|---|
CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
Chipset | Intel Z77 |
---|
Onboard Video Chipset | Supported only by CPU with integrated graphic |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR3 2400+ (OC)/1600/1333/1066 |
Maximum Memory Supported | 32GB |
Channel Supported | Dual Channel |
PCI Express 3.0 x16 | 5 (3 x16 and 2 x8) |
---|---|
PCI Express x1 | 2 x PCI Express x1 |
SATA 3Gb/s | 4 x SATA 3Gb/s |
---|---|
SATA 6Gb/s | 6 x SATA 6Gb/s |
SATA RAID | 2 x SATA 6Gb/s (SATA3 0~1) and 4 x SATA 3Gb/s (SATA2 2~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10 4 x SATA 6Gb/s Support for RAID 0 and RAID 1 |
Audio Chipset | Realtek ALC898 |
---|---|
Audio Channels | 8 Channels |
Max LAN Speed | 2 x 1Gbps |
---|---|
Wireless LAN | Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band |
Bluetooth | Yes |

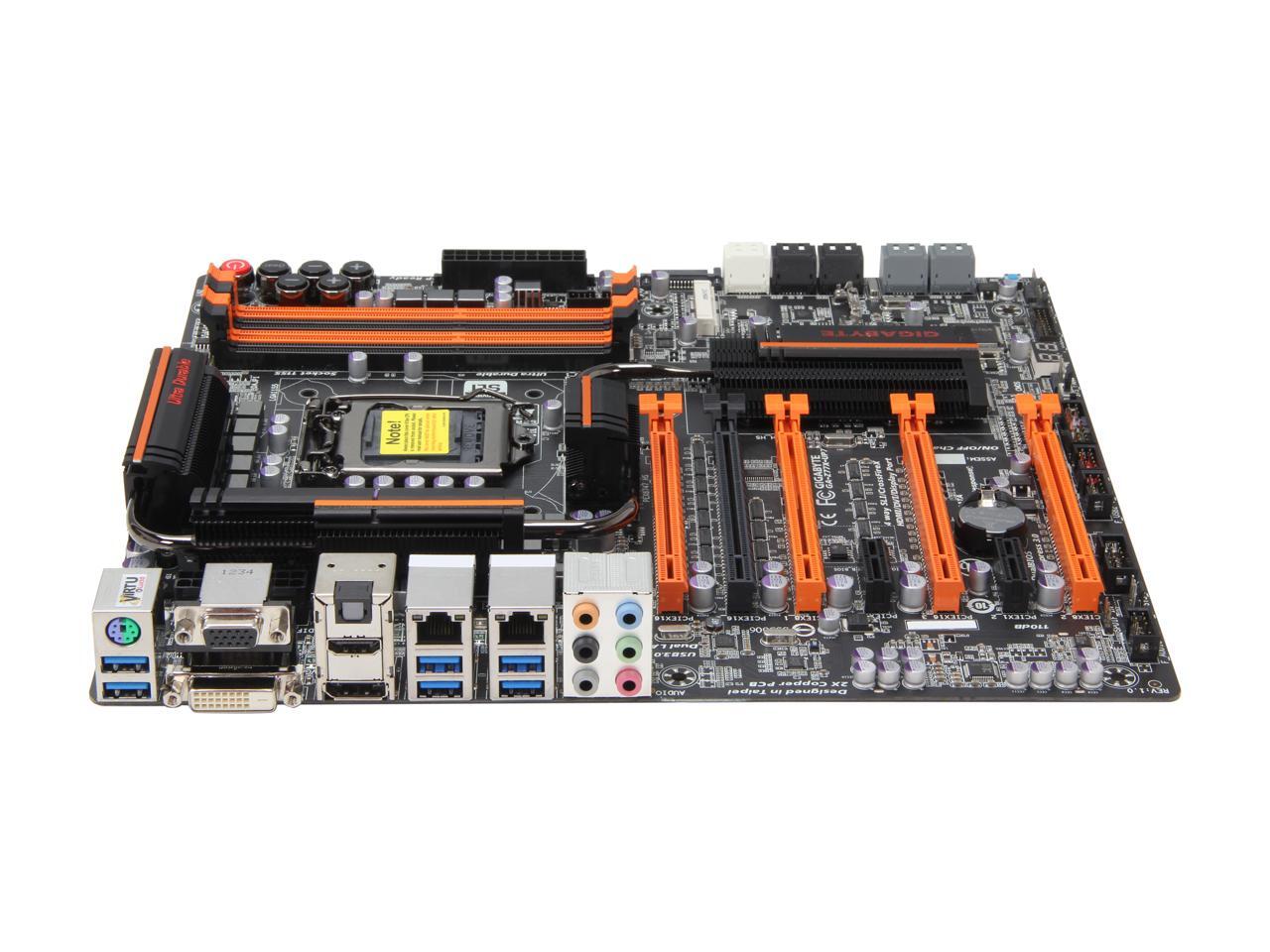

Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 3.0 |
---|---|
PS/2 | 1 x PS/2 keyboard/mouse port |
Video Ports | D-Sub + DVI |
HDMI | 1 x HDMI |
DisplayPort | 1 x DisplayPort |
USB 3.0 | 6 x USB 3.0 |
S/PDIF Out | 1 x Optical |
Audio Ports | 6 Ports |
Onboard USB | 4 x USB 3.0 + 4 x USB 2.0 |
---|---|
Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x mSATA connector 1 x CPU fan header 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x S/PDIF In header 1 x serial port header 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x Clear CMOS button 1 x Gear button 1 x CPU BCLK Down button 1 x CPU BCLK Up button 1 x CPU Ratio Down button 1 x CPU Ratio Up button 1 x onboard voltage measurement module 2 x BIOS switchs 1 x LN2 switch |
Form Factor | Extended ATX |
---|---|
Dimensions (W x L) | 12" x 10.39" |
Power Pin | 24 Pin |
Features | Industry Leading 32+3+2 Phase CPU Power Design True All Digital PWM Design GIGABYTE 3D Power Utility GIGABYTE Ultra Durable 5 4-Way Graphics GIGABYTE 3D BIOS OC-Touch Thin Fin Cooling Design GIGABYTE 333 Onboard Acceleration GIGABYTE On/Off Charge Onboard mSATA Support 80 Port Debug Display Exclusive Bluetooth 4.0/WiFi Expansion Card Lucid Universal MVP Support |
---|
Date First Available | October 03, 2012 |
---|
