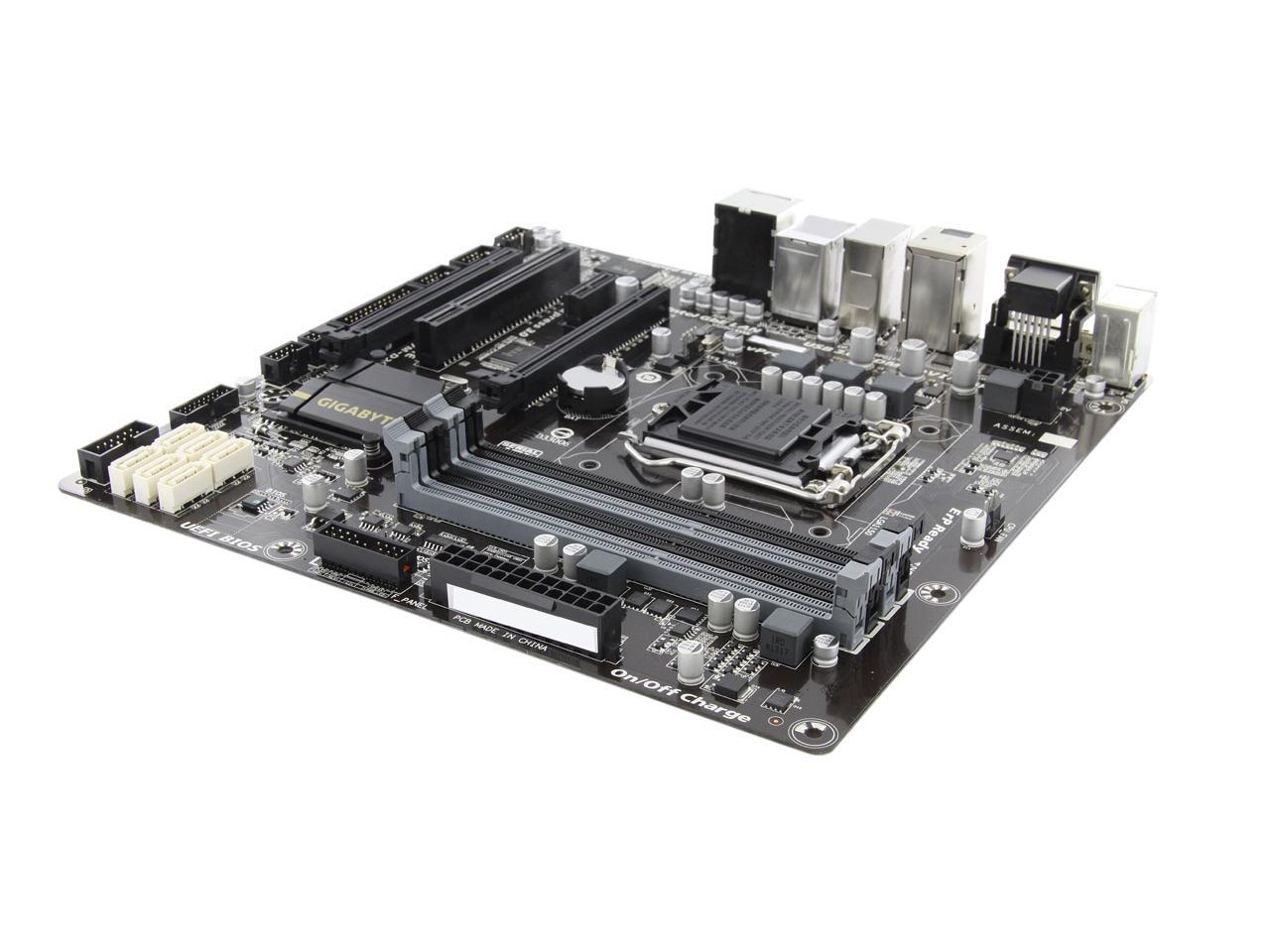

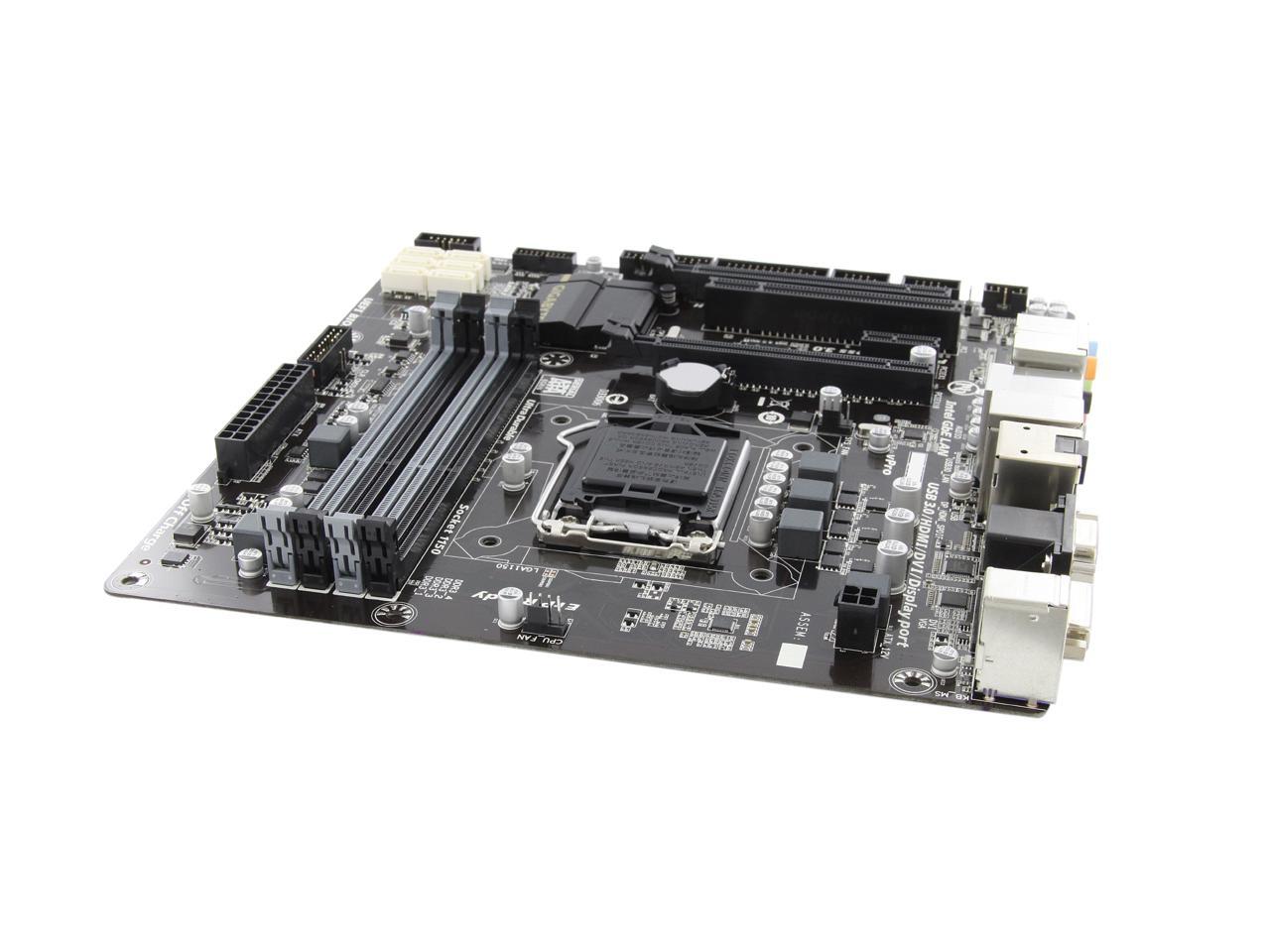

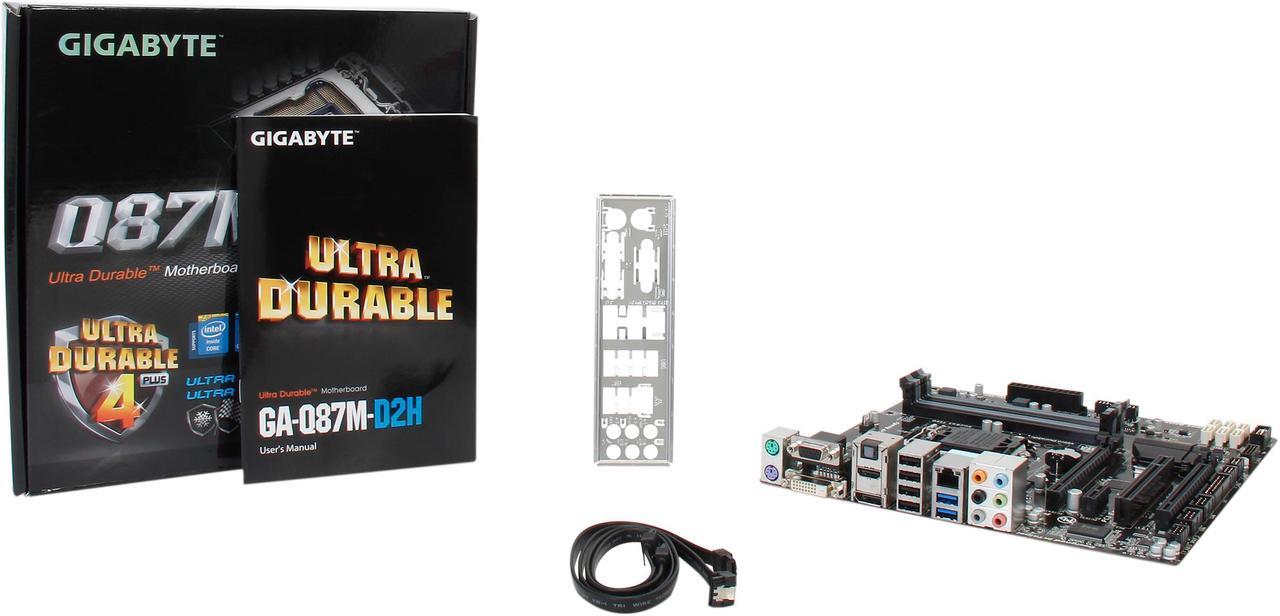

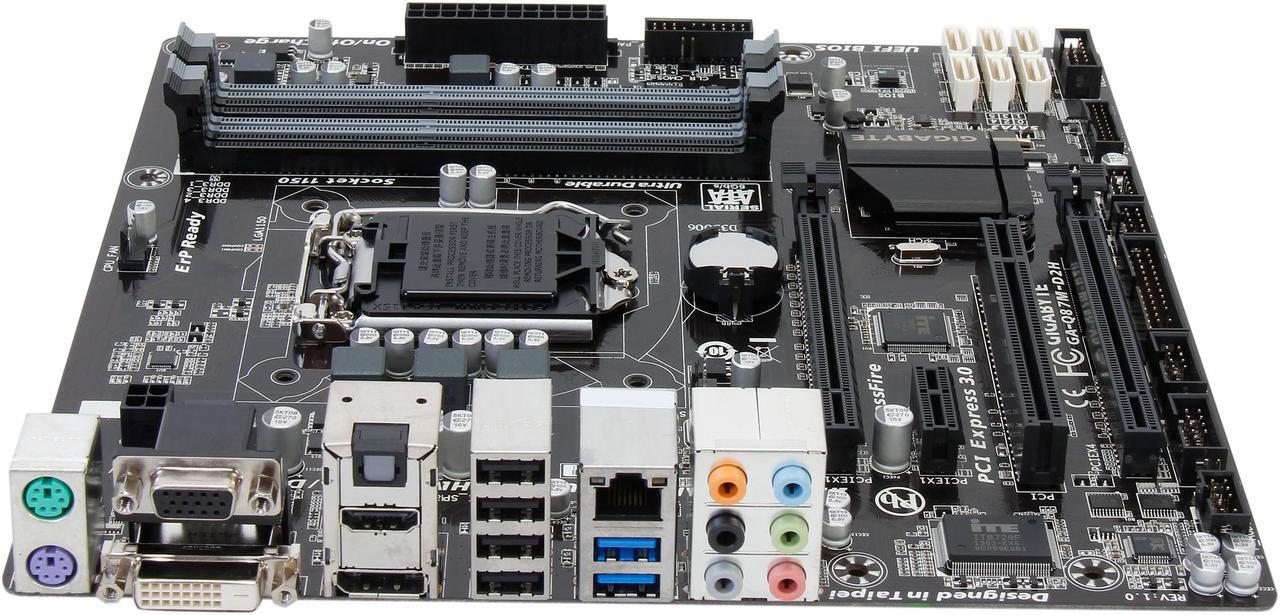

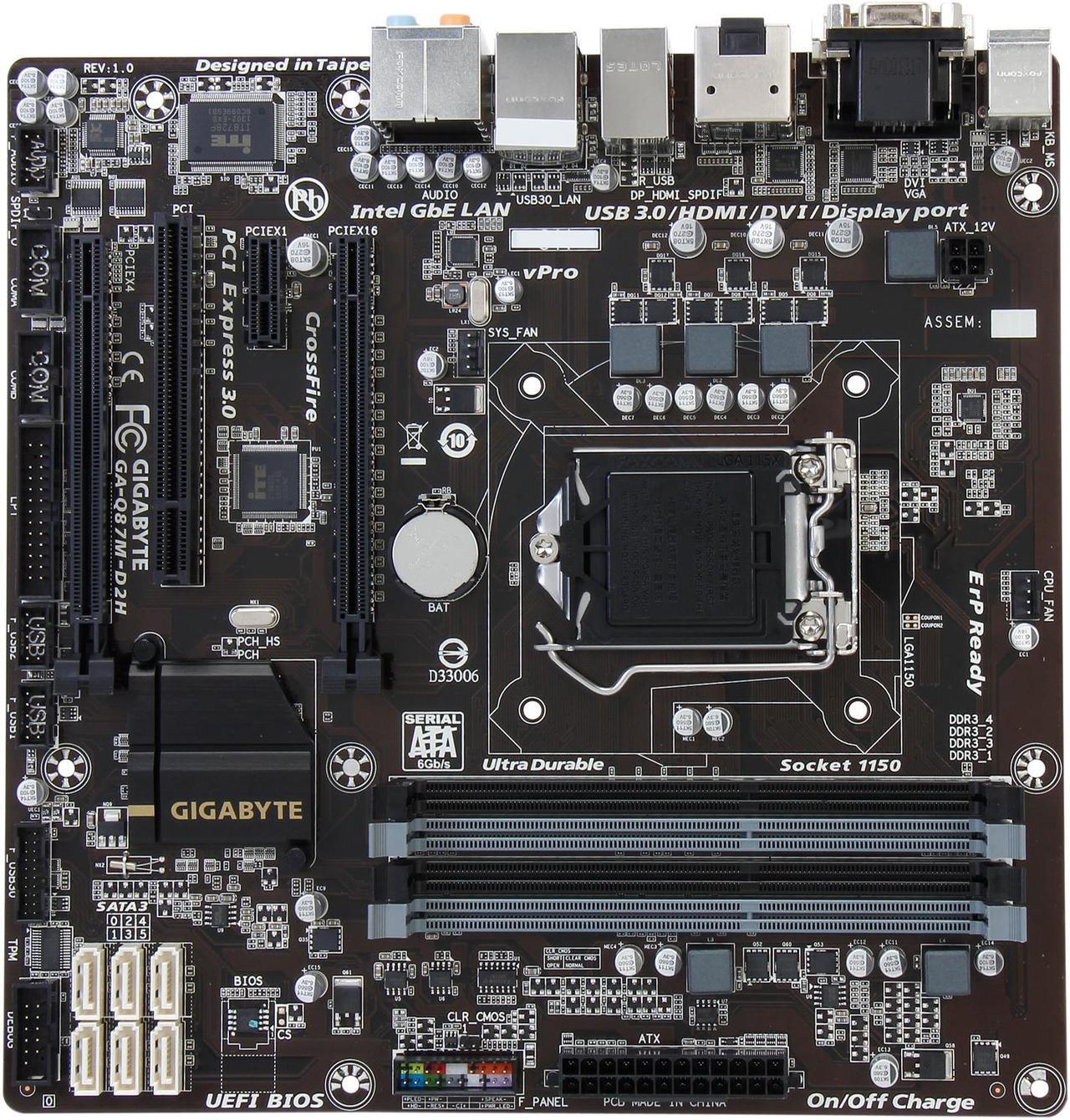

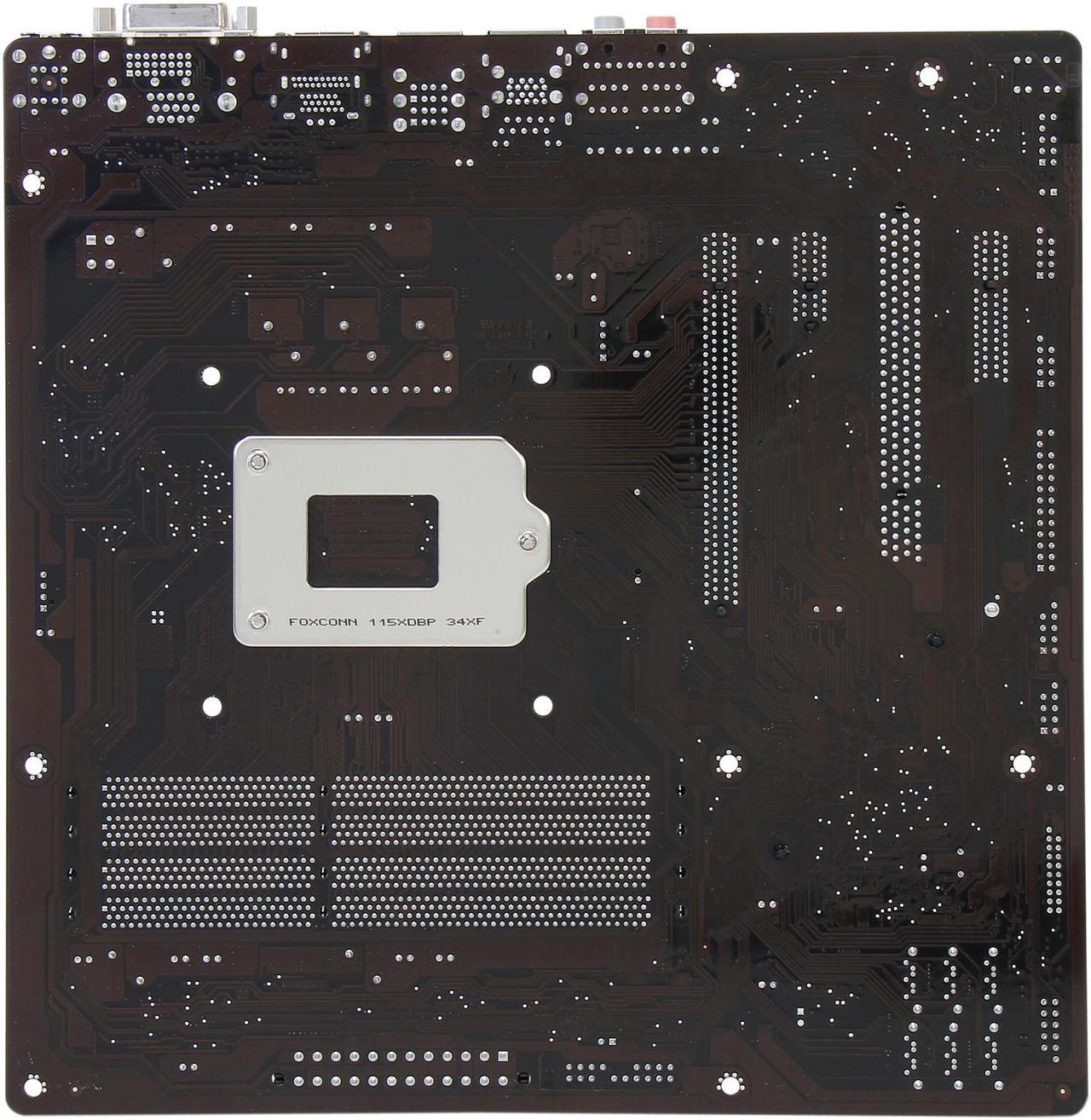

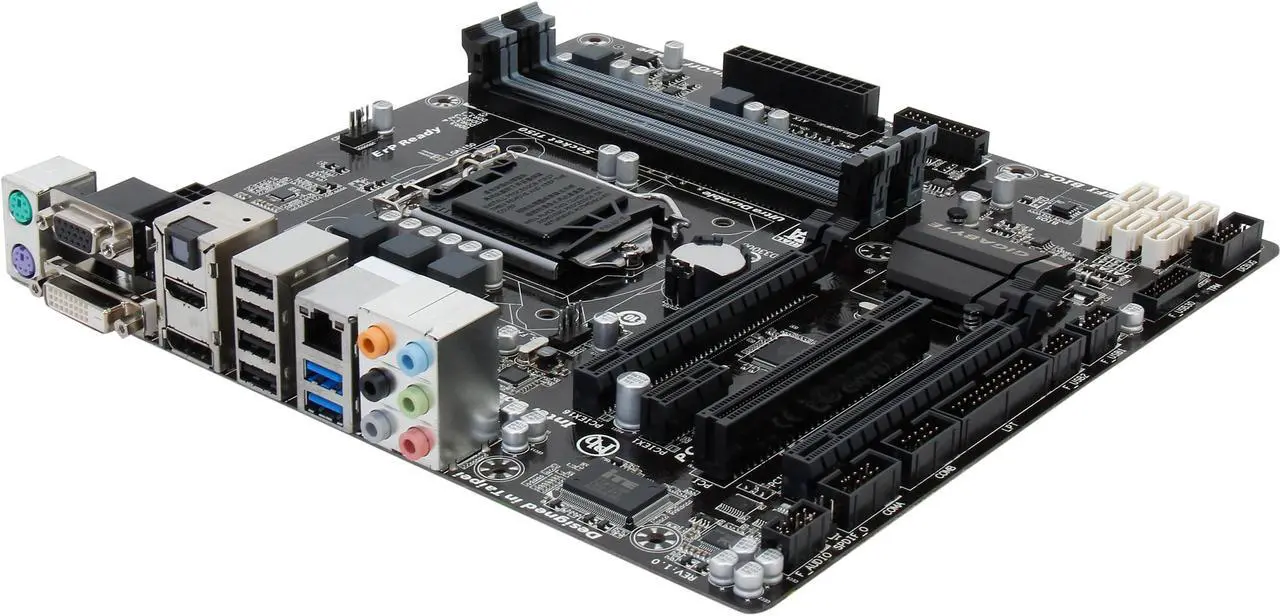

GIGABYTE GA-Q87M-D2H LGA 1150 Intel Q87 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard With UEFI BIOS
- Intel Q87
- 4th-Gen Intel Core i7 / i5/ i3 (LGA1150)
- DDR3 1600/1333
Specs
Reviews (3)
Learn more about the GIGABYTE GA-Q87M-D2H
| Brand | GIGABYTE |
|---|---|
| Model | GA-Q87M-D2H |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Core i7/Core i5/Core i3/Pentium/Celeron(LGA 1150) |
| Chipset | Intel Q87 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express 2.0 x16 | 1(running at x4 ) |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard port 1 x PS/2 mouse port |
|---|---|
| Video Ports | 1 x D-Sub 1 x DVI-D |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x serial port headers 1 x parallel port header 1 x debug card header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports 4th Generation Intel Core processors GIGABYTE Ultra Durable 4 Plus Technology GIGABYTE UEFI BIOS Multi-GPU Support GIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power) GIGABYTE On/Off Charge for USB devices Intel LAN with high ESD Protection DisplayPort 1.2, HDMI 1.4, DVI, D-SUB Intel Small Business Advantage Intel vPro technology Support for Xpress Install Support for APP Center *Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. EZ Setup USB Blocker Support for ON/OFF Charge |
|---|
| Date First Available | July 27, 2013 |
|---|
