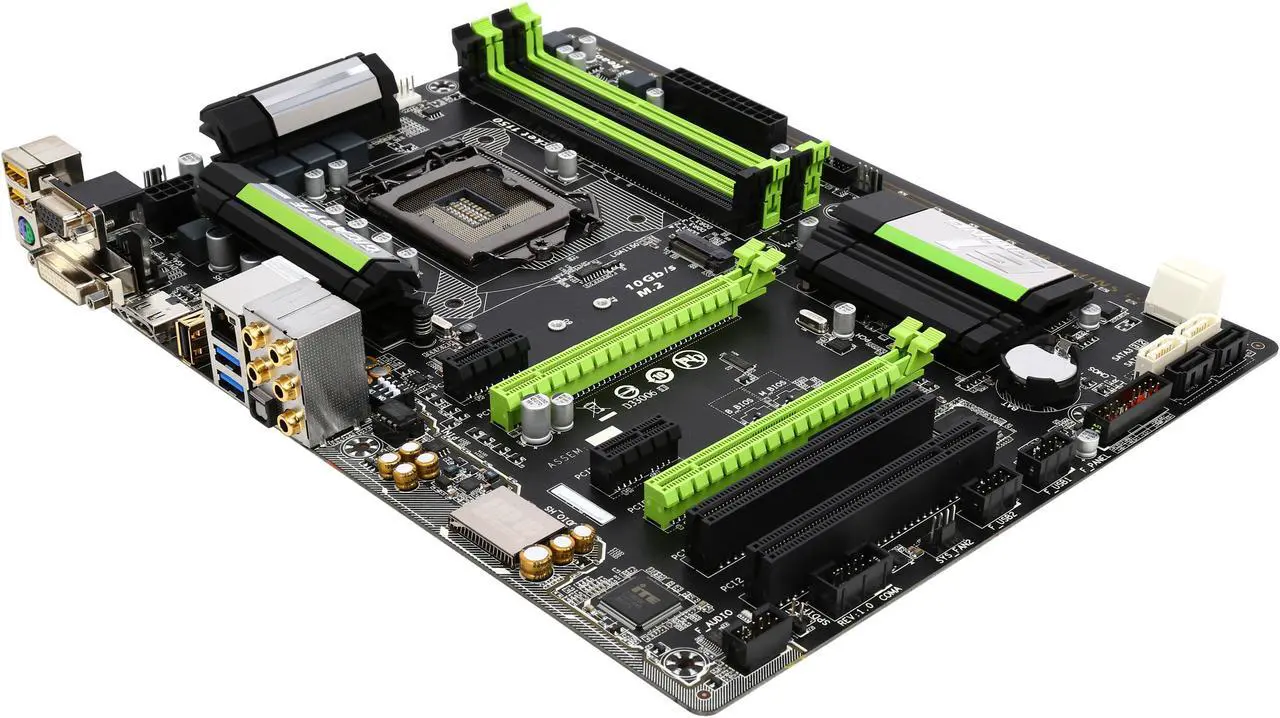

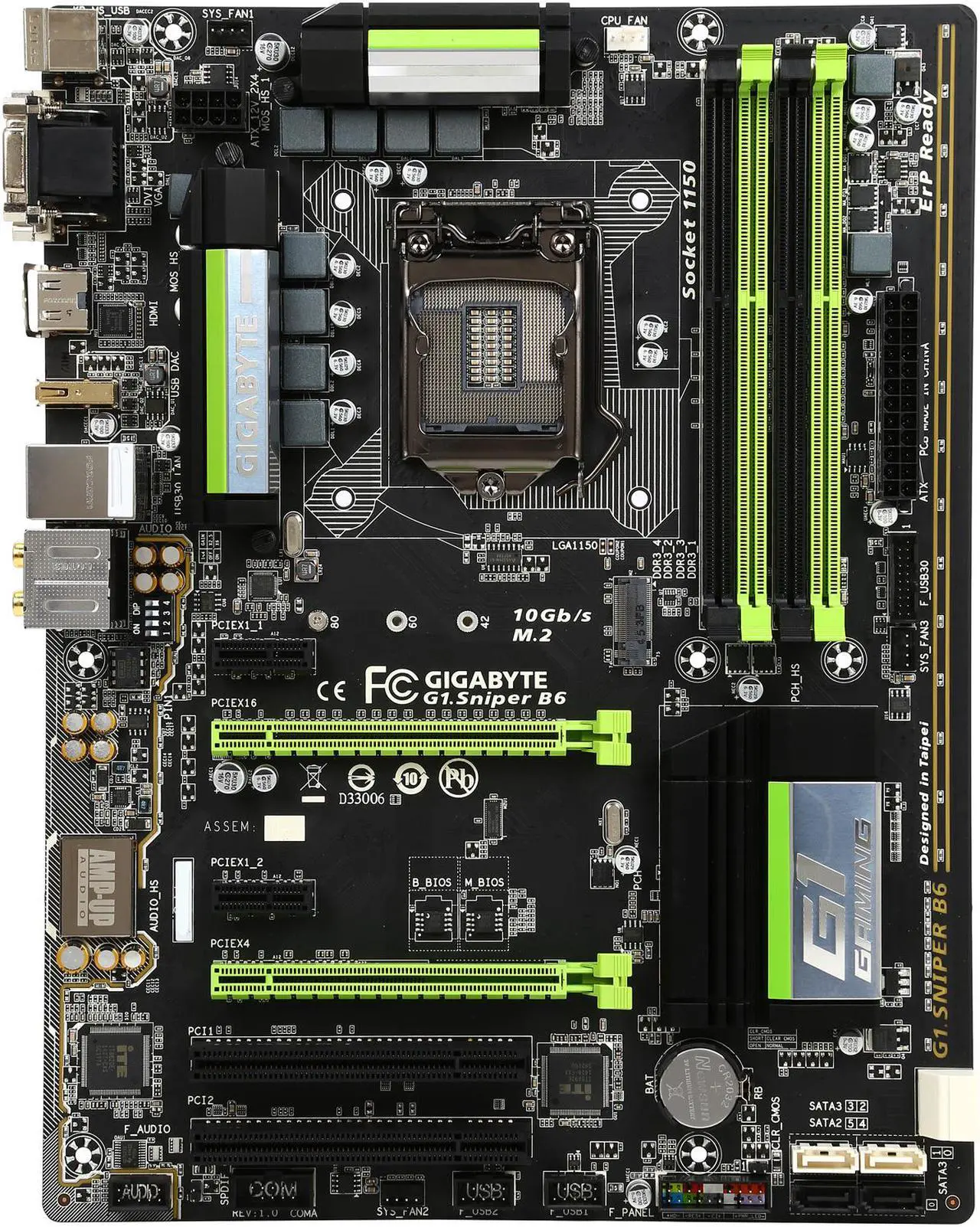

GIGABYTE GA-G1.SNIPER B6 LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard
- Intel B85
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
- DDR3 1600/1333
Specs
Reviews (20)
Learn more about the GIGABYTE GA-G1.SNIPER B6
| Brand | GIGABYTE |
|---|---|
| Model | GA-G1.SNIPER B6 |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150) |
| Chipset | Intel B85 |
|---|
| Onboard Video Chipset | Intel HD Graphics |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode. |
| PCI Express x1 | 2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s connectors (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.) |
|---|---|
| M.2 | 1 x M.2 Socket 3 connector * Support for M.2 PCIe SSDs only. * The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode. |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek GbE |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x D-Sub port 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0/2.0 ports |
| USB 1.1/2.0 | 3 x USB 2.0/1.1 ports |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper 1 x audio gain control switch |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.01" x 9.21" |
| Power Pin | 24 Pin |
| Features | Supports 4th Generation Intel Core processors GIGABYTE Ultra Durable 4 Plus Technology GIGABYTE Hybrid digital power engine GIGABYTE UEFI DualBIOS GIGABYTE AMP-UP Audio technology Nichicon High End Audio Capacitors M.2 for SSDs drives with up to 10 Gb/s data transfer Intel GbE LAN with CFOS internet accelerator software DAC-UP USB port Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier Audio Noise Guard with LED path lighting Multi-GPU Support Intel LAN with high ESD Protection |
|---|
| Date First Available | December 11, 2014 |
|---|
