Brand | GIGABYTE |
---|---|
Model | GA-H81M-S2H GSM (rev. 1.0) |
CPU Socket Type | LGA 1150 |
---|---|
CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) |
Chipset | Intel H81 |
---|
Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x DVI-D port, supporting a maximum resolution of 1920x1200 * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 * Support for HDMI 1.4a version. Maximum shared memory of 1 GB |
---|
Number of Memory Slots | 2x240pin |
---|---|
Memory Standard | DDR3 1600/1333 |
Maximum Memory Supported | 16GB |
Channel Supported | Dual Channel |
PCI Express 2.0 x16 | 1 x PCI Express x16 slot, running at x16 |
---|---|
PCI Express x16 | 1 x PCI Express x16 |
PCI Express x1 | 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) |
Serial ATA (SATA) | 2 x SATA 6Gb/s connectors (SATA3 0/1) |
---|
Audio Chipset | Realtek ALC887 |
---|---|
Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN Chipset | Realtek GbE LAN chip |
---|---|
Max LAN Speed | 1Gbps |

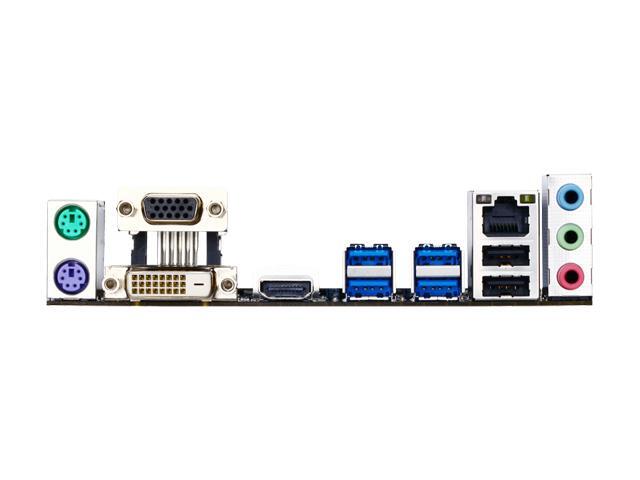

Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
---|---|
PS/2 | 1 x PS/2 mouse port 1 x PS/2 Keyboard port |
Video Ports | 1 x D-Sub port 1 x DVI-D port |
HDMI | 1 x HDMI |
RJ45 | 1 x RJ45 |
USB 3.0 | 4 x USB 3.0/2.0 ports |
USB 1.1/2.0 | 2 x USB 2.0/1.1 ports |
Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
Onboard USB | 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers |
---|---|
Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 8.90" x 6.85" |
Power Pin | 24 Pin |
Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 32 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for Q-Flash Support for Xpress Install Support for APP Center - * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. - @BIOS - EasyTune - EZ Setup - USB Blocker Support for ON/OFF Charge Bundle Software: Norton Internet Security (OEM version) Operating System: Support for Windows 8.1/8/7 |
---|
Date First Available | September 09, 2015 |
---|
