Question 1

In the specs it says:
"1 x M.2 Socket 3 connector on the back of the motherboard"

I don't see it in the pictures, is it the same port used by the wifi module?

Accepted Answer

If you look at the photo of the motherboard underside you'll see the M.2 socket 3 connector to the right of the CPU bracket.

Question 2

I this motherboard compatible with a i5  6400 and i5 6500?

Accepted Answer

Yes - it uses the same socket (LGA 1151) as those two CPUs.

Question 3

Can you overclock a k i7 with this board?

Accepted Answer

No. H170 chipset cannot be overclocked. Buy a board with a "Z170" chipset instead.

Question 4

Hey, everybody! I'm a little confused about the onboard graphics. With a decent amount of memory installed, would the native graphics be enough to play more complex games like DOOM or Fallout 4, or does it just mean the board is capable of supporting a graphics card that can? Looking at this board for a Steam Machine build. Thanks!

Accepted Answer

Motherboards don't have graphics built in to them they can only provide the connections (IO) for graphics. You need a processor that has integrated graphics to use the motherboard's display IO. That said, integrated graphics (like the type that come on some CPUs) would not be sufficient for DOOM or Fallout 4, you'll want a discrete graphics card for that like a GTX 1060.

Question 5

Does anyone know which Intel wireless module they're using in this board? Planning on building a DIY router with this and need to check for linux driver compatibility.

Accepted Answer

Just checked mine and it looks like it's an Intel AC 8260.  Tried to include a link to Intel's ARK page, but Newegg wouldn't allow me.  A quick Google ought to get you there.

Question 6

Is the M.2 port on the back of the motherboard a type B or type M? I want to get an M.2 SSD to use with this port. Will doing so use the drive at the full x4 PCI lanes? I will have a x16 graphics card plugged in simultaneously.

Accepted Answer

it seems like it will work as either. I do strongly recommend you choose one off the compatibility sheet for it. Don't forget two of the sata ports will be disabled if using the m.2 slot. I think its the first two.

Question 7

Can I boot into windows using a M.2 SSD? Or does M.2 become detectable only after the OS has loaded? I ask because other motherboards with M.2 ports seem to have this issue.

Accepted Answer

I have the Samsung 950 Pro as my boot for Windows 8.1 Pro.   I used a bootable USB drive and insuring that CSM was disabled in MB bios to install on to the drive (creating a GPT partition).  I also removed my video card to avoid triggering CSM.

Question 8

Does this motherboard throttle a 6700K when under load like it was reported with the z170n-wifi?

Accepted Answer

I shouldn't throttle as long as the cpu is not getting too hot. Never heard of a board throttling a cpu unless it was too hot.

Question 9

what kind of memory does this mb use?

Accepted Answer

DDR4. I purchased for this mobo G.Skill Ripjaws V Series 16GB (2 x 8GB) DDR4-2400

Question 10

What power supply do you recommend for this motherboard?

Accepted Answer

Corsair CX 550m

Brand	GIGABYTE
Model	GA-H170N-WIFI (rev. 1.0)

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Other Slots	1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Serial ATA (SATA)	6 x SATA 6Gb/s connectors
SATA Express	2 x SATA Express connectors
M.2	1 x M.2 Socket 3 connector on the back of the motherboard
SATA RAID	0/1/5/10

Meet Your Seller

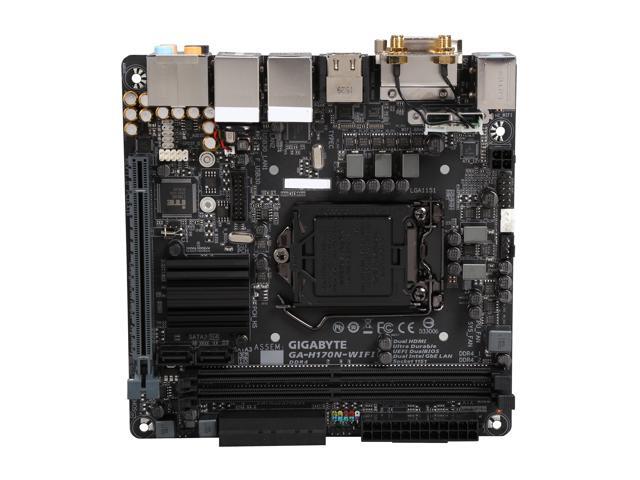

GIGABYTE GA-H170N-WIFI (rev. 1.0) LGA 1151 Intel H170 HDMI USB 3.0 Mini ITX Intel Motherboard

Used - Very Good

Learn more about the GIGABYTE GA-H170N-WIFI (rev. 1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	Realtek ALC1150
Audio Channels	2/4/5.1/7.1-channel

LAN Chipset	Intel GbE LAN
Second LAN Chipset	Intel GbE LAN
Max LAN Speed	2 x 1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth	BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D port
HDMI	2 x HDMI
RJ45	2 x RJ-45 ports
USB 3.0	4 x USB 3.0/2.0
USB Type-C	1 x USB Type-C port, with USB 3.0 support
S/PDIF Out	1 x Optical
Audio Ports	5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Antenna Connectors	2 x SMA antenna connectors (2T2R)

Onboard USB	1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x S/PDIF Out header 1 x Speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	24 Pin
